119

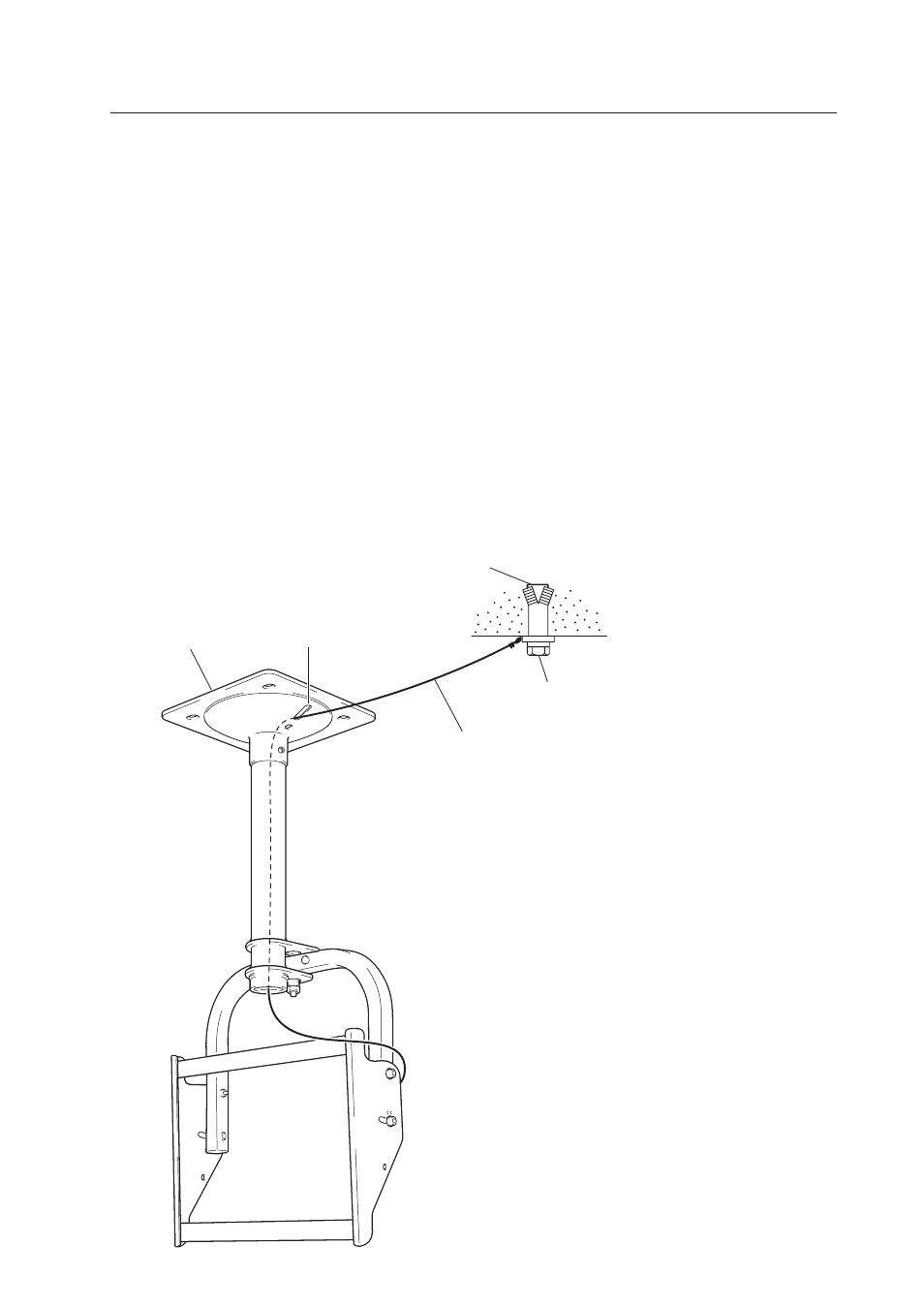

Ceiling Mount Unit: PDK-5012
Ceiling suspension hardware
Anchor
Foundation ceiling
Safety wire
Bolt
(NOTE) Safety wires serve as important backups in keeping the unit securely
mounted.
1 Firmly attach the safety wire to the Plasma Display attachment
hole and pass it through the supporting column.
2 Push the safety wire out of the hole on the ceiling mounting
hardware then anchor it firmly to the foundation ceiling with a bolt.
4.8.3 Installing the mounting hardware
1) Preparations
You will need the following tools. Make sure you have them at hand before beginning work.
• Phillips Head Screwdriver
• Hexagonal wrench (subtense 5 mm, for M6 bolts)
• Hexagonal wrench (subtense 6 mm, for M8 bolts)
You'll also need tools for ceiling work.
2) Install the mounting hardware
Select the installation site. Apply the supplied pattern to the ceiling, drill the holes, then mount the ceiling suspension
hardware. The appropriate types of screws and other display/mounting hardware depends upon the strength and
composition of the particular ceiling.
• Firmly tight all bolts.
• After attaching the mounting hardware but before mounting the Plasma Display, confirm the strength of the
mount portion of the ceiling.
• For additional safety, use the holes in the ceiling suspension hardware as shown.
[Use parts strong enough to support the weight of the display]
Hole
[507CMX : 427CMX]
