Pioneer PDP 427CMX - Manual (Page 34)

34

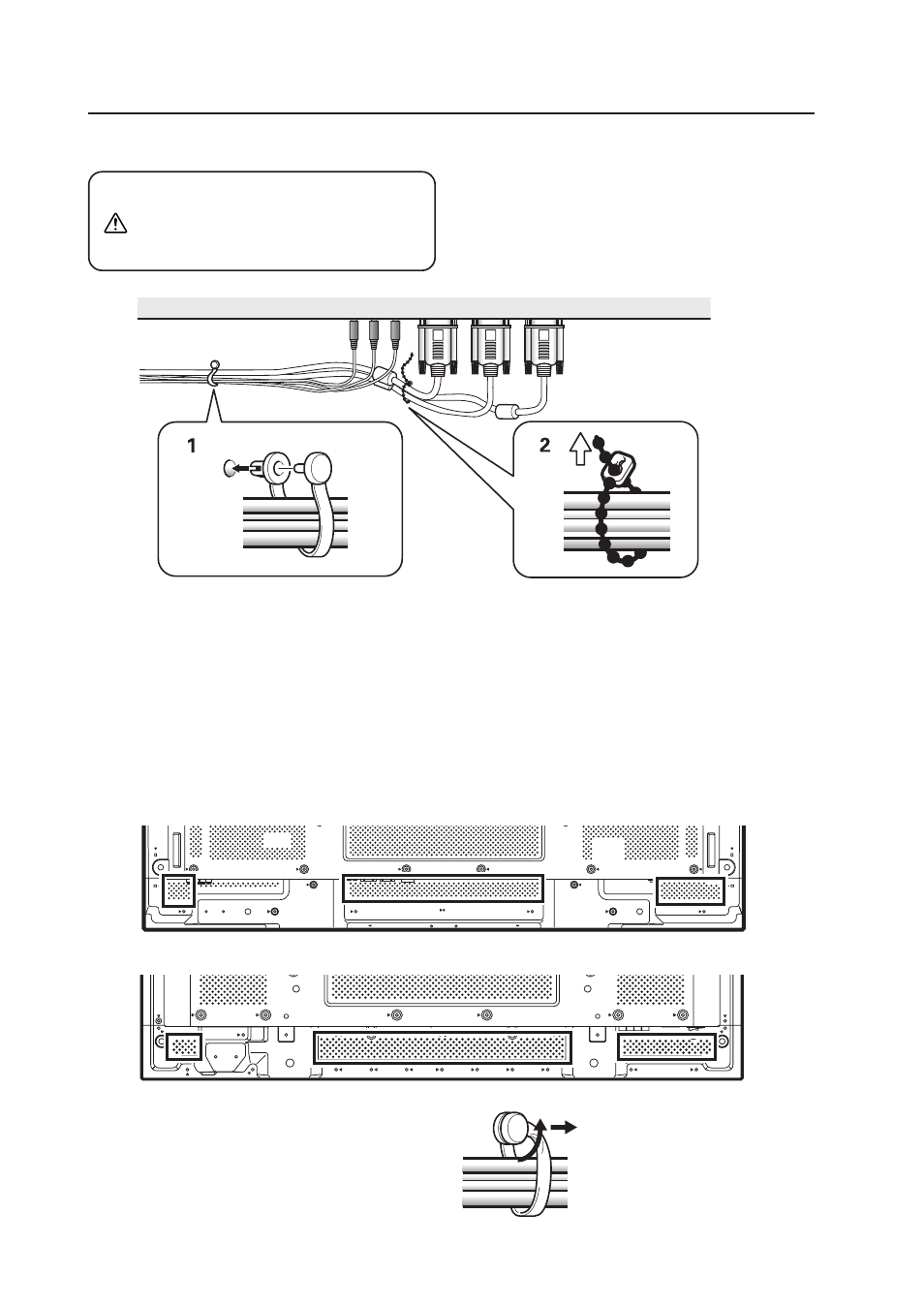

4) Arranging and securing cables with speed clamps and bead bands
Fasten cables using the supplied speed clamps.
Once speed clamps are fastened, they are
not easily removed.
Installation Procedures
* As viewed from the rear of the display.
1 2
2. Bunch separated cables together and secure them
with the provided bead bands.
Do not allow excessive stress to be placed on the
ends of cables.
Note
Cables can be routed to the right or left.
1. Organize cables together using the provided
speed clamps.
Insert 1 into an appropriate hole on the rear of the
unit then snap 2 into the back of 1 to fix the clamp.
Speed clamps are designed to be difficult to undo
once in place. Please attach carefully.
To attach the speed clamps to the main unit
Use the holes marked with the & border shown below as
needed.
To remove speed clamps
Using pliers, twist the clamp 90° and pull outward.
In some cases, the clamp may have deteriorated over
time. Removed speed clamps may not be re-usable.
* As viewed from the rear of the display. (PDP-427CMX)
* As viewed from the rear of the display. (PDP-507CMX)
[507CMX : 427CMX]
