PPG Tutorial

122

PT Program Generator (PPG) v5.0

The Menu: Confirmation Node

Complete the following steps to set up this node:

1. Double-click on the

Menu: Confirmation

node to open its dialog, and

enter the text shown in

Figure 95

. Leave the second line blank.

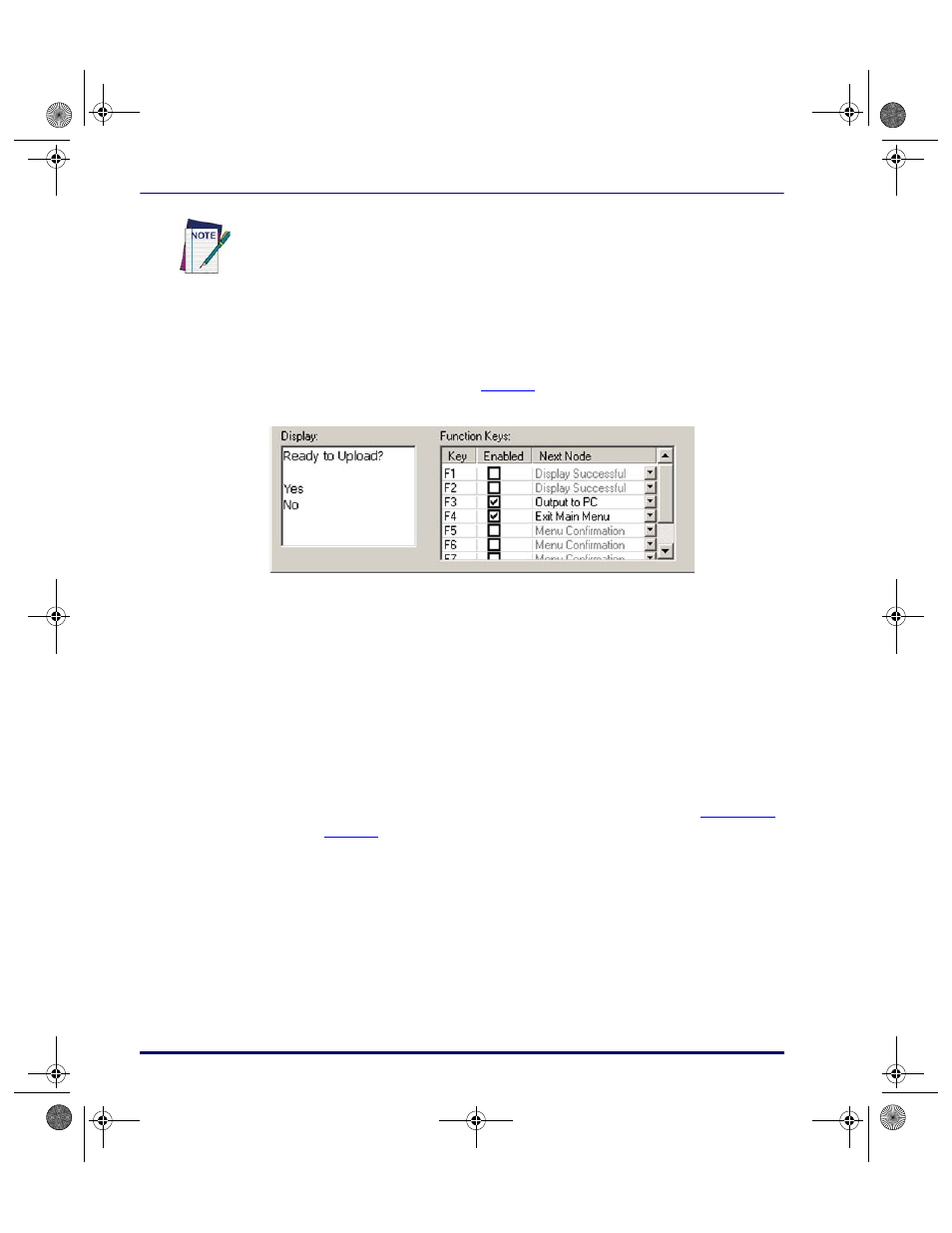

Figure 95. The Menu: Confirmation Dialog

2. Enable the

checkbox. Select

Output to PC in the

Next Node

column to begin data output when the user presses

3. Select the

checkbox, and select

Exit Main Menu from the

pull-down list. This will redisplay the

Main Menu

when the user

presses

4. Press

to save your settings and exit the dialog box.

The Output: to PC Node

Complete the following steps to set up this node:

1. Select the

Output: to PC

node to open its dialog (refer to

Figure 96 on

page 123

2. On the

Information to Output

tab, select the

Serial

setting for

Output

To Device

. This will send the output to the serial port of the portable,

which should be connected to the serial port of the PC.

When creating the Links from the

Output: to PC

node, create the Link to the

Output:

Error Beep

node first. This Link will be selected for the

Next Node/On Error

option.
