1. Introduction and Installation
13 For assistance, please contact an authorized Panasonic dealer.
L Do not touch or scratch the accumulator unit
(
n).

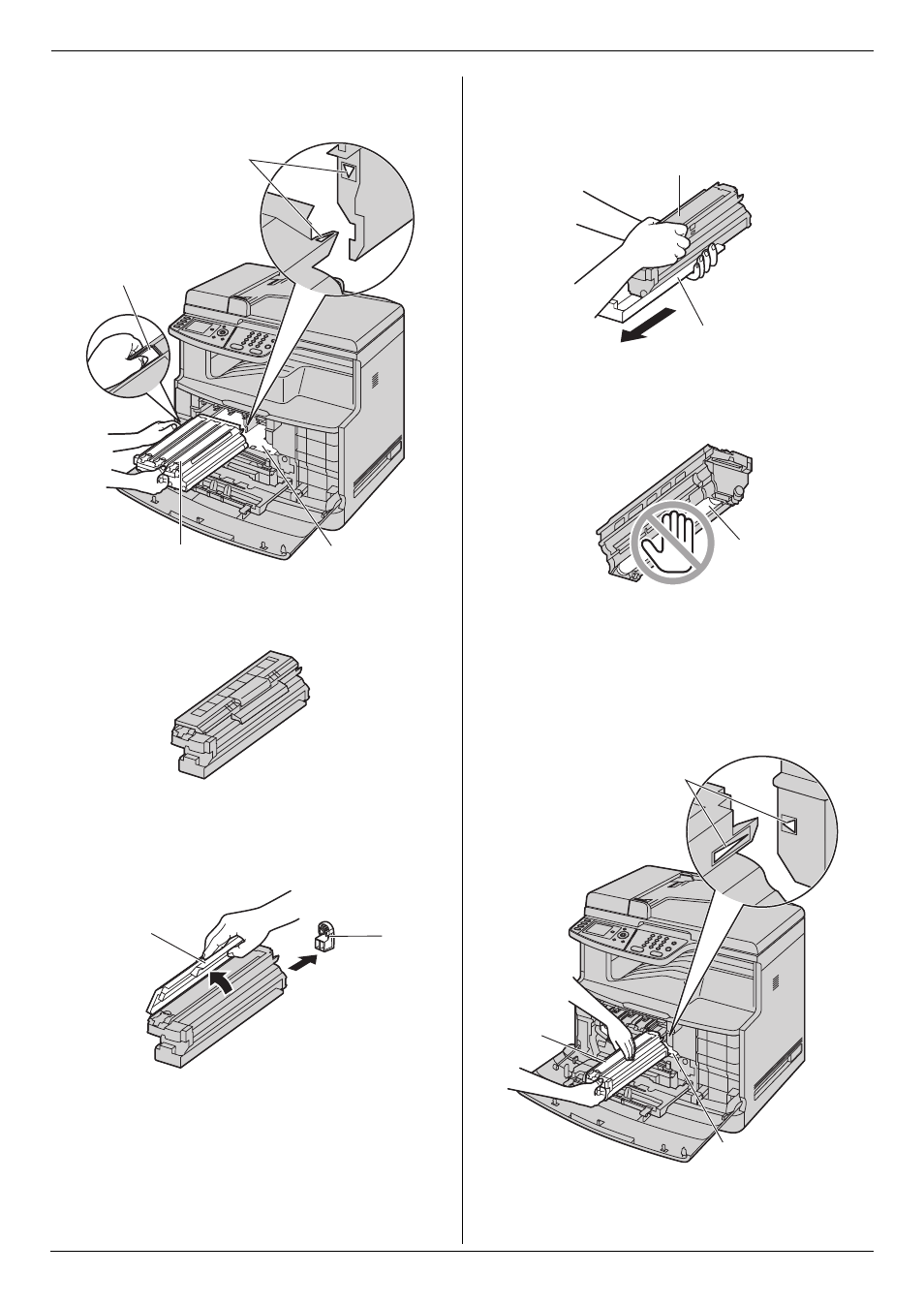

9 Remove the monochrome drum cartridge from the
protection bag.
L Remove the shipping tape.
10 Detach the protective cap (
o), then detach the
upper seal cover by holding the tab (
p).
11 Firmly grip the monochrome drum cartridge (
q) and
remove the protective tray (
r) by sliding it toward
you.
L Do not touch or scratch the green drum surface
(
s) at the bottom of the drum cartridge.
12 Insert the monochrome drum cartridge (
t) into the
right side of the unit.
L Make sure that the arrows (
u) match to insert
the drum cartridge correctly.
L Do not touch or scratch the accumulator unit
(
v).
l
m
n
k
o
p
r
q
s
u
v
t
