1. Introduction and Installation
12 For assistance, please contact an authorized Panasonic dealer.

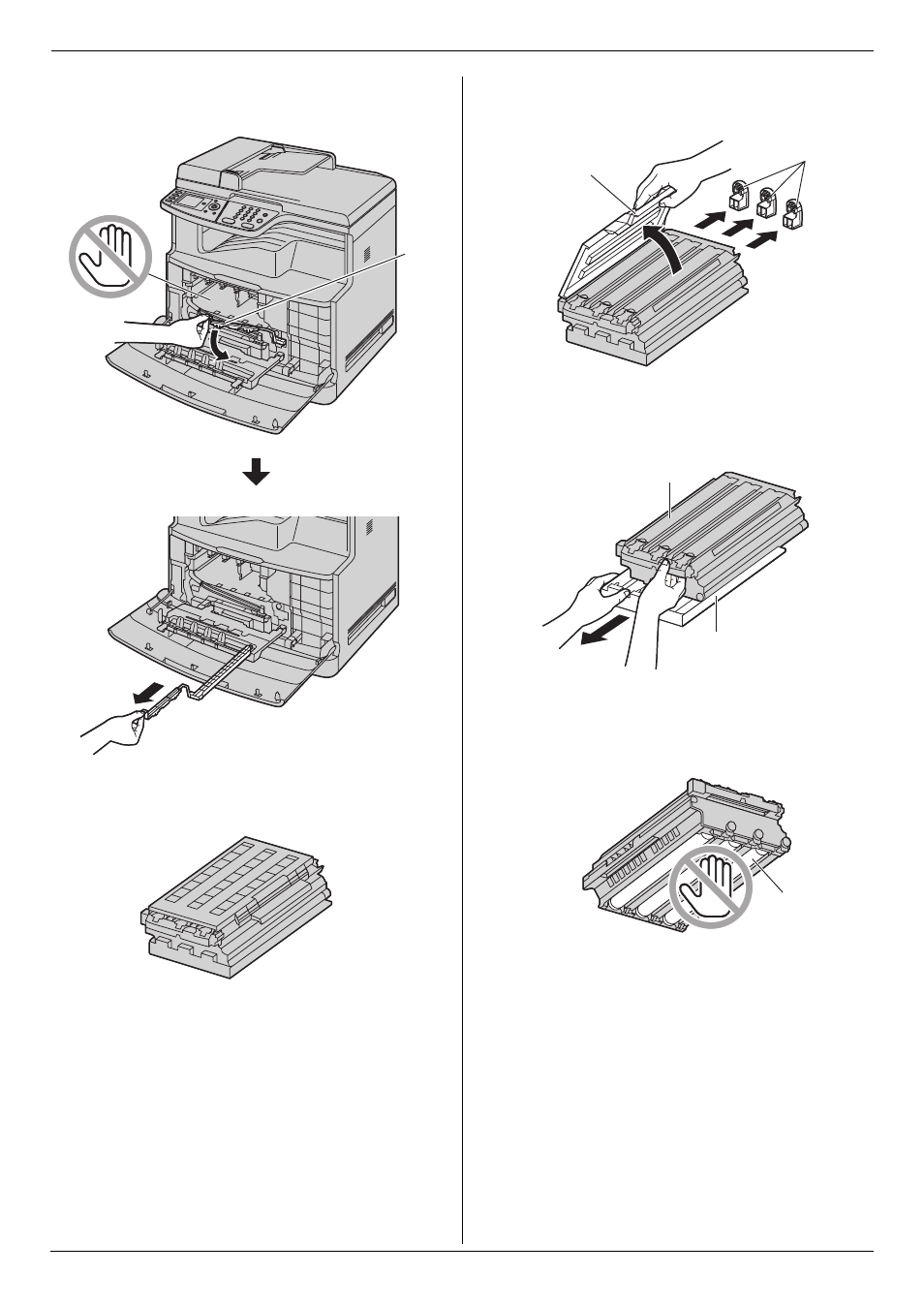

4 Remove the orange protector (
5) by pulling it
toward you, then pull it completely out from the unit.
5 Remove the color drum cartridge from the protection
bag.
L Remove the shipping tape.
L Do not remove the monochrome drum cartridge
from the protection bag before installing the color
drum cartridge in step 8.
L When holding the color drum cartridge, be sure
to handle it over a table to prevent damage
caused by dropping it from a high position.
6 Detach the protective caps (
6), then detach the
upper seal cover by holding the tab (
7).
7 Firmly grip the color drum cartridge (
8) and remove
the protective tray (
9) by sliding it toward you.
L Do not touch or scratch the green drum surfaces
(
j) at the bottom of the drum cartridge.
8 Hold the green lever (
k) of the color drum cartridge
( l) using your left hand, and hold the front part
using your right hand. Then insert it into the left side
of the unit.
L Make sure that the arrows ( m) match to insert
the drum cartridge correctly.
5
6
7
8
9
j
