Step 3 Connecting the IR Blaster, continued

22

Connections

Step 4 Connecting the Telephone Cord

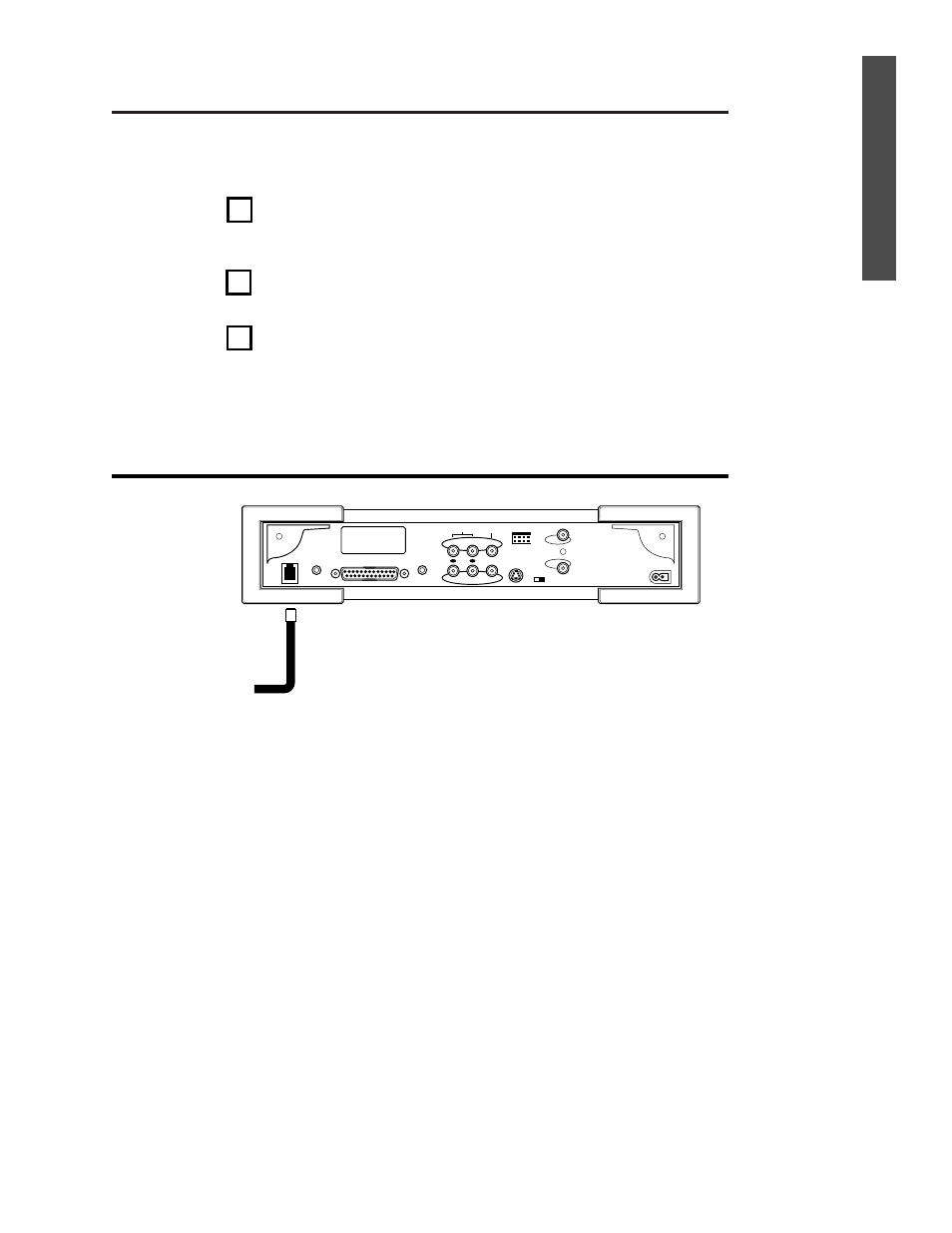

Connect the telephone cord to the Phone jack on the back of the Internet
Terminal and to your home’s telephone jack.
Use a telephone jack that isn’t connected to a telephone. If you have only one
telephone jack, plug the T-splitter into the wall telephone jack, then plug your
phone into one side and the telephone cord for the Internet Terminal into
the other side of the T-splitter.

Go to step 5 - Connecting the webeye.

AC Input

In

Out

Cable

Channel
3 4

S-Video

w e b

e y e

Out

In

R

L

Audio

Video

Printer Port

Phone

Mic

IR Blaster

After you have connected the Internet Terminal and signed up with
the WebTV Network, you must set up your IR Blaster to work with
your equipment.
Simple instructions are available after you sign up with the
WebTV Network. Follow these steps to access the instructions.

Once you are connected to the WebTV Network, press the VIEW button
until the TV Home page appears on the screen.

Use the Arrow buttons to select Settings. Press the GO button.

Use the Arrow buttons to select Hooking up. Press the GO button. You’ll be
guided through a few screens to complete the setup of your VCR, Cable Box,
or Satellite Box.
