Step 1 Connecting the Internet Terminal to the TV
15
Connections
Connections

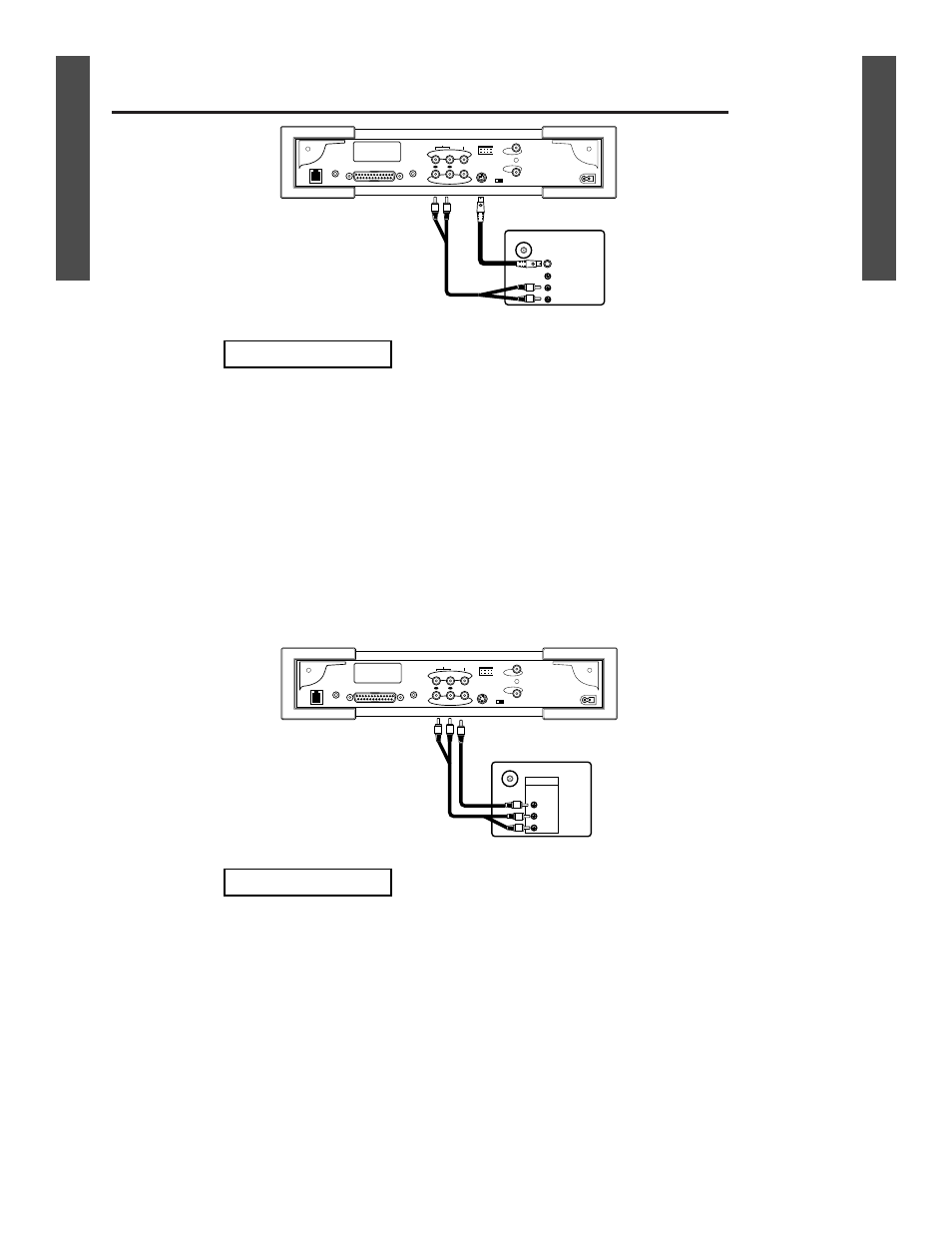

If your TV has an S-Video jack, use this option for the best picture quality. If you
want to watch TV with the Internet Terminal turned off, you also should connect a
Coaxial Cable as shown in Option C.
Connect an S-Video cable to the S-Video Out jack on your Internet Terminal
and to the S-Video In jack on your TV.
Set the TV to the S-Video In channel. (Refer to the TV owner’s manual.)
Connect the set of audio cables (red and white) to the Audio Out R(ight) and
L(eft) jacks on the back of the Internet Terminal and to the Audio In jacks on
your TV, matching colors. If there is only one audio jack, connect the white
plugs.
Go to step 2 - Connecting the Antenna/Cable TV Signal,
a Cable Box (or Satellite Box), or a VCR.
If the TV has a video jack (yellow RCA type), use this option. If you want to watch
TV with the Internet Terminal turned off, you also should connect a Coaxial Cable as
shown in Option C.
Connect the video cable (yellow) to the Video Out jack on the back of the
Internet Terminal and to the Video In jack on the TV.
Set the TV to the Auxiliary In or Video In channel. (Refer to the TV owner’s
manual.)
Connect the set of audio cables (red and white) to the Audio Out R(ight) and
L(eft) jacks on the back of the Internet Terminal and to the Audio In jacks on
your TV, matching colors. If there is only one audio jack, connect the white
plugs.
Go to step 2 - Connecting the Antenna/Cable TV Signal,
a Cable Box (or Satellite Box), or a VCR.
VHF/UHF
S-VIDEO
VIDEO
AUDIO
IN
AC Input
In
Out
Cable
Channel
3 4
S-Video
w e b e y e
Out
In
R L
Audio Video
Printer Port Phone
R L
L
R
L
Mic IR Blaster
S-Video cable
Audio cables
Back of TV
example only
OPTION A
OPTION B
R L
L
VHF/UHF
AUDIO
VIDEO
IN
R
L
AC Input
In
Out
Cable
Channel
3 4
S-Video
w e b e y e
Out
In
R L
Audio Video
Printer Port Phone Mic IR Blaster
Video cable
Audio cables
Back of TV
example only
