11

AC Input

In

Out

Cable

Channel
3 4

S-Video

w e b

e y e

Out

In

R

L

Audio

Video

Mic

IR Blaster

Printer Port

Phone

7

8

6

9

1

2

3

4

5

11

12

14

10

13

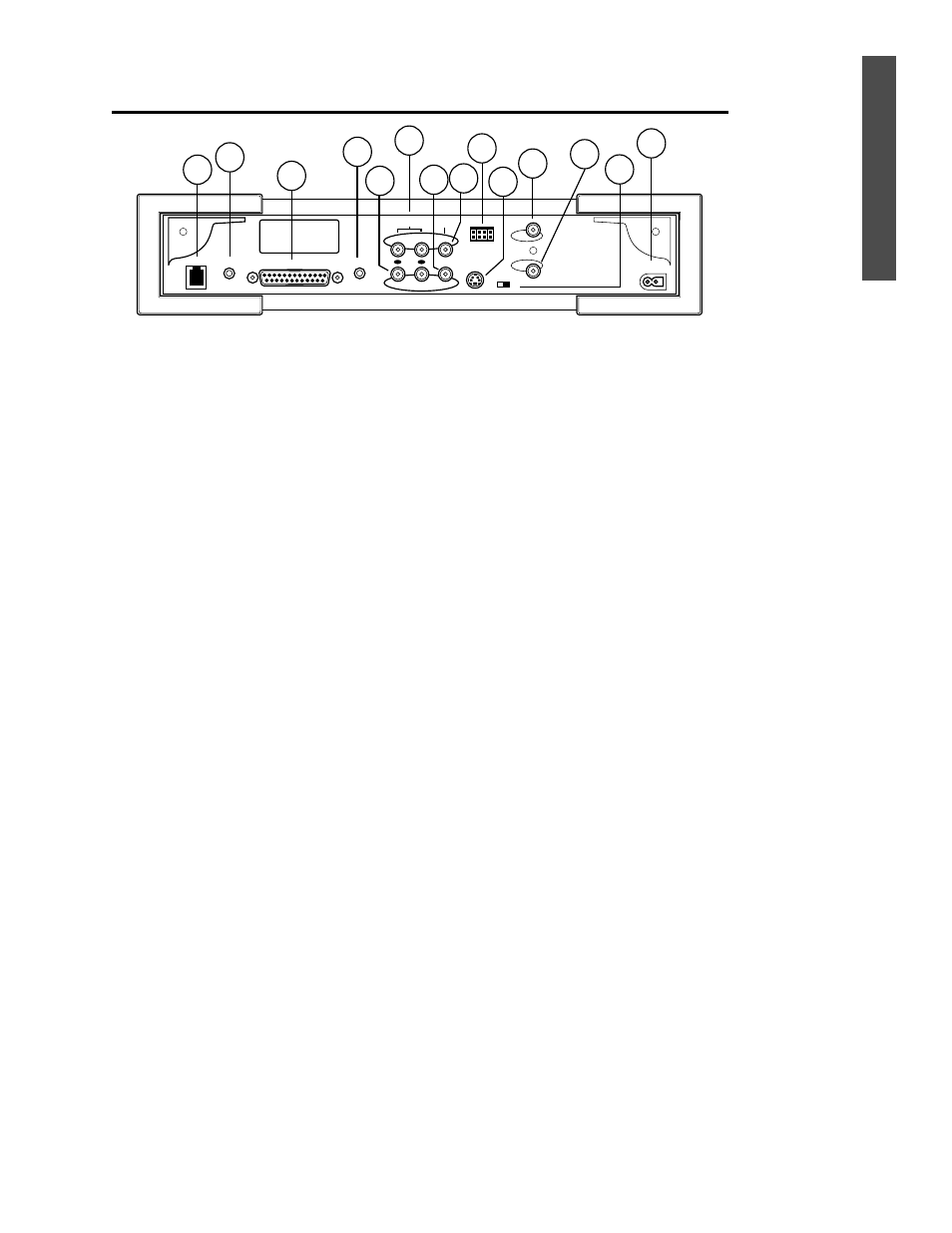

Getting Started

1 Phone jack

Connect one end of the telephone cord to this jack. Connect the other end of the cord to
the wall telephone jack.

2 IR Blaster jack

Connect the IR Blaster’s cable here. This will allow you to use the Internet Terminal’s
remote control to operate a Cable Box, Satellite Box, or VCR.

3 Printer Port

Connect a parallel printer cable to this jack and to a printer (optional).

4 Mic(rophone) jack

Connect a microphone here. Use a microphone that has a 1/8” connector. A suitable
microphone is available from Philips Consumer Electronics. To order, see page 44. Refer to
the on-screen instructions (see page 8) for more information on microphone use. To send
sound with an email, see page 39.

5 Audio (right and left) Out jacks

Connect the set of red and white audio cables (provided) to these jacks and to the Audio In
jacks on your TV.

6 Audio (right and left) In jacks

You may connect a set of red and white audio cables (additional cables not provided) to
these jacks and to the Audio Out jacks on your accessory equipment (such as a VCR, if
applicable).

7 Video Out jack

Connect the yellow video cable (provided) to this jack and to the Video In jack of the TV.

8 Video In jack

You may connect a yellow video cable (additional cable not provided) to this jack and to the
Video Out jack on your accessory equipment (such as a VCR).

9 webeye jack

Connect the cable of the webeye here.

10 S-Video jack

Connect an S-Video cable to this jack and to the S-Video In jack on your TV.

11 Cable In jack

Connect the antenna or the Cable TV signal to this jack.

12 Cable Out jack

If your TV does not have Audio/Video jacks, you may connect a coaxial cable or an RF
adapter (not supplied) here to connect the Internet Terminal to the TV.

13 Channel 3/4 switch

When you use a coaxial cable to connect the Internet Terminal to the TV, set this switch to
3 or 4 (your TV Auxiliary In channel). Set the TV to the same channel. (If you experience a
lot of interference once you’re connected to the WebTV Network, adjust this switch and
change the TV channel.)

14 AC Input jack

Connect the AC (120V) power cord here. Plug the other end into the wall outlet.

Back Panel
