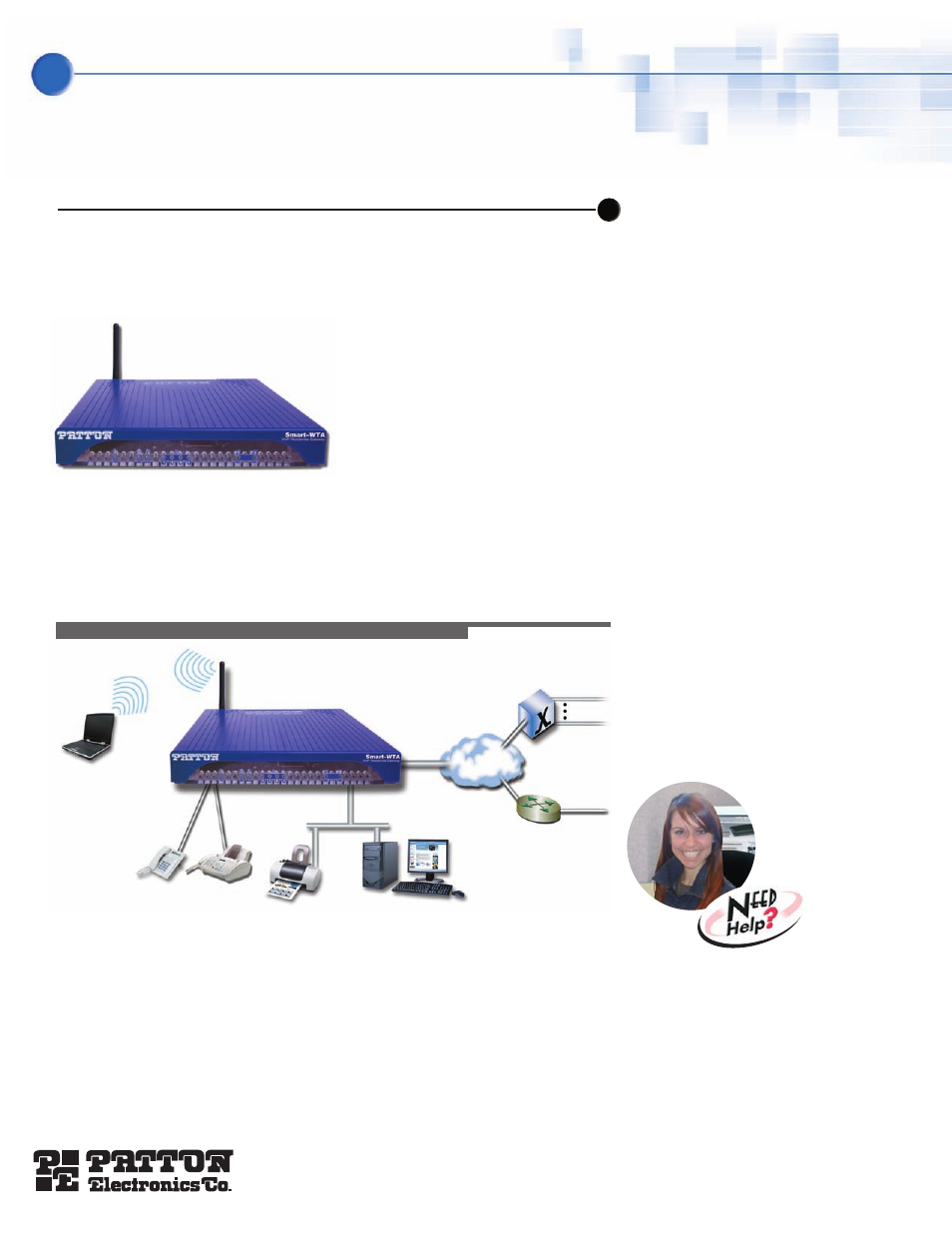

Remote Office/Branch Office Voice Extension and Access diagram
To WAN &
Internet
Services WWW/IP
Network
VoIP Provider
Data Provider
To WWW
PSTN
Laptop computer
1–2 FXS Extensions
Phone Fax
Printer
Computer
NETWORK ACCESS— VoIP TELEPHONY
RESIDENTIAL ATAs
18
visit us online
www.patton.com
FAST Delivery From Your AUTHORIZED DISTRIBUTOR!
F E A T U R E S & B E N E F I T S
✔ 2-call voice & fax FXS ports, 4-port LAN Ethernet switch,
1-port WAN Ethernet and integrated 802.11g WiFi
✔ SIP signaling—Deploy into any multimedia, interactive,
or voice network with softswitch certified and tested call
& session signaling.
✔ Integrated firewall/statefull inspection firewall, denial-of-
service protection and NAT/DMZ. Wireless security offers
WEP, WPA, WPA2, and 802.1x wireless security support.
✔ Complete TriplePlay multimedia and IPTV support with
IGMP snooping and proxy. Integrated QoS for ensured
voice, data, and multimedia quality.
✔ Toll quality and low-bandwidth CODECs. T.38 and fax-
bypass features for solid multiuse interoperability.
✔ Single tightly integrated solution perfect for provider-
based competitive calling and bundled data services.
Smart Residential VoIP Analog WiFi Telephone Adapter
Model S-WTA
Take advantage of low-cost VoIP services without sacrificing existing Internet access and con-
nectivity. The S-WTA offers dual channel VoIP, broadband routing and integrated WiFi for a
complete residential TriplePlay Ready voice and data solution.
The Residential Smart WiFi Telephone Adapter (S-WTA)
delivers connectivity with cost savings for residential and
SoHo users. Combining two ports of standards-based VoIP
with an integrated broadband WiFi router.
The S-WTA offers dual two-wire FXS phone ports for stan-
dard telephones or fax machines. With softswitch-certified
SIP signaling, the S-WTA provides seamless toll-quality
access to lowest cost VoIP services. The integrated broad-
band router allows you to connect to any Ethernet-based
WAN such as ADSL, cable or fiber services. The integrated
4-port 10/100 LAN switch conveniently connects all of
your networking devices. The integrated 802.11 WiFi
offers b, g and super-g wireless connections automatical-
ly for highest throughput and maximum compatibility.
Wireless WPA security with NAT, firewall/statefull packet
inspection and denial-of-service support helps keep your
network secure and your phone bills low.
O R D E R I N G I N F O R M A T I O N
S-WTA/G : 2-Port FXS VoIP Telephony Adapter with Broadband
Router and Integrated 802.11b/g WiFi; 100–240 VAC external
power supply (PS)
S P E C I F I C AT I O N S
Voice Connectivity: Two FXS 2-
wire loopstart, RJ-11 • 5 REN •
EuroPOTS (ETSI EG201 188) • program-
mable AC impedance, feeding, & ring volt-
age; on-hook voltage 50Vrms nominal•
Caller-ID Type-1/2 FSK and ITU V.23/Bell
202 generation. Voice codes (G.711 A-
Law/µ-Law (64kbps). Voice Processing:
G.726 ADPCM; G.723.1 (5.3 or 6.3 kbps); G.729abe • G.168 echo cancellation •
SIPv2 • DTMF detection & generation •
carrier tone detection & generation •
silence suppression & comfort noise • con-
figurable dejitter buffer • configurable tones
(dial, ringing, busy) • configurable transmit
packet length • RTP/RTCP (RFC 1889)
Fax and Modem Support:
G.711 transparent fax • Fax over IP (FoIP) • T.38 fax relay (9.6 k, 14.4 k)
IP Services: complete IPv4
router; DHCP server, PPPoE, NAT, DMZ
with Configurable SPI Firewall and DoS
protection• DiffServe/ToS set for queue
per header bits • Pocket Policing dis-
cards excess traffic • 802.1p/Q VLAN
support with 4096 IDs • AES/DES/3DES
encryption options Connectivity: WAN - Single
10/100 Ethernet RJ-45; LAN - Four RJ-45
switch ports; Integrated WiFi - dual diver-
sity antenna. LAN switched with full coun-
try channel selection (US, Canada, Japan,
Euro) at 2.4Ghz; autorate speed from 1-54
Mbps with Super-G burst support to 108
Mbps. Up to 23 dBm transmit power. data
rate 54 Mbps. Voice Routing—Session
Router: Local switching; Interface hunt-
groups • Routing Criteria
Management: HTTP/CLI with local
console and remote Telnet/SSH access •
TFTP configuration & firmware loading •
SNMP v1 agent (MIB II and private MIB)
• Built-in diagnostic tools (trace, debug)
Environment: Temp: 32–104°F (0–40°C) • Humidity: 5–80% (non con-
densing)
Power: 100–240 VAC (50/60 Hz) •
Power dissipation: 4W
Compliance: EMC compliance:
EN55022 and EN55024 • Safety compli-
ance: EN 50950 • CE compliance • FCC
Part 15 Class A
Network Access & Connectivity
CATALOG
S-WTA
