O R D E R I N G I N F O R M A T I O N
SN4912/JS/RUI : IpChannel Bank 12 Port FXS
SN4916/JS/RUI : IpChannel Bank 16 Port FXS
SN4924/JS/RUI : IpChannel Bank 24 Port FXS
SN4932/JS/RUI : IpChannel Bank 32 Port FXS
SN4912/JSX*/RUI : IpChannel Bank 12 Port FXS WAN Uplink
SN4916/JSX*/RUI : IpChannel Bank 16 Port FXS WAN Uplink
SN4924/JSX*/RUI : IpChannel Bank 24 Port FXS WAN Uplink
SN4932/JSX*/RUI : IpChannel Bank 32 Port FXS WAN Uplink
Options & Accessories
SNSW-VPN1 : License Key for IPSec VPN support (DES, 3DES, AES)
SN4912/JO/RUI : IpChannel Bank 12 Port FXO
SN4916/JO/RUI : IpChannel Bank 16 Port FXO
SN4924/JO/RUI : IpChannel Bank 24 Port FXO
SN4932/JO/RUI : IpChannel Bank 32 Port FXO
SN4912/JOX*/RUI : IpChannel Bank 12 Port FXO, WAN uplink
SN4916/JOX*/RUI : IpChannel Bank 16 Port FXO, WAN uplink
SN4924/JOX*/RUI : IpChannel Bank 24 Port FXO, WAN uplink
SN4932/JOX*/RUI : IpChannel Bank 32 Port FXO, WAN uplink
Note:: 48VDC or split 48VDC/UI power options available.
*X = Interface options: C=V.35, D=X.21, K=E1, T=T1, Fi=Fiber, AYx=ADSL, G=G.SHDSL
29
NETWORK ACCESS— VoIP TELEPHONY
BUSINESS CLASS VoIP ROUTERS
visit us online
www.patton.com
FAST Delivery From Your AUTHORIZED DISTRIBUTOR!
CATALOG
Network Access & Connectivity

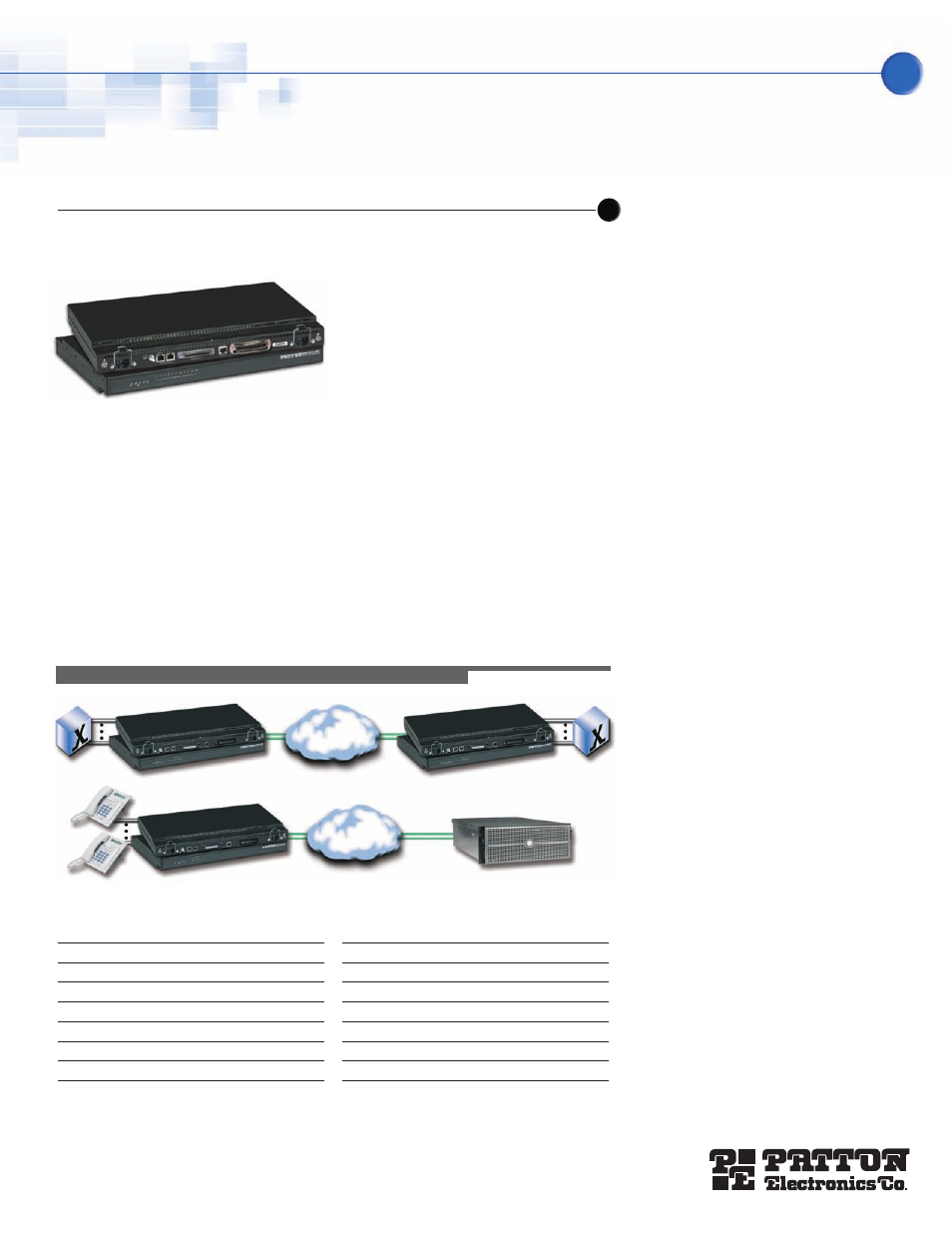

Typical applications
S P E C I F I C AT I O N S
Capacity: 12, 16, 24, 32 simultaneous
VoIP calls
Voice Signaling: SIPv2 H.323v4
(simultaneously with B2BUA capability) •
SIP call transfer, redirect • DTMF in-band
& out-of-band • All tones programmable
(dial, ringing, busy)
Voice Processing: CODEC G.711 a-
law/mu-law, G.723, G.729ab, • G.726,
G.727. T.38 fax relay (9.6 k, 14.4 k) •
G.711 transparent fax and bypass
Call Switching and
Services: Regular expression based
call routing and number manipulation •
Number blocking • Short-dialing • Digit
collection, distribution and hunt groups •
Transparent line extension
FXS Connectivity: 2-wire
Loopstart on 50pin (12 to 24 channels) or
64pin (32 channels) Telco connector
•short haul loop 1.1km @3REN •
EuroPOTS (ETSI EG201188) • program-
mable AC impedance, feeding, ring and
on-hook voltage • Caller-ID FSK and ITU
V.23/Bell 202 generation
FXO Connectivity: 2-wire
Loopstart on 50pin (12 to 24 channels) or
64pin (32 channels) Telco connector •
Programmable impedance, ring detection,
tone detection, disconnect supervision •
Caller ID detection
Data Services: Two 10/100 Ethernet
ports • Complete IP access router • DHCP
Client & server • Packet fragmentation •
Static firewall, NAT, NAPT RFC 1631
access control lists • DMZ port Quality of Service: Voice priority •
DownStreamQoS™ • Traffic manage-
ment, shaping and policing • IEEE 802.1p,
TOS, DiffServ labeling • IEEE 802.1Q,
VLAN tag insertion/deletion 4,096
Optional WAN interfaces:
X.21/V.35 Frame Relay (8 PVCs);
RFC1490, FRF.12 fragmentation; LMI,
Q.933D,ANSI 617D, Gang of Four; PPP,
PAP, CHAP, LCP, IPCP) • T1/E1 (ITU-T
G.703, ANSI T1.403; & AMI, B8ZS, HDB3)
• ADSL2+ (Annex A, B, I, J, I, M, U-R2) •
G.SHDSL (G.991.2, Annex A, B, F, G, Up to
5.7Mbps, 8 PVCs, QoS)
Management: Web/HTTP, CLI with
local console and remote Telnet access
• TFTP configuration & firmware loading
• SNMP MIB II and product MIB •
Secure auto-provisioning for both
firmware and unit/subscriber configura-
tion • Built-in diagnostic tools (trace,
debug, call generator)
System: CPU Motorola MPC875 @
133 MHz • Memory 32MB
SDRAM/8MB Flash
Power: 100–240 VAC (50/60 Hz) •
Power dissipation: > 22W (60W max,
model SN4932/JS/RUI)
Environment: Temp.: 0–40°C •
Humidity: 5–80% (non condensing)
Compliance: EMC compliance:
EN55022 and EN55024 • Safety compli-
ance: EN 50950 • CE compliance • FCC
Part 15 Class A
F E A T U R E S & B E N E F I T S
✔ 12, 16, 24 or 32 FXS or FXO ports—Simultaneous voice
or fax calls on all ports. Advanced local call switching.
✔ Full SIP and T.38 support—Supports the complete range
of industry standard VoIP: SIP, H.323, T.38 fax, fax and
modem bypass, DTMF relay. Codecs G.729, G.723 etc.
✔ Secure Toll-Quality VoIP—DownStreamQoS and Voice-over-
VPN with adaptive traffic management and shaping for
maximum voice quality and secure voice communication.
✔ Complete Access Routing—Two 10/100 Ethernet ports
with auto MDI-X. Access router with NAT, Firewall, PPPoE,
DHCP, DynDNS, multiple VLANs & VPN with IPSec*.
✔ Optional Integrated WAN uplink—Choose from V.35,
X.21, T1/E1, ADSL and G.SHDSL data interfaces in addi-
tion to the two Ethernet ports.
✔ Outstanding Interoperability—Interoperable for voice
and T.38 fax with leading SIP service providers, soft-
switch vendors and Asterisk
™ IP-PBX.
✔ Use FXS models for call center applications and FXO for
PSTN analog trunking.
IpChannel Bank Multi-Port FXS & FXO Gateway Router
SmartNode ™ 4900 Series
The IpChannel Bank is the perfect VoIP gateway for applications requiring 12 to 32 concurrent
analog voice/fax calls within a single redundant solution.
The SmartNode 4900 is the ideal solution for service
providers and enterprises requiring high-density analog con-
nections for converged Internet-Telephony. Call centers,
multi-tenant-units and PBX/switch extensions can now
access the low-cost benefits of packet voice while WAN, data
and VPN features permit direct access the IP network with
full upstream and DownStream QoS™.
The SN4900 supports 12 to 32 simultaneous VoIP calls over
standard two-wire FXS connections. The analog ports are pre-
sented on a single Amphenol telco connector for convenient
wiring closet connection. Local LAN connectivity is presented
via dual 10/100 Ethernet ports. Traffic can be routed out
either port for load-balancing and redundancy. Dual-redun-
dant power supplies protect against equipment down-time.
Seamless and secure network integration with fixed IP, DHCP
or PPPoE. Complete access routing features include NAT/NAPT,
Firewall, DynDNS and the optional IPSec VPN feature license
offer secure data.
Optional WAN uplink modules, available in V.35/X.21,
T1/E1, and xDSL options, eliminate the need for extra net-
work termination devices and extra cost.
Quality of Service (QoS) features included advanced voice
prioritization and traffic management. DownStreamQoS™
ensures voice without interruptions even over best-effort inter-
net connections. Packet labeling according to 802.1p, TOS
and DiffServ enable integration into managed QoS networks.
Integrated GUI and Command Line, front panel status and
call load indicators and a full suite of management interfaces
ensure efficient setup, continuous trouble-free operation and
cost-effective deployment.
IP/VoIP
SIP server/Call Center software
FXS or
FXO
FXS or
FXO
SN4900
SN4900
IP/VoIP
Bulk FXS or FXO Extension
Call Center/Analog Subscriber Integration
