F E A T U R E S & B E N E F I T S
✔ Centrally manages 100s–1,000s of Patton VoIP
devices—Individual, group level or network-wide device
configuration and firmware control
✔ Easy integration with existing Network Management
Systems—Link to the VAPS database using OBDC
✔ Open standard HTTP or HTTPs-based data transfer—
Provides maximum connectivity to end user devices locat-
ed behind firewalls
✔ Eliminates the need manage to each device individually—
device check-in deploys new firmware and software groups
or all devices managed by VAPS
✔ Full integration with SmartLink and SmartNode products;
Track device check-ins and upgrades—VAPS system log
tracks firmware, configuration and check-in activity
by device
✔ VAPS Requirements: Windows XP Server (XP Pro can
be substituted for XP Server if fewer than 8 sessions will
be served) with MS-SQL or Linux with MYSQL DB

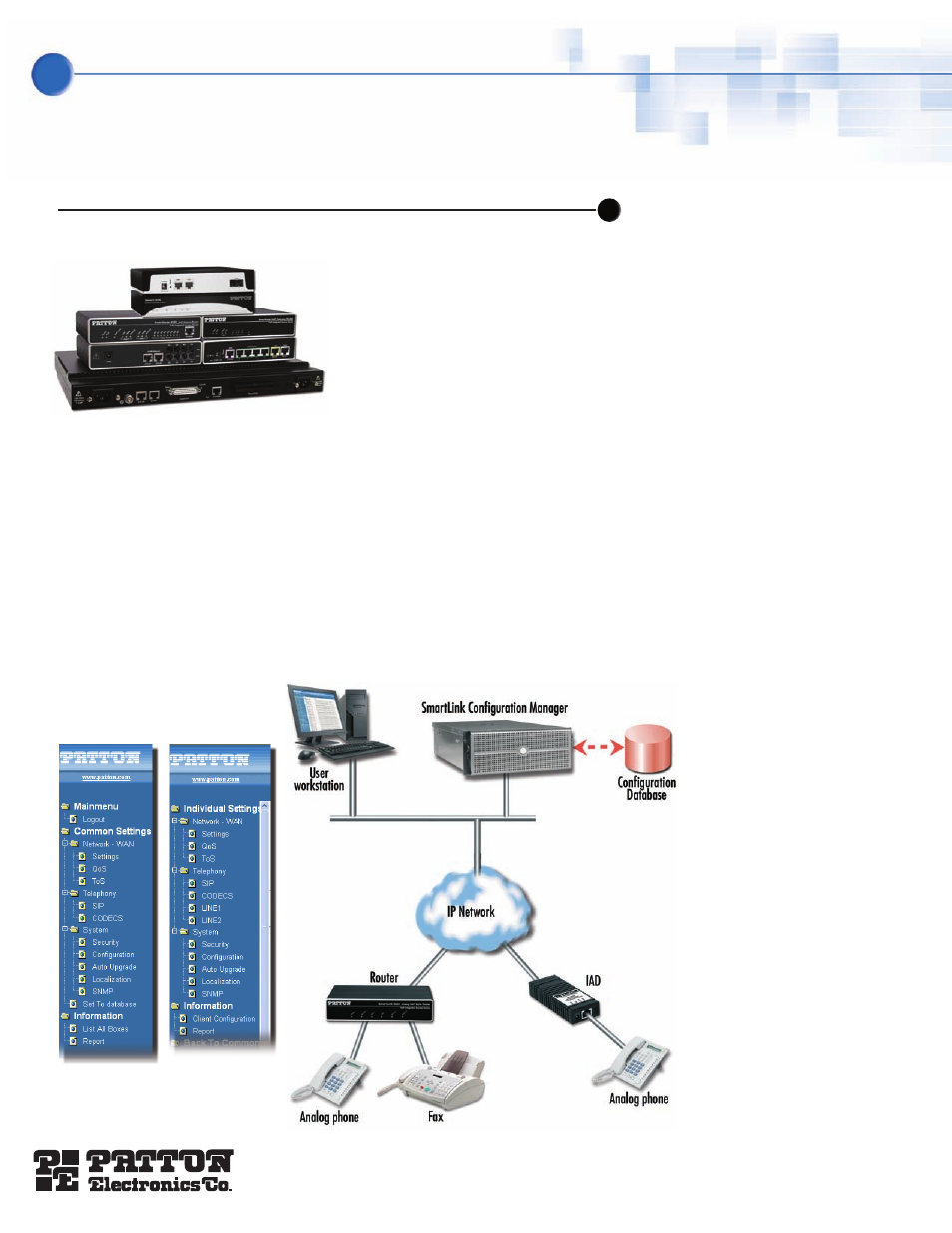

VoIP Auto-Provisioning System (VAPS)
Provides centralized configuration and firmware control for large implementations
of Patton VoIP Products
NETWORK ACCESS— VoIP TELEPHONY
SPECIALIZED VoIP PRODUCTS
36
Service provider or enterprises with large deployments of
Patton VoIP equipment require a way to centrally manage
and control deployment of end user configurations and
firmware. Configuration of individual devices via web
interfaces is not a practical option for customers with a
large installed base of end users. Patton’s VAPS is a cen-
tralized provisioning and configuration tool that enables
large scale roll-out, configuration, and firmware deploy-
ment of the Patton VoIP products at a device, group or
network wide level.
Using web configuration screens similar to the web interface
presented by the actual device, properly authenticated net-
work operations personnel can review and adjust device con-
figuration parameters. Changes that have been set to the
VAPS database will be deployed to the selected devices the
next time the device reloads or checks-in with VAPS server.
Patton Smartnode and SmartLink products will check in with
the VAPS server on a configuration defined interval.
The VAPS log tracks each VoIP device’s check-in with the
VAPS and what activities were performed. Network opera-
tors can quickly tell which devices received new configura-
tions and new firmware.
To provide maximum connectivity to diverse end user envi-
ronments, configuration and firmware is transmitted to and
from VAPS using HTTP. Secure HTTPS is supported with the
installation of an SSL public certificate on the VAPS server.
Smartnode products offer the additional option of distribut-
ing configuration information using TFTP.
visit us online
www.patton.com
FAST Delivery From Your AUTHORIZED DISTRIBUTOR!
CATALOG
Network Access & Connectivity
VAPS device
common menu
VAPS individual device
configuration menu
• Manages SmartLink and SmartNode
configurations with a common look-
and-feel interface.
• Provides a mechanism through either
push or pull to automatically update a
single device, groups of devices or to
make a change across the entire
installed base of end user devices.
• Implements VAPS application access
security with logging of configuration
and access related activities to a syslog.
• Allows application of a group or sys-
tem wide default configuration to a
device or group of devices
• Implements secure transmission
of the configuration to and from man-
aged devices.
O R D E R I N G I N F O R M A T I O N
Call for a custom quote for your deployment.
