21
NETWORK ACCESS—
VoIP TELEPHONY
BUSINESS CLASS VoIP GATEWAYS
1-8 Extensions (FXS)
SmartNode 4118
SOHO/Remote Office
Carrier Softswitch
PSTN Gateway
Corporate Headquarters
PBX
Central Office Headquarters
Internet
1200
2300
2400
10/100
Ethernet
LAN
For local/remote calling, PBX
access, or toll bypass the SN4118
VoIP Media Router provides
transparent analog access to all
connections all the time.
1-4 Extensions (FXO)
Remote/Branch Office
F E A T U R E S & B E N E F I T S
✔
Up to 8 FXS and/or FXO ports—Compact, reliable stand-
alone VoIP gateway with different port options. Supports
simultaneous voice or fax calls on all ports.
✔
Advanced Local Call Switching—Virtual interfaces and rout-
ing tables provide industry leading flexibility in call han-
dling programming. Local call switching, soft fallback to
alternative routes. Simultaneously connects to multiple SIP
services/IP PBXs.
✔
Complete SIP and T.38 support—Supports the complete
range of industry standard VoIP: SIP, H.323, T.38 fax,
fax and modem handling, DTMF relay. Codecs G.729,
G.723, etc.
✔
Easy Management & Provisioning—Web-based manage-
ment, SNMP, command line interface. Automated mass
provisioning for efficient large-scale deployments.
✔
Outstanding Interoperability—Proven integration for
voice and T.38 fax with Asterisk
™
, PingTel
™
and other
leading IP PBX systems and soft switch vendors.
The SmartNode 4110 VoIP gateway integrates up to eight legacy PSTN, PBX or standard
phone lines with next-generation IP based telephony systems. Part of the proven SmartNode
family, this product is designed to provide superior technology at an optimized cost.
The SmartNode 4110 VoIP Media Gateway supports up to
eight transparent phone calls while leveraging VoIP for
lower-cost carrier and corporate access. Connecting to any
analog phone, fax, or PBX, the SN4110 is an effective and
flexible solution for toll-bypass, remote/branch office voice
connectivity, and enhanced carrier services.
The SN4110 series is the perfect choice for phone-to-IP con-
nectivity supporting up to 8 FXS ports or a combination of 4
FXS and 2 or 4 FXO ports. With its FXS analog ports, the
SN4110 connects to any legacy telephone or PBX and pro-
vides dial-tone, ringing, and caller-ID. When equipped with
FXO ports, the local PSTN can be accessed enabling local
calling and enhanced toll-bypass applications while using a
single connected telephone. Flexible call integration allows
per-port telephone numbers, programmable call progress
tones, and distinctive ringing. With Telephony-over-IP (ToIP)
call switching, calls can automatically select the least-cost-
route while providing flexible numbering plans and end-to-
end feature transparency. PPPoE, DHCP, and VLAN offers uni-
versal IP connectivity and optional IPSEC VPN with
AES/3DES guarantees secure voice over the public network.
Patton’s SmartNode 4110 delivers the legacy phone inter-
faces, service transparency, and flexible PSTN integration
required for true converged packet voice.
O R D E R I N G I N F O R M A T I O N
SN4112/JS/EUI
: 2 Port FXS VoIP Media Gateway, 100–240 VAC
external power supply (PS)
SN4114/JS/EUI
: 4 Port FXS VoIP Media Gateway, 100–240 VAC
external PS
SN4116/JS/EUI
: 6 Port FXS VoIP Media Gateway, 100–240 VAC
external PS
SN4118/JS/EUI
: 8 Port FXS VoIP Media Gateway, 100–240 VAC
external PS
SN4114/2JS2JO/UI
: 2 FXS & 2 FXO Port VoIP Media Gateway,
100–240 VAC internal PS
SN4118/4JS4JO/EUI
: 4 FXS & 4 FXO Port VoIP Media Gateway,
100–240 VAC external PS
Options & Accessories
SNSW-VPN1
: License Key for IPSec VPN support (DES, 3DES, AES)
S P E C I F I C AT I O N S
Capacity: Up to 8 simultaneous VoIP
or T.38 fax calls (depending on the model)
Voice Signaling: H.323v4, SIPv2
(B2BUA capable, multi-instance, simulta-
neous support of multiple registrars and
direct IP dialing) • SIP call transfer, redi-
rect • DTMF in-band & out-of-band • All
tones programmable (dial, ringing, busy)
Voice Processing: CODEC G.711
a-law/mu-law, G.723, G.729ab, • G.726,
G.727. T.38 fax relay (9.6 k, 14.4 k) •
G.711 transparent fax and bypass
Call Switching and Services:
Virtual interfaces • Regular expression
based call routing and number manipulation
• Number blocking • Short-dialing • Digit
collection, distribution and hunt groups •
Transparent line extension • Fallback
Routing: Soft fallback to alternative route(s)
FXS Connectivity: 2-wire Loopstart
on RJ-11/12 •short haul loop 1.1km
@3REN • EuroPOTS (ETSI EG201188) •
programmable AC impedance, feeding, ring
and on-hook voltage • Caller-ID FSK and
ITU V.23/Bell 202 generation
FXO Connectivity: 2-wire Loopstart
on RJ-11/12 • Programmable impedance,
ring detection, tone detection, disconnect
supervision • Caller ID detection
IP services: One 10/100 Ethernet
port • DHCP Client • access control lists
• Traffic policing • IEEE 802.1p, TOS,
DiffServ labeling • IEEE 802.1Q, VLAN tag
insertion/deletion (simultaneous support of
multiple VLANs) • IPSEC, IKE,
AES/DES/3DES Encryption (optional)
Management:Web/HTTP, CLI with
local console and remote Telnet access •
TFTP configuration & firmware loading •
SNMP MIB II and product MIB • Secure
Mass provisioning for both firmware and
unit/subscriber configuration • Built-in
diagnostic tools (trace, debug, call generator)
System: CPU Motorola MPC870 @
66MHz • Memory 32MB SDRAM/8MB
Flash • Power 100–240 VAC (50/60 Hz) •
Power dissipation 4-12W, model dependent
Environment:
Temp.: 32–104°F (0–40°C)
Humidity: 5–80% (non condensing)
Compliance: EMC compliance:
EN55022 and EN55024 • Safety compli-
ance: EN 60950 • CE compliance • FCC
Part 15 Class A • TBR21 (FXS) • RoHS

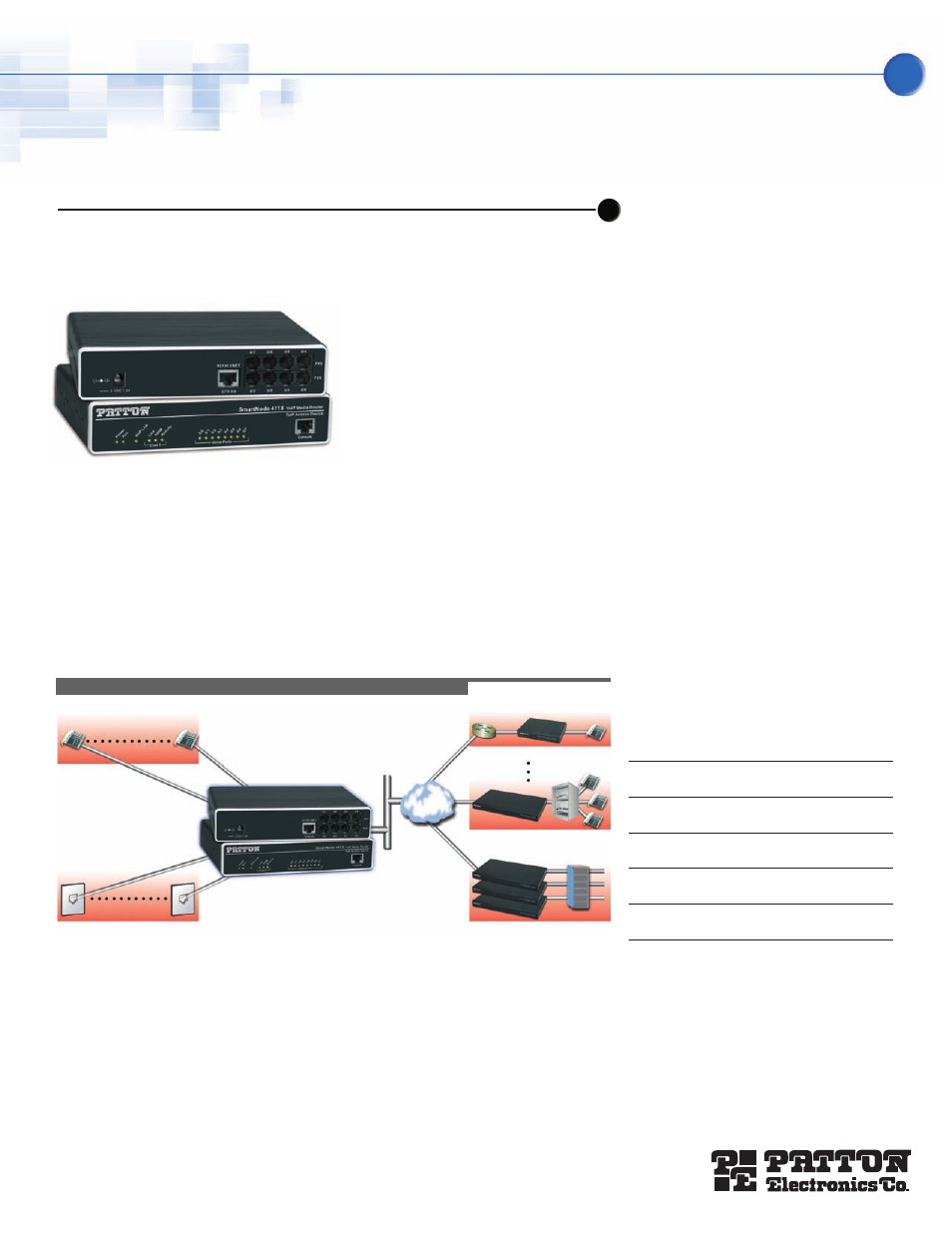

Remote Office/Branch Office Voice Extension and Access diagram
