FXS/FXO VoIP IAD with WAN Access
SmartNode ™ 4830 Series Analog Gateway Router
The SmartNode 4830 Series is the most cost-effective VoIP IAD with integrated WAN modem
in the industry. It lets you connect up to 8 phone lines with best-in-class voice quality and
QoS mechanisms for voice, fax and data.

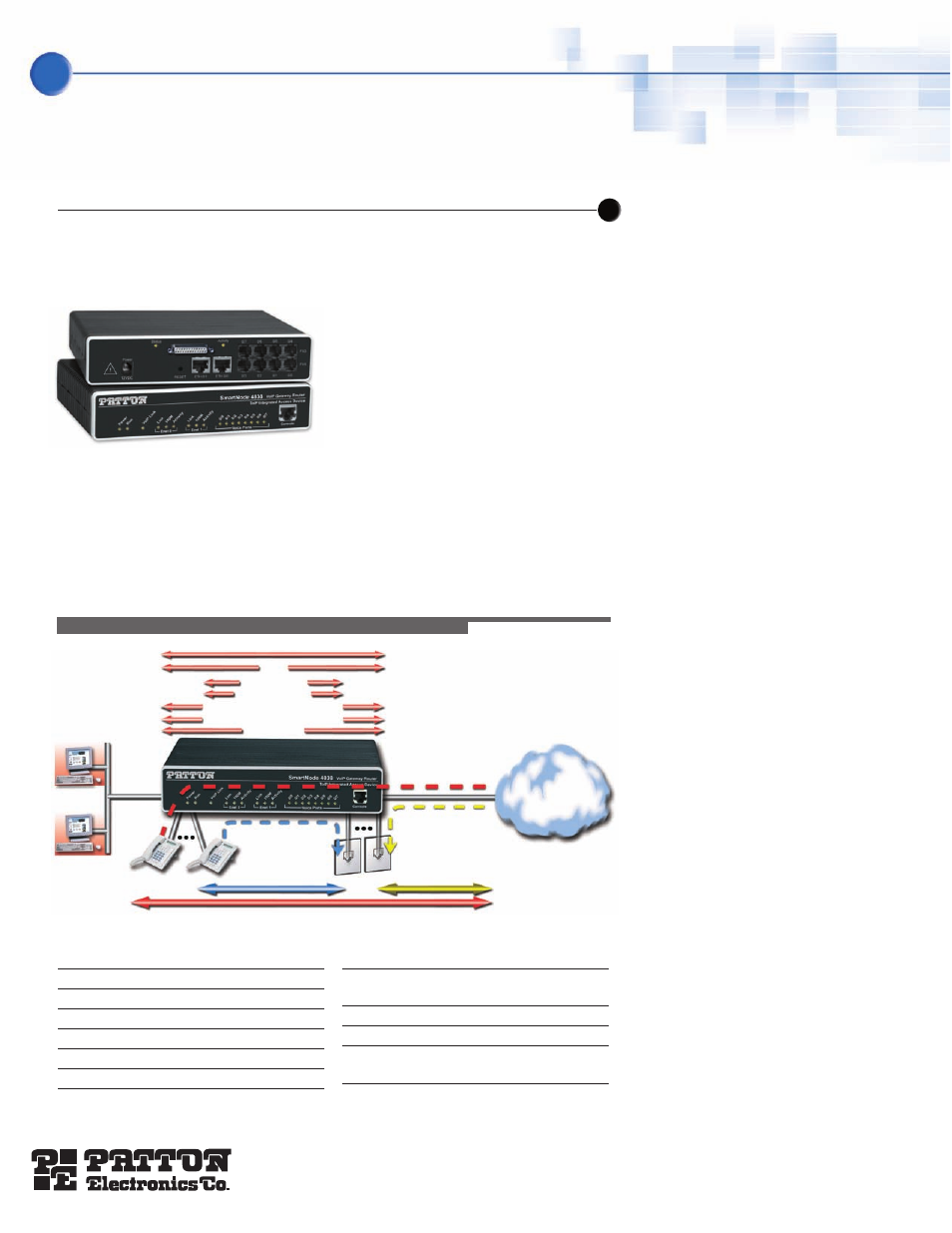

Application—Remote Office/Branch Office Voice Extension and Access
F E A T U R E S & B E N E F I T S
✔ Integrated WAN Access—ADSL2+, G.SHDSL, T1/E1,
V.35/X.21 WAN access options. Two 10/100 Ethernet ports.
Access router with NAT, Firewall, PPPoE, DHCP, and DynDNS.
✔ Full VoIP Protocol Support —SIPv2, H.323v4, T.38, fax &
modem bypass, G.723, G.729, G.726, G.711, echo cancel-
lation, silence compression, comfort noise, DTMF relay
✔ FXS, FXO, or Combinations—Up to 8 FXS ports connect
to your standard telephone or PBX. 2 or 4 FXO ports
allow local PSTN connections. Programmable call routing
and switching.
✔ Maximum Voice Quality —Advanced adaptive traffic
management for maximum voice quality. Voice prioritiza-
tion and DownStreamQoS
™ .
✔ Management & Provisioning—Web-based management,
SNMP, command line interface, & auto-provisioning for
automated configuration & SW upgrades.
S P E C I F I C AT I O N S
Capacity: Up to 8 simultaneous VoIP
or T.38 fax calls (depending on the model)
Voice Signaling: H.323v4, SIPv2
(B2BUA capable, multi-instance, simulta-
neous support of multiple registrars and
direct IP dialing) • SIP call transfer, redi-
rect • DTMF in-band & out-of-band • All
tones programmable (dial, ringing, busy)
Voice Processing: CODEC G.711
a-law/mu-law, G.723, G.729ab, •
G.726, G.727. T.38 fax relay (9.6 k, 14.4
k) • G.711 transparent fax and bypass
Call Switching & Services:
Virtual interfaces • Regular expression
based call routing and number manipula-
tion • Number blocking • Short-dialing
• Digit collection, distribution and hunt
groups • Transparent line extension •
Fallback Routing: Soft fallback to alterna-
tive route(s)
FXS Connectivity: 2-wire Loopstart
on RJ-11/12 •short haul loop 1.1km
@3REN • EuroPOTS (ETSI EG201188) •
programmable AC impedance, feeding, ring
and on-hook voltage • Caller-ID FSK and
ITU V.23/Bell 202 generation
FXO Connectivity: 2-wire Loopstart
on RJ-11/12 • Programmable impedance,
ring detection, tone detection, disconnect
supervision • Caller ID detection
Data Services: Two 10/100 Ethernet
ports • Complete IP access router • DHCP
Client & server • Packet fragmentation •
Static firewall, NAT, NAPT RFC 1631
access control lists • DMZ port • IPSEC, IKE, AES/DES/3DES Encryption (optional,
hardware accelerated)
Quality of Service: Voice priority •
DownStreamQoS
™ • Traffic management,
shaping and policing • IEEE 802.1p, TOS,
DiffServ labeling • IEEE 802.1Q, VLAN
tag insertion/deletion (simultaneous sup-
port of multiple VLANs)
Optional WAN interfaces:
X.21/V.35 Frame Relay (8 PVCs);
RFC1490, FRF.12 fragmentation; LMI,
Q.933D, ANSI 617D, Gang of Four; PPP,
PAP, CHAP, LCP, IPCP) • T1/E1 (ITU-T
G.703, ANSI T1.403; & AMI, B8ZS,
HDB3), PPP • ADSL2+ (Annex A, B, I, J,
I, M, U-R2) • G.SHDSL (G.991.2, Annex
A, B, F, G, Up to 5.7Mbps, 8 PVCs, QoS)
Management: Web/HTTP, CLI with
local console and remote Telnet access •
TFTP config & firmware loading • SNMP
MIB II and product MIB • Secure mass
provisioning for firmware & unit/sub-
scriber config • Built-in diagnostic tools
(trace, debug, call generator)
System: CPU Motorola MPC875 @
66MHz • Memory 32MB SDRAM/8MB
Flash • Power 100–240 VAC (50/60 Hz)
• Power dissipation 4–12W, model
dependent
Environment: Temp.: 0–40°C •
Humidity: 5–80% (non condensing)
Compliance: EMC compliance:
EN55022 and EN55024 • Safety compli-
ance: EN 60950 • CE compliance • FCC
Part 15 Class A • TBR21 (FXS) • RoHS
NETWORK ACCESS— VoIP TELEPHONY
BUSINESS CLASS VoIP ROUTERS
26
visit us online
www.patton.com
FAST Delivery From Your AUTHORIZED DISTRIBUTOR!
Network Access & Connectivity
CATALOG
WAN
IPsec/AES
PPPoE
DHCP
QoS
NAT/NAPT
Firewall/ACL
VLAN
DHCP
LAN
Integrated ADSL2+,
X.21/V.35 or T1/E1
WAN uplink
10/100
LAN
1–8 Extensions (FXS)
1–4 Local Telco Extensions
Data Network
Model 4838
Local Calling VoIP Calling
End-to-End Packet Voice
O R D E R I N G I N F O R M A T I O N
SN4832/JSX*/EUI : 2 Port FXS with integrated WAN
SN4834/JSX*/EUI : 4 Port FXS with integrated WAN
SN4836/JSX*/EUI : 6 Port FXS with integrated WAN
SN4838/JSX*/EUI : 8 Port FXS with integrated WAN
SN4834/2JS2JOX*/EUI : 2 FXS, 2 FXO with integrated WAN
SN4836/ 4JS2JOX*/EUI : 4 FXS, 2 FXO with integrated WAN
SN4832/JOX*/EUI : 2 FXO with integrated WAN
SN4834/JOX*/EUI : 4 FXO with integrated WAN
SN4838/4JS4JOX*/EUI : 4 FXS, 4 FXO with integrated WAN
Sync Serial Cables
1205-25M/35M : DB-25 male to M/34 male, for V.35 port
1205-25M/35F : DB-25 male to M/34 female, for V.35 port
EMEM216006 : DB-15 male to DB-15 male, for X.21 port
ADSL Splitters
5A-1 : Single-ort ADSL Splitter
Options & Accessories
SNSW-VPN1 : License key for IPsec VPN suppport (DES, 3DES, AES)
* x = Interface options: C =V.35 (DB-25F), D =X.21 (DB-15F), K =E1 (RJ-48C),
T =T1 (RJ4-8C), G =G.SHDSL (RJ-11), AYA = ADSL Annex A, AYB = ADSL Annex
B WAN options with ADSL 2+ annexes
The SmartNode™ 4830 Series IADs let you deliver voice-
over-IP over virtually any WAN access link type. The series
offers models with combinations of 2 to 8 analog FXS
phone ports and 2 or 4 FXO ports. Each model has two
Ethernet ports and an integrated WAN access modem—
choose from X.21, V.35, T1, E1, G.SHDSL or ADSL2+ to
match the given access link with greatest flexibility. Quality
of Service (QoS) features include advanced voice prioritiza-
tion, traffic management, multiple VLANs and PVCs.
DownStreamQoS
™ ensures voice without interruptions even
over best-effort internet connections. Packet labeling accord-
ing to 802.1p, TOS and DiffServ enable integration into
managed QoS networks.
The SN4830 is the solution for service providers and network
integrators looking for the seamless integration of analog
phones and PBXs into converged VoIP-Data networks. It
ensures easy setup and continuous trouble-free operation and
cost effective deployment. The support of the leading VoIP
signaling protocols ensures interoperability with third-party
equipment and protects your investments for the future.
