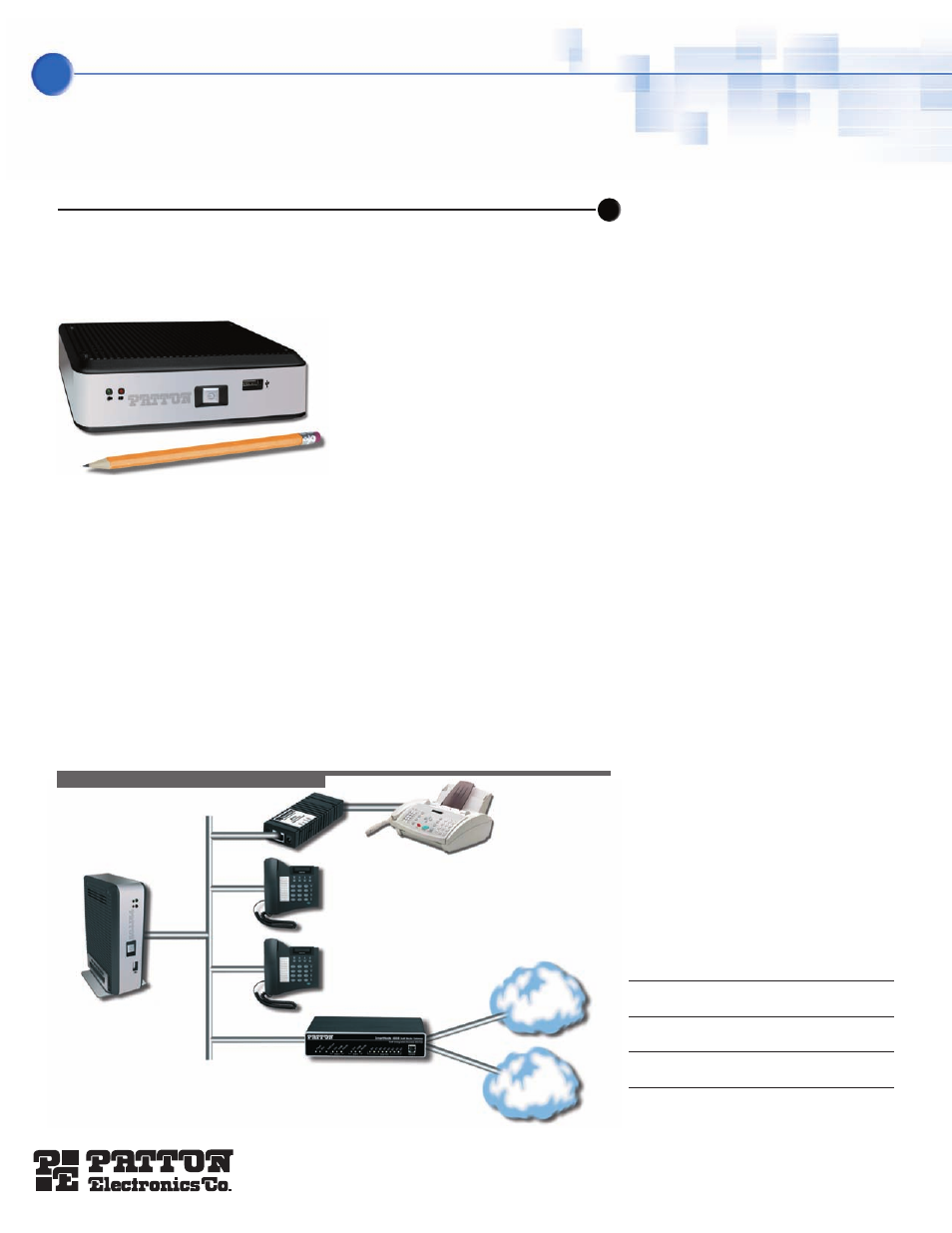

Application diagram
S P E C I F I C AT I O N S *
Protocol: IETF SIP RFC3261—SIP
Call Routing/Call
Processing: Automatic call route
selection • User and Administrator web-
based configuration • Call admission
control • Digitmap-based call setup con-
trol • Dynamic call forwarding •
Hotline/Ring down • Hunt groups •
Message waiting indication • Multi-
site/Multi-location • Multi-station
appearance • Local/Remote stations •
Outbound Call blocking/Toll restriction •
Out-of-band DTMF signaling • Phone
number to SIP address alias facility •
System security • Web services APIs for
configuration server • User forwarding
through GUI • Backup configuration via
the GUI • Emergency routing • Attendant
console • Direct call pick-up • Call
Park/Retrieve with music on hold
Media Server: HTTPS-based mes-
sage storage • Customizable voicemail
greetings • Operator (zero out) • Login to
VM via user greeting • User distribution
lists • Change VM password through GUI
Auto Attendant: Alpha-dialed
number confirmation • Customizable
main greeting • Dial by extension • Dial
by Name • Operator (zero out)
Interactive Voice Response
(IVR): Customizable top-level IVR
choices
CPU : Onboard VIA EDEN N Nano
processor (1.3 GHz Pentium equivalent)
RAM: 256Mb DDR266
I/O Interface: LPT • RS-232 •
PS/2 Keyboard • PS/2 Mouse • USB
2.0 ports, Qty: 2
Operating System: Linux
Power supply: Universal
100–240 VAC
Dimensions: 6.7 x 4.9 x 2.3 in.
(170 x 124 x 58 mm) Aluminum case
Weight: 940g
Operating Humidity: 0–90% rel-
ative humidity, non-condensing
Operating Temp.: 32–140°F
(0–60°C)
CATALOG
Network Access & Connectivity
Patton’s SipXNano IP-PBX enables small enterprises to access large enterprise
PBX features and becomes the first to realize the benefits of VoIP.
The SIPxNano is a full function IP-PBX tailored to meet the
needs of small to medium enterprises and branch offices.
It provides the features of a traditional PBX with the ben-
efits of VoIP such as soft clients and voicemail to e-mail
integration. The SIPxNano supports up to 30 concurrent
users and comes with common PBX/Key System features
such as an auto-attendant, configurable call routing, music
on hold, call-forwarding, music on park, hunt groups, and
much more.
The web-based administrative interface permits quick and
easy configuration of dialing plans, auto attendants and
other PBX features. Office users of the SIPxNano IP-PBX ben-
efit the most from the voicemail to e-mail integration. An
easy to use web page is available to create and manage per-
sonal voicemail folders. Menu options facilitate the setup of
e-mail notification and even e-mail delivery of the message
in easy-to-open .wav file format. Multiple greetings can be
recorded and then activated via a drop drown box.
Enterprises operating in multiple locations can leverage their
existing data intranet/VPN investment to extend features of
the headquarters IP-PBX to all locations and telecommuters.
Every employee can be reached via a 3-digit extension by a
simple web page configuration of the dialing plan. Intra-
enterprise long-distance phones bills drop to zero by using
the VPN. At the same time, additional savings can be
achieved both by reducing the number of local PSTN connec-
tions, as well as by leveraging the remaining local PSTN con-
nections in remote offices to effect a least cost routing of
long distance calls to the remote office area code and there-
by performing a long distance toll by-pass.
When combined with a Patton SmartNode or SmartLink
device, the SIPx-Nano IP-PBX provides VoIP services to ana-
log phones, faxes, and legacy PBX systems that are not able
to support newer VoIP technologies.
F E A T U R E S & B E N E F I T S
✔
Full Function Enterprise PBX—Complete call control,
voicemail and administrative systems
✔
Drives Intra-Enterprise Calling Costs Down—All voice
traffic is transported as data across your data connection
on the enterprise IP network
✔
Geographically Unified Calling Features —All employees
with an Internet connection can have access to the same
PBX features from any location
✔
Easy to Use System Configuration—Full system and user
administration via web interface
✔
Voicemail and Email Integration—Sends your voicemail
to your email
✔
Web-Based Self-Administration—Users can specify call
forwarding, call routing and voicemail preferences thru
the web interface
O R D E R I N G I N F O R M A T I O N
SIPxNano-15/E
: SmartLink IP- PBX NanoServer & 15 concurrent
user license with 1-year software maintenance; AC UI power
SIPxNano-30/E
: SmartLink IP-PBX NanoServer & 30 concurrent
user license with 1-year software maintenance; AC UI power
SL4250-75
: SmartLink IP-PBX rack mount server w/RAID1 & 75
user license with 1-year software maintenance
SL4250-125
: SmartLink IP-PBX rack mount server w/RAID1 & 125
user license with 1-year software maintenance
SL4250-250
: SmartLink IP-PBX rack mount server w/RAID1 & 250
user license with 1-year software maintenance
M-ATA
SmartLink SIP Phones
SIPxNano
IP-PBX
SmartNode Gateway
PSTN
WWW
Fax
* Hardware specifications subject to change without notice.
