NETWORK ACCESS—
VoIP TELEPHONY
RESIDENTIAL ATAs
16
Network Access & Connectivity
CATALOG
Quickly and easily converts any phone or fax machine to VoIP for residential and telecom-
muter applications.
The SmartLink Micro Analog Telephone Adapter provides
connectivity for analog phones and faxes to a home, home
office or corporate LAN. Connecting to any analog phone,
fax or PBX, the SmartLink product is a cost effective solu-
tion for small offices and telecommuters to access Internet-
based telephone services and corporate intranet systems
across established LAN and Internet connections like DSL
and cable modems.
The M-ATA provides one Ethernet (RJ-45) port and one
FXS (RJ-11) analog phone port for quick and easy inter-
connection to the local LAN. LEDs show at-a-glance the
status of the system, LAN, WAN, and phone ports.
A full suite of IP features (DHCP) are available to maxi-
mize universal connectivity. VLAN tagging and prioritiza-
tion enables voice traffic to be handled before data traf-
fic, ensuring higher quality voice calls. Support for PPPoE
tunneling simplifies extending corporate intranet services
to telecommuters.
The user friendly web interface offers two levels of config-
uration: level one covers basic subscriber-specific parame-
ters, level two offers advanced settings for the transport
network. Configuration and firmware can be downloaded
from a centralized TFTP or HTTP server.
The M-ATA is SIP standard compliant. Analog phones
attached to the SmartLink can use advanced calling fea-
tures such as call forwarding, caller ID, 3-way calling, call
holding, call retrieval, and call transfer.
VoIP-enable your existing
fax machines
Integrated support for T.38 brings fax machines into the
low-cost world of VoIP. The M-ATA supports G3 analog fax
machines and converts fax signaling into T.38 or G.711
pass through fax for delivery over an Intranet or the
Internet. Just configure the M-ATA, plug in the fax
machine’s phone line, add a LAN connection, and the M-
ATA is ready to go!
Typical applications
F E A T U R E S & B E N E F I T S
✔
Ultra-miniature—Smallest full-function analog telephone
adapter available today!
✔
Supports over 20 voice calling features—Call waiting, call
conference, caller ID, hotline, distinctive ring and more!
✔
DHCP, PPPoE—Provides maximum connectivity across
firewalls and transport networks.
✔
SIP Signaling—Deploy into any multimedia, interactive,
or softswitch network with the leading call and session
signaling protocols.
✔
Toll Quality CODECs & T.38 fax—Uses G.723 or G.729
for low-bandwidth applications or standard G.711 or
G.726 CODECs for toll-quality voice.
✔
Centralized management—HTTP/SNMP manageable
from any location.
O R D E R I N G I N F O R M A T I O N
M-ATA-1/E
: Micro Analog Telephone Adapter; 1 x FXS RJ11; 1 x
10/100Base-TX
M-AFA-1/E
: Micro Analog FAX Adapter; 1 x FXS RJ11; 1 x
10/100Base-TX, T.38 and G.711 only
S P E C I F I C AT I O N S
Voice Connectivity: 2-wire
Loopstart, RJ-11/12 • Short haul loop
1.1 km @3REN • Caller-ID Type-1/2
FSK and ITU V.23/Bell 202 generation
Connectivity: 1 10/100Base-TX
Full Duplex/Autosensing Ethernet RJ-45
Voice Processing (signalling
dependent): SIP • Voice CODECS
(G.711 A-Law/µ-Law (64 kbps); G.726
(ADPCM 40, 32, 24, 16 kbps); G.723.1
(5.3 or 6.3 kbps); and G.729ab (8 kbps))
• G.168 echo cancellation • 2 parallel
voice connections • DTMF detection and
generation • Carrier tone detection and
generation • Silence suppression and
comfort noise • Configurable dejitter
buffer • DTMF in-band & out-of-band •
Configurable transmit packet length •
RTP/RTCP (RFC 1889) • STUN
Fax and Modem Support:
G.711 transparent fax • T.38 fax relay
(9.6 k, 14.4 k)
Voice Services/Features:
Anonymous CallerID block • Call blocking
• Call forward - on busy • Call forward
- selective • Call forward - unconditional
• Call hold/retrieve • Call return • Call
transfer - blind • Call transfer - with
consultation • Call waiting/retrieval •
Caller-ID • Conference drop •
Conferencing (3-way calling) •
Distinctive ring • Do not disturb •
Hotline calling • Incoming CallerID on/off
• IP URL dialing • Message waiting
indication • Self-caller ID block • Speed
dial • Voicemail message retrieval •
Warmline calling
IP Services: DHCP client • PPPoE •
Programmable static routes • ICMP redi-
rect (RFC 792); Packet fragmentation •
VLAN support 802.1p/q
Management: Browser configuration
interface • Multilevel security access •
TFTP & HTTP configuration & firmware
loading • SNMP v2 agent (MIB II and pri-
vate MIB) • Syslog support
Operating Environment:
Op. temp.: 0–40°C (32–104°F)
Op. humidity: 5–80% (non-condensing)
System: Power: 100-240 VAC
(50/60 Hz)
Compliance: EMC compliance:
EN55022 and EN55024 • Safety compli-
ance: EN 50950 • CE compliance • FCC
Part 15 Class B
Physical:
Dimensions: 3.6L x 2.1W x 0.78H in.
(9.0L x 5.3W x 1.9H cm)
Weight: 0.2 lbs (0.09 kg)

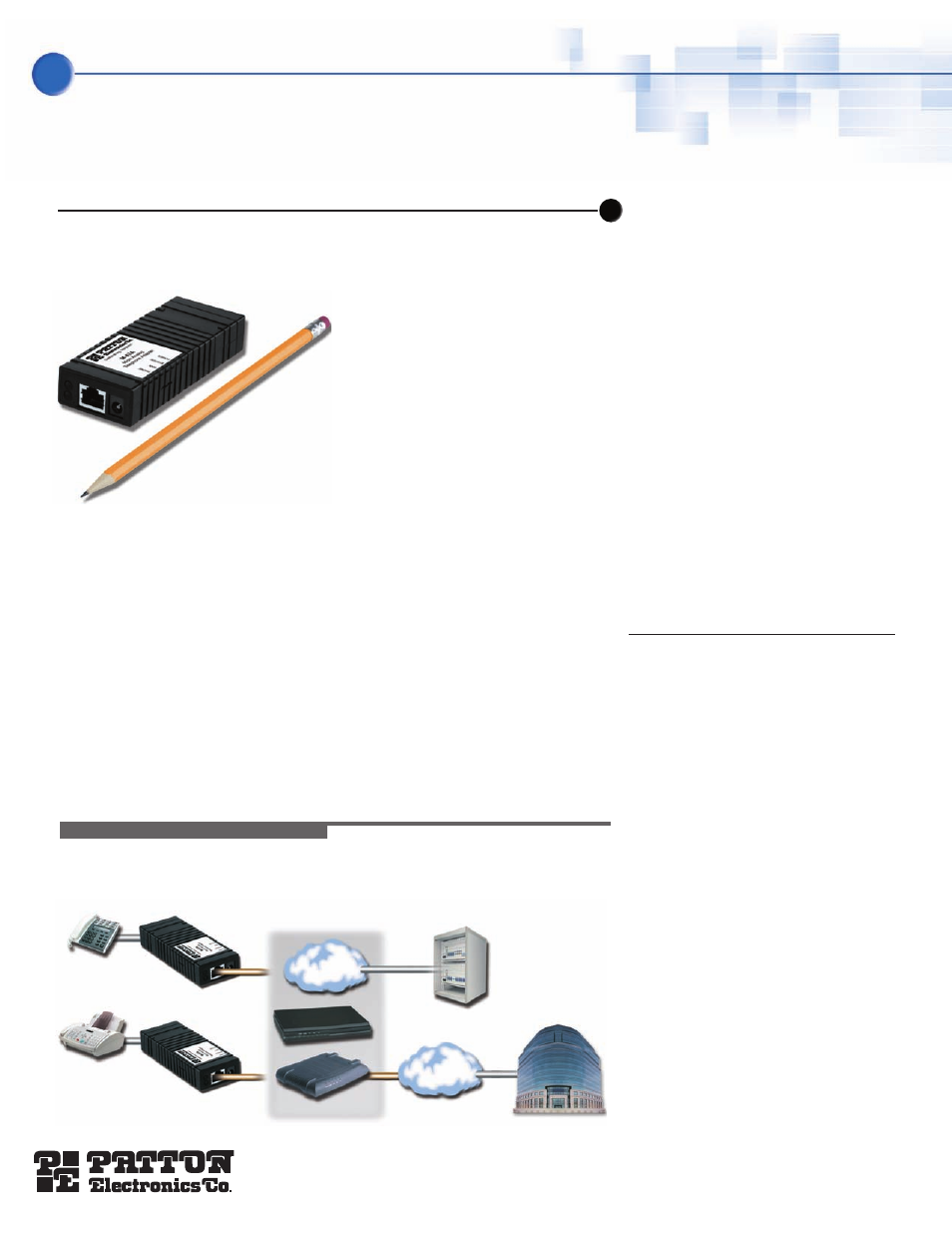

Patton’s Micro-Analog Telephone Adapter provides seamless access to Internet telephony and data services. The M-ATA connects
to any broadband access provider via a cable or xDSL modem.
Corporate IP-PBX
Fax
Phone
Internet
M-ATA
M-ATA
Cable Modem
xDSL Modem
Corporate
Intranet
Connect via network,
xDSL Modem, or Cable Modem
FXS
FXS
Voice Internet
Service Provider
Smaller
than a pencil,
these adapters
can easily fit in
your shirt pocket!
