Page 13: Rear panel
13
En
01

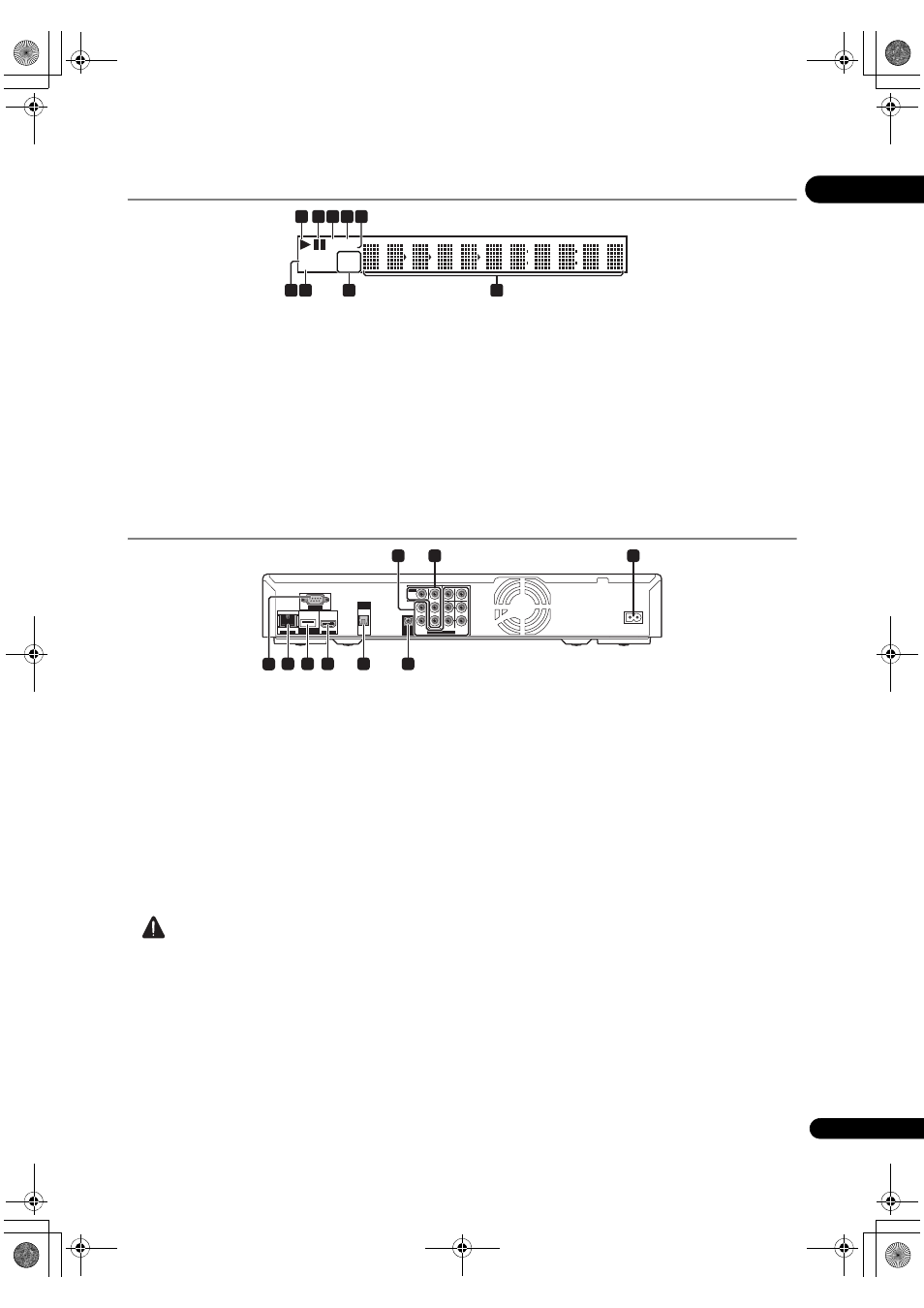

Front Panel Display
1
– (page 29)
2
– (page 29)
3
HD – This lights when an HDMI cable is connected
and video signals a
re being output with a resolution of
1080/60i, 1080/60
p, 720/60p, 1080/50i, 1080/50p, 720/
50
p or 1080/24p. It also lights when a component
video cable is connected and video signals a
re being
out
put with a resolution of 1080/60i or 720/60p.
4
LAN – (page 22)
5
PQLS – (page 19)
6
Character display – Displays the title/chapter/track
numbe
r, elapsed time, etc.
7
24HZ/50HZ/60HZ – The frequency of the video frame
o
r field being output lights.
8
EXT – (page 21)
9
CONTROL – (page 19)
Rear Panel
1
AUDIO OUT (7.1 ch) terminals – (page 21)
2
VIDEO OUT terminals
VIDEO – (page 21)
COMPONENT VIDEO – (page 21)
3
AC IN – (page 22)
4
CONTROL IN terminal – Use to control this player
f
rom the remote sensor of another Pioneer
com
ponent with a
CONTROL OUT terminal and
bea
ring the
mark. Connect the CONTROL OUT
te
rminal of the other component to
CONTROL IN on
this
player using a mini-plug cord (commercially
available).
Caution
• Be su
re to connect cables for outputting the audio
and video signals.
• When connected via System Cont
rol, point the
remote control toward the connected component
(such as an AV
receiver or amplifier). The remote will
not wo
rk correctly when pointed at this player.
• You cannot use System Cont
rol with components that
do not have a System Cont
rol terminal or with
com
ponents manufactured by companies other than
Pionee
r.
5
DIGITAL OUT (OPTICAL) terminal – (page 21)
6
HDMI OUT terminal – (page 20)
7
USB (BD STORAGE) port – (page 21)
8
LAN (100) terminal – (page 22)
9
RS-232C terminal – Serial control of the player is
possible when connected to a computer (page 58).
PQLS
LAN
HD
24HZ
50HZ
60HZ
CONTROL
EXT
1
6
7
8
9
5
2
4
3
AUDIO OUT(7.1 ch)
CONTROL
IN
VIDEO
OUT
VIDEO
FRONT
SURROUND
SURROUND
BACK
COMPONENT VIDEO
CENTER
SUB WOOFER
L
Y
P
B
P
R
R
L
R
LAN (100)
HDMI OUT
DIGITAL
OUT
OPTICAL
AC IN
USB
(BD STORAGE)
RS-232C
LAN (100)
USB
(BD STORAGE)
HDMI OUT
RS-232C
DIGITAL
OUT
OPTICAL
AUDIO OUT(7.1 ch)
CONTROL
IN
VIDEO
OUT
VIDEO
FRONT
SURROUND
SURROUND
BACK
COMPONENT VIDEO
CENTER
SUB WOOFER
L
Y
P
B
P
R
R
L
R
AC IN
3
2
8
7
6
5
1
4
9
