Jazzy 1170XL www.pridemobility.com 25
V . C O M F O R T A D J U S T M E N T S
FOOTREST
ADJUSTMENT
SCREWS
FOOTREST EXTENSION
SFR RELEASE
LEVER
LEG REST
ADJUSTMENT
SCREWS
LEG REST
EXTENSION
RELEASE LEVER B
RELEASE LEVER A

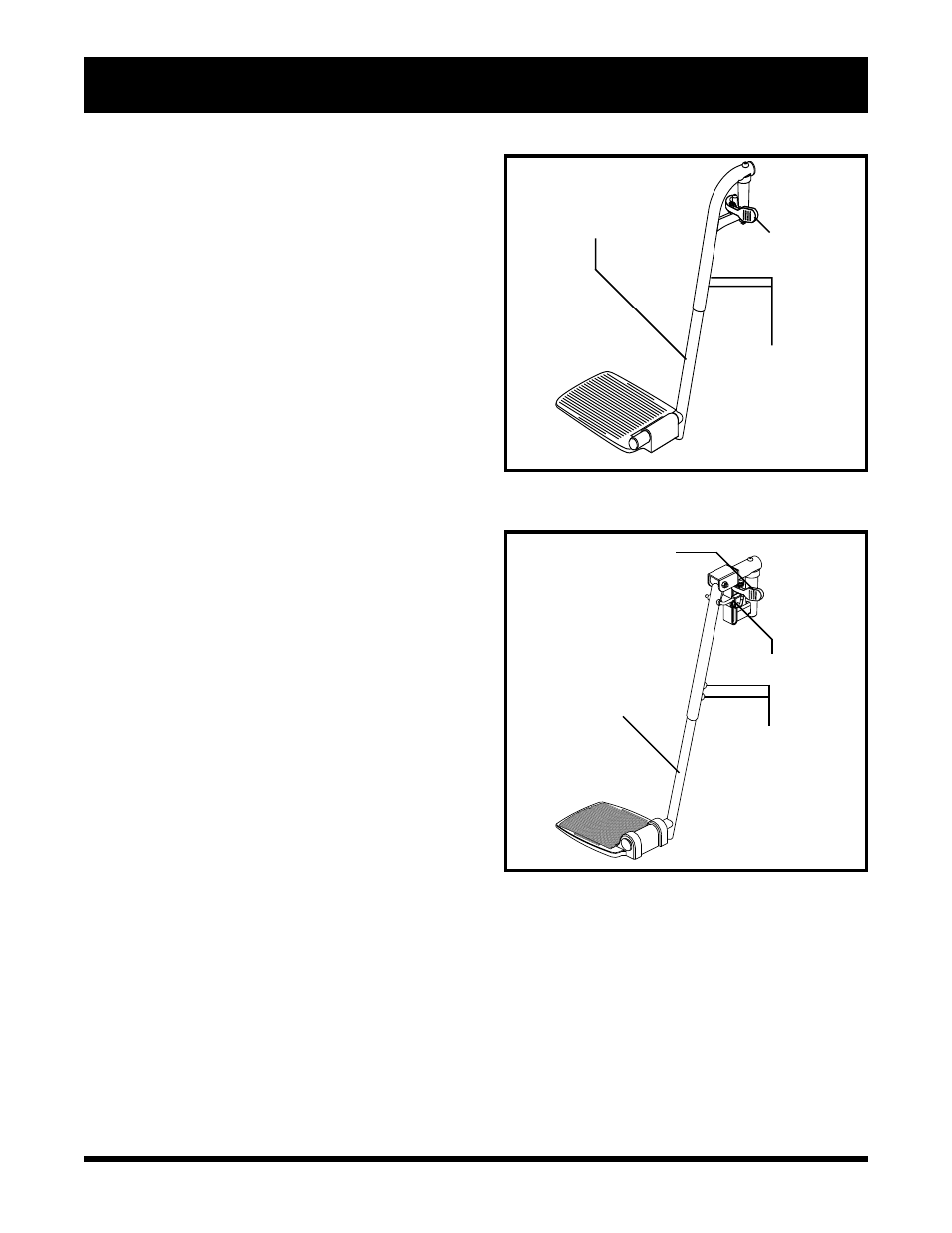

Figure 22. Swing-away Footrest Adjustment
Figure 23. Elevating Leg Rest Adjustment
Controller Position
You can position the controller for either left-hand or
right-hand use.
To change the controller position:
1. Turn off the power to the controller.
2. Disconnect the controller from the electronics tray.
3. Cut the wire tie(s) securing the controller cable to
the armrest.
4. Flip up the armrest and loosen the setscrew. See
figure 21.
5. Slide the controller out of the armrest.
6. Loosen the setscrew in the other armrest.
7. Place the controller in the other armrest.
8. Tighten the setscrew to secure the controller.
9. Use a wire tie to secure the controller cable to the
armrest.
10. Connect the controller to the electronics tray.
Swing-away Footrests
Swing-away Footrests (SFRs) are an option. They enable
you to rotate the leg rests to the side before you transfer
onto or off of your power chair.
To rotate the SFRs:
1. Push in the release lever. See figure 22.
2. Rotate the SFRs.
To adjust the SFR length:
1. Remove the two adjustment screws from the side
of each footrest extension. See figure 22.
2. Slide the footrest up or down to the desired length.
3. Reinstall the two adjustment screws.
Elevating Leg Rests (Optional)
Elevating Leg Rests (ELRs) offer an infinite range
of adjustment for the leg angle and a footrest ad-
justment range of 12–19 in.
To rotate the ELRs:
1. Push in release lever A. See figure 23.
2. Rotate the ELRs.
