V . C O M F O R T A D J U S T M E N T S
Armrest Angle Adjustment
To change the armrest angle:
1. Lift the armrest straight up so that it is perpen-
dicular to the floor.
2. Loosen the jam nuts. See figure 18.
3. Loosen the armrest angle adjustment screw. See
figure 18.
4. Turn the adjustment screw clockwise to raise the
front of the armrest, or turn the adjustment screw
counterclockwise to lower the front of the armrest.
5. Tighten the jam nuts to lock the adjustment screw
into place.
Footrest Height Adjustment
The footrest height is easily adjusted to six different
heights.
To raise or lower the footrest:
1. Remove the mounting hardware from the footrest
bracket. See figure 19.
2. Raise or lower the footrest to the desired height.
3. Reinstall the mounting hardware to the footrest
bracket.
Footrest Angle Adjustment
You can adjust the angle of the footrest with a hex key.
To adjust the footrest angle:
1. Locate the setscrew on the underside of the footrest.
See figure 20.
2. Turn the setscrew clockwise to raise the front of
the footrest or counterclockwise to lower the front
of the footrest.
Controller Extension
The controller can easily slide out away from the arm-
rest, or in toward the armrest.
To extend the controller:
1. Flip up the armrest so it is perpendicular to the floor.
2. Loosen the setscrew on the controller bracket. See
figure 21.
3. Slide the controller into or out of the armrest to
the desired position.

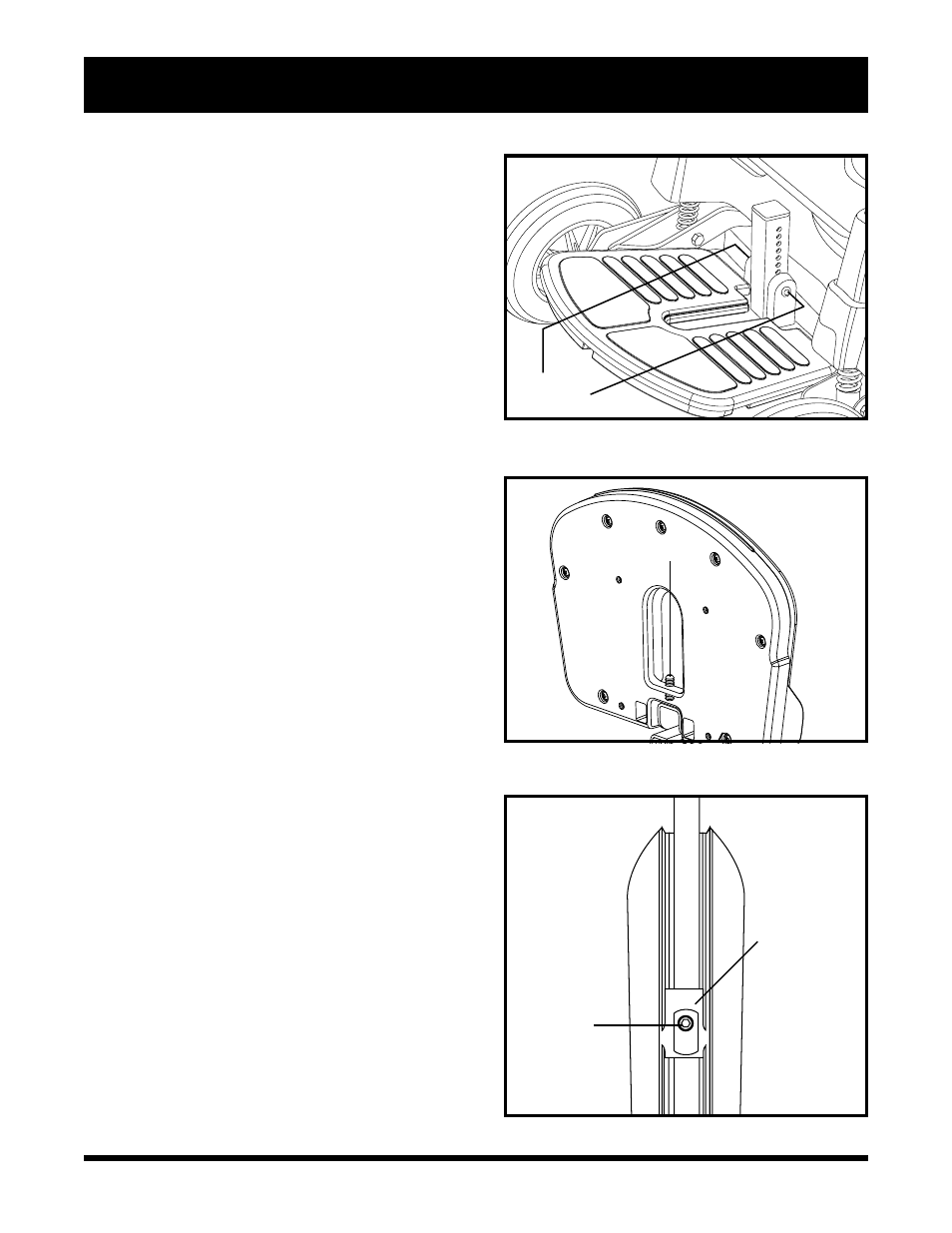

Figure 19. Footrest Height Adjustment
MOUNTING
HARDWARE
Figure 20. Underside of Footrest
SETSCREW
Figure 21. Controller Extension
SETSCREW
CONTROLLER
BRACKET
