Jazzy 1170XL www.pridemobility.com 21
Power Elevating Seat Option Installation
Your power chair may be equipped with a power
elevating seat option. While the seat itself may be
any one of the styles offered for this model, the way
the seat base attaches to the Jazzy 1170XL power
base is different.
To install the power seat:
l. Align the seat shaft to the hole in the actuator. See
figure 15.
2. Insert the seat shaft into the actuator and push the
seat lever forward.
3. Lock the seat into place.
4. Plug the power elevating seat switch cable into
the connector on the electronics tray.
5. Plug the controller cable into the connector on the
electronics tray. See figure 6.
6. Route the cable to ensure that the cable cannot be
pinched in the seat hinge.
7. Secure the controller cable to the armrest receiver
with one or more wire ties.
I V . A S S E M B L Y

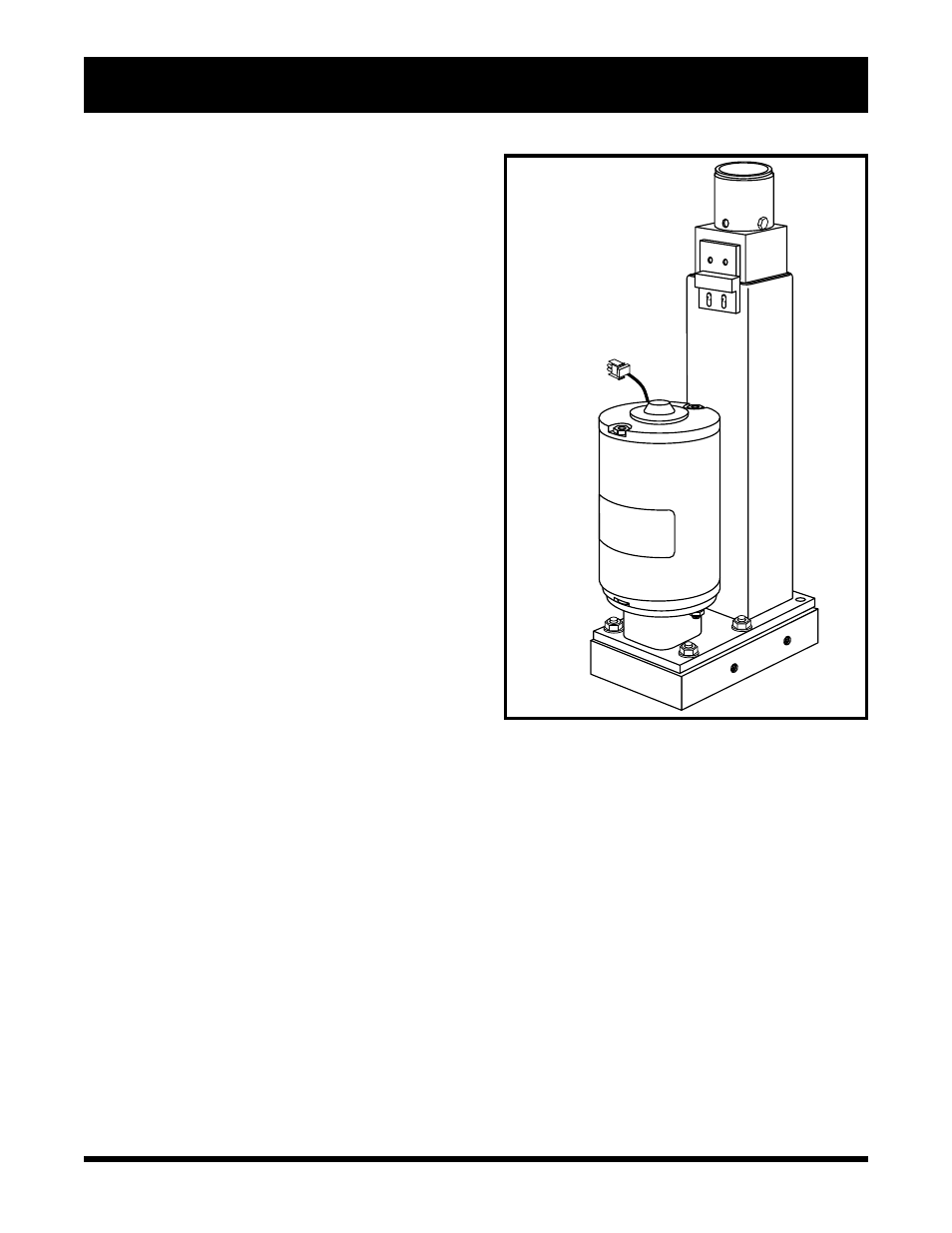

Figure 15. Power Elevating Seat Actuator
