Pride Mobility Jazzy 1170XL User Manual
Page 14
14
www.pridemobility.com
Jazzy 1170XL
I I I . Y O U R P O W E R C H A I R
SEATBACK
ARMRESTS
CONTROLLER
(VSI SHOWN)
BODY SHROUD
ANTI-TIP WHEELS
DRIVE WHEEL
CASTER WHEEL

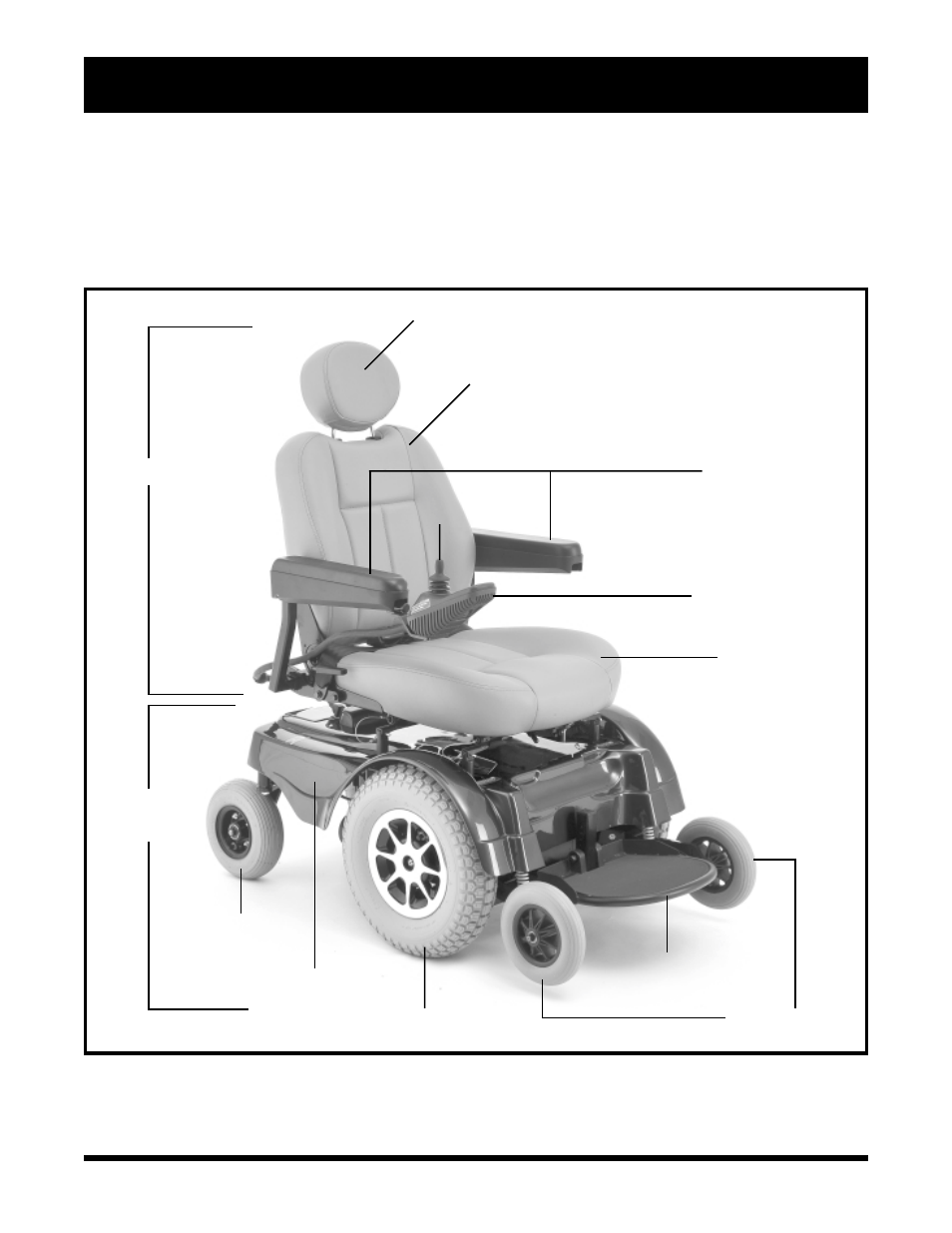

Figure 5. The Jazzy 1170 XL
POWER BASE
ASSEMBLY
FOOT RIGGING
(FOOT PLATFORM SHOWN)
THE JAZZY 1170XL
Your power chair has two main assemblies: the seat and the power base. See figures 5 and 6. Typically, the
seat assembly includes the armrests, seatback, and seat base. The power base assembly includes two motor/
brake assemblies, two drive wheels, two anti-tip wheels, two caster wheels, two batteries, and wiring
harnesses.
JOYSTICK
HEADREST
SEAT BASE
SEAT ASSEMBLY
