1. Introduction and Installation
14 For assistance, please visit http://www.panasonic.com/help

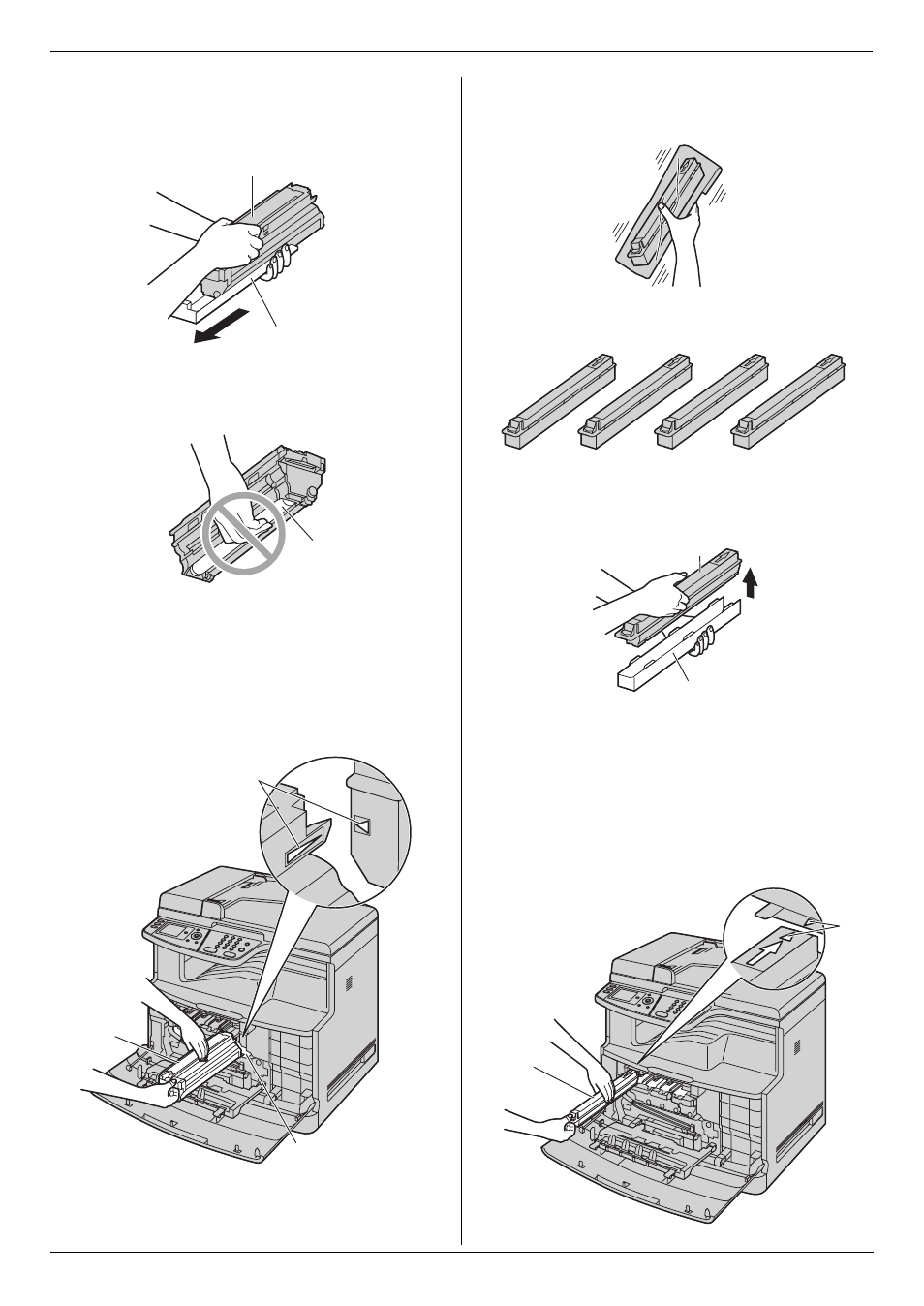

11 Firmly grip the monochrome drum cartridge (
q) and
remove the protective tray (
r) by sliding it toward
you.
L Do not touch or scratch the green drum surface
(
s) at the bottom of the drum cartridge.
12 Insert the monochrome drum cartridge (
t) into the
right side of the unit.
L Make sure that the arrows (
u) match to insert
the drum cartridge correctly.
L Do not touch or scratch the accumulator unit
(
v).
13 Before opening the protection bag of the new toner
cartridges, shake them vertically more than 10
times.
14 Remove the 4 toner cartridges from the protection
bags.
L Remove the shipping tape.
15 Remove each protective tray ( w) by lifting up the
toner cartridge (
x).
16 Insert each toner cartridge (
y) in the appropriate
color slot.
From left to right, yellow, magenta, cyan, black.
L Make sure that the arrows (
z) match to insert
the toner cartridge correctly.
L Do not touch the toner cartridge shutter at the
bottom of the toner cartridge. The toner may spill
out of the toner cartridge.
