Planar PD520 Owner’s Operating Manual 21
PREL
IMINA
RY
Connecting External
Speakers (Optional)

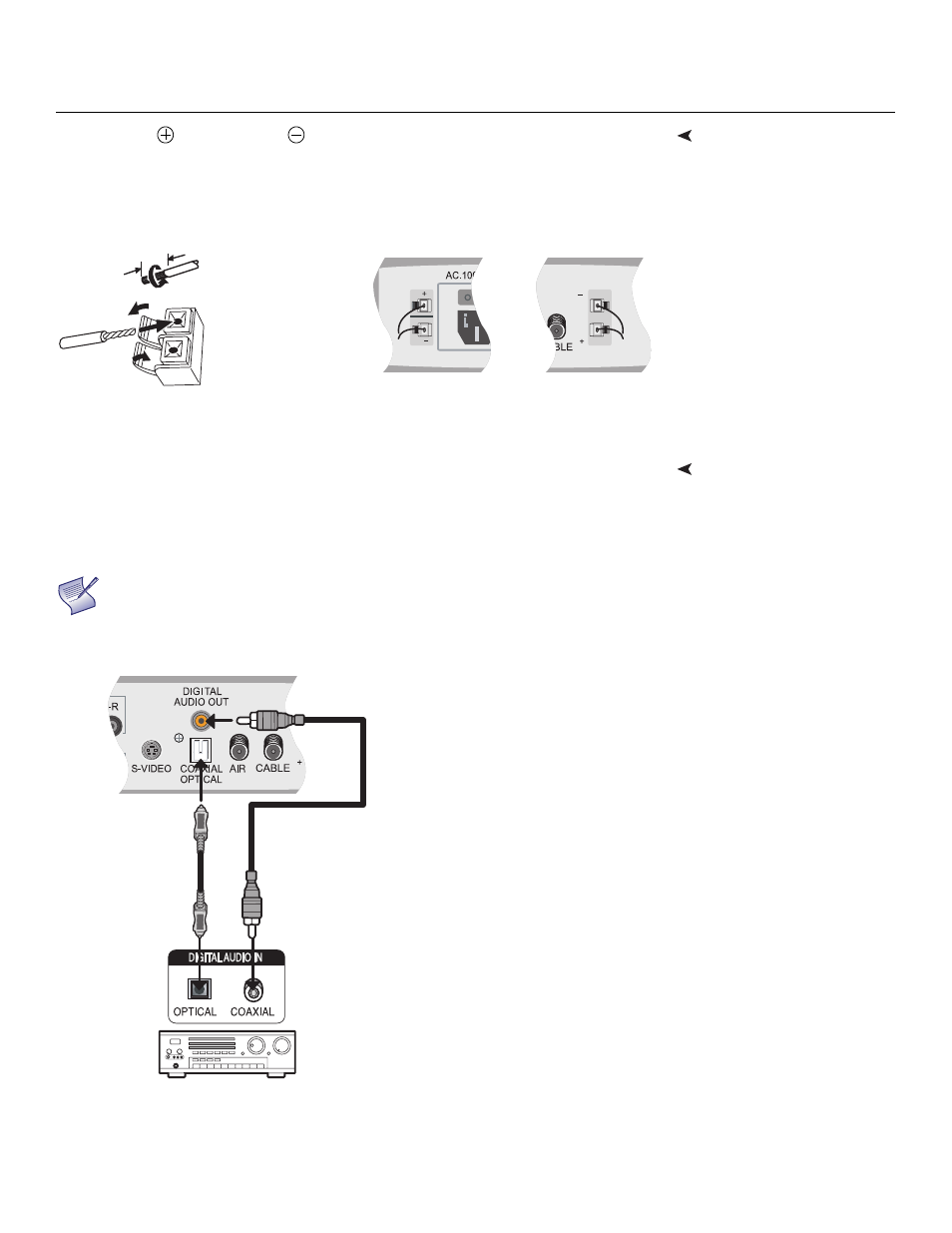

Connect the (positive) and (negative) speaker wires to the rear-panel
SPEAKER-R and SPEAKER-L terminals; see Figure 3-7. Connect speakers with an
impedance of 4 ohms. Maintain the correct polarity. For more information, refer
to the owner’s manual for your speakers.
Figure 3-7. External Speaker Connection
Connecting to a Dolby
Digital Amplifier
If your home theater has a Dolby Digital amplifier or receiver, connect the
digital audio output from the PD520 to the digital audio input of the
amplifier/receiver as shown in Figure 3-8. The PD520 supports both coaxial
(S/PDIF) and optical (TosLink) digital audio connections.
Figure 3-8. Digital Audio Connection
12 mm Twist exposed
wire strands
together.
Right Speaker Left Speaker
Push tab to the
open position, and
insert the wire.
Then, close tab firmly to
secure the wire in place.
The audio output level is fixed. (The volume and mute
controls affect only the speaker and headphone outputs.)
Note
Digital Audio Cable,
Optical
(Sold Separately)
Digital Audio Cable,
Coaxial
(Sold Separately)
Dolby Digital
Amplifier
- or -
