6 Planar PD520 Owner’s Operating Manual
PREL
IMINA
RY
3. Volume Adjustment Buttons (VOL - / VOL +)
Use these buttons to adjust the sound volume. When a menu is visible
on-screen, these buttons operate identically to the left- and right-arrow
( and ) buttons on the PD520 remote control unit.
4. /
When a menu is visible on-screen, these buttons operate identically to the
up- and down-arrow ( and ) buttons on the PD520 remote control unit.
5. Power Button
6. Remote Control Sensor
7. Status Indicator LED
- Lights red to indicate that the PD520 is in standby mode;
- lights green during power-on sequence;
- off during normal operation;
- flashes green when the PD520 receives a signal from the remote control.

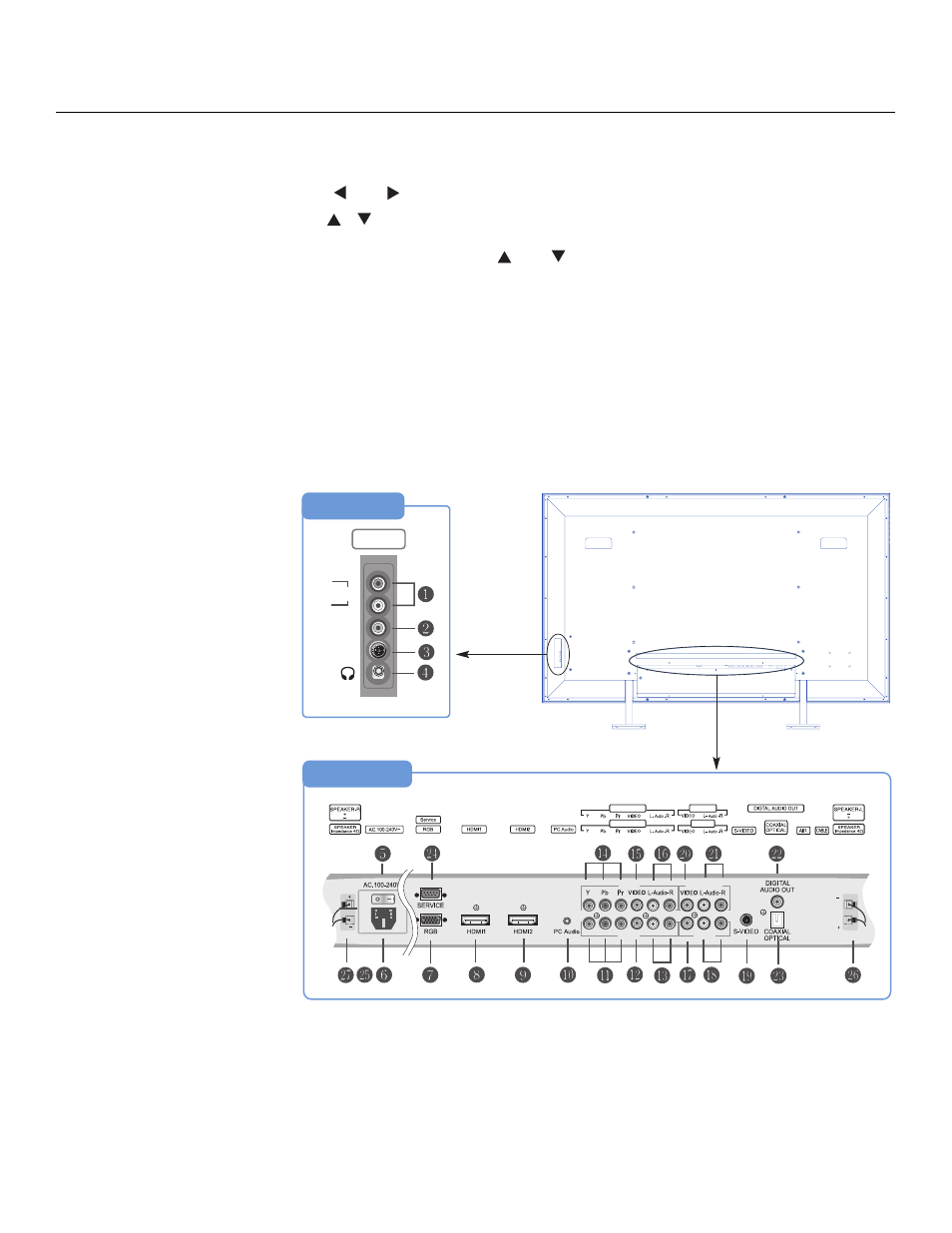

PD520 Inputs and Outputs Figure 2-2 shows the locations of the PD520 inputs and outputs.
Figure 2-2. PD520 Rear-Panel Inputs and Outputs
➤
L
R
Rear
INPUT2
INPUT4
INPUT3
INPUT4
INPUT3 INPUT1
INPUT1
S-VIDEO
VIDEO
Audio
Right Side
Monitor-Out
Monitor-Out
