20 Planar PD520 Owner’s Operating Manual
PREL
IMINA
RY
MONITOR OUT
Connection
The PD520 has stereo audio and Composite video outputs for connecting to a
second VCR or other auxiliary equipment. Connect the Monitor-OUT audio and
video jacks to the audio and video inputs of the VCR or other equipment as
shown in Figure 3-5.
You can route either the main or picture-in-picture (PIP) source signal to this
output. For more information, refer to Monitor Out on page 36.

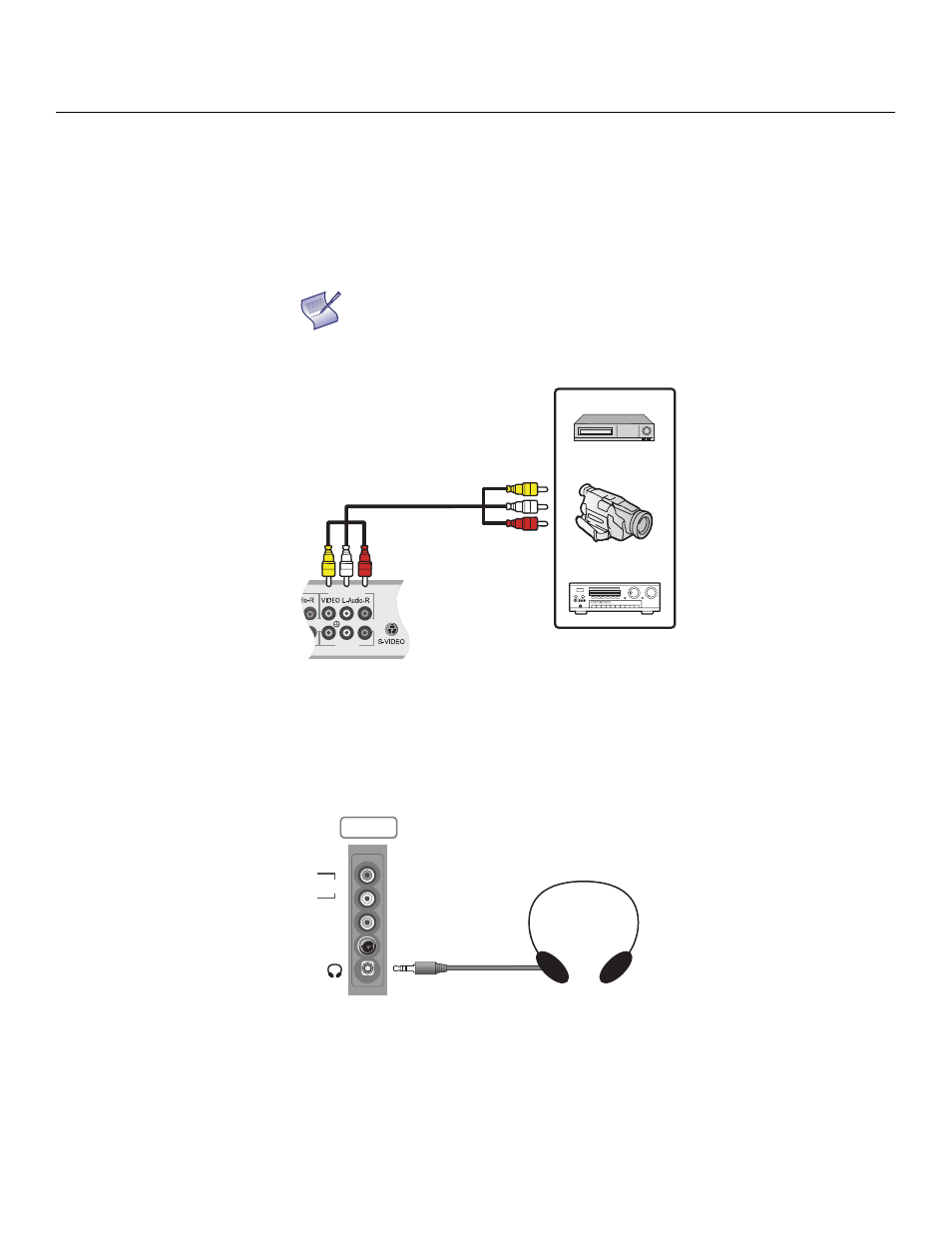

Figure 3-5. MONITOR OUT Connections
Connecting Headphones You can connect a set of headphones to the PD520 to watch a program
without disturbing others. Connect them to the headphone output located at
INPUT2; see Figure 3-6.
Figure 3-6. Connecting Headphones
➤
The audio output level is fixed. (The volume and mute
controls affect only the speaker and headphone outputs.)
Note
INPUT1
Monitor-OUT
VCR
Camcorder
A/V Receiver
➤
L
R
S-VIDEO
VIDEO
Audio
INPUT2
