Function menus
Warning display
When a warning occurs in this VTR, the warning mark
(W) blinks at the top left of the screen. If
(WARN)
is now pressed, the details of the warning can be
checked out on the LCD monitor.
When more than one warning has occurred, turn the
ADJ dial to scroll through the messages.
Hour-meter display
When (HOURS) is pressed, the hour-meter
information can be checked out on the LCD monitor.
F2
F1
Error log function
The error log mode can be selected by pressing the
button and switching the screen to
SHIFT>.
SHIFT
General description
When the following warnings have occurred while the
tape is running, the warning messages, time codes
and operating modes are saved, and a list of this
information can be read out on the LCD monitor. Up
to 99 warnings which have occurred can be saved. If
the storage capacity of 99 warnings is exceeded, the
processing that is conducted as a result is based on
the setup menu item No.015 (AUTO STEP) setting.
F1 SHIFT F2 F3 F4 F5 F6
F1 SHIFT F2 F3 F4 F5 F6
Warning mark
The warnings and hour-meter can be checked on
these menu screens. On the SHIFT menu screen,
error log files can be checked, deleted or saved onto
or loaded from IC cards.
Warning messages
which are saved
NO RF
Description
(Refer to page 118 and following.)
A blank section on the tape lasting more
than 1 second has been detected.
(During normal playback)
SV NOT LOCKED The servo has been disengaged for more
than 3 seconds. (During recording,
normal playback or editing)
LOW RF An envelope level which is about 1/3 of
normal or a CTL level which is about 1/6
of normal has been detected for more
than 1 second. (During recording, normal
playback or editing)
HIGH ERROR RATE The error rate has deteriorated, and
correction or compensation has been
applied to the video or audio playback
signals. (During normal playback)

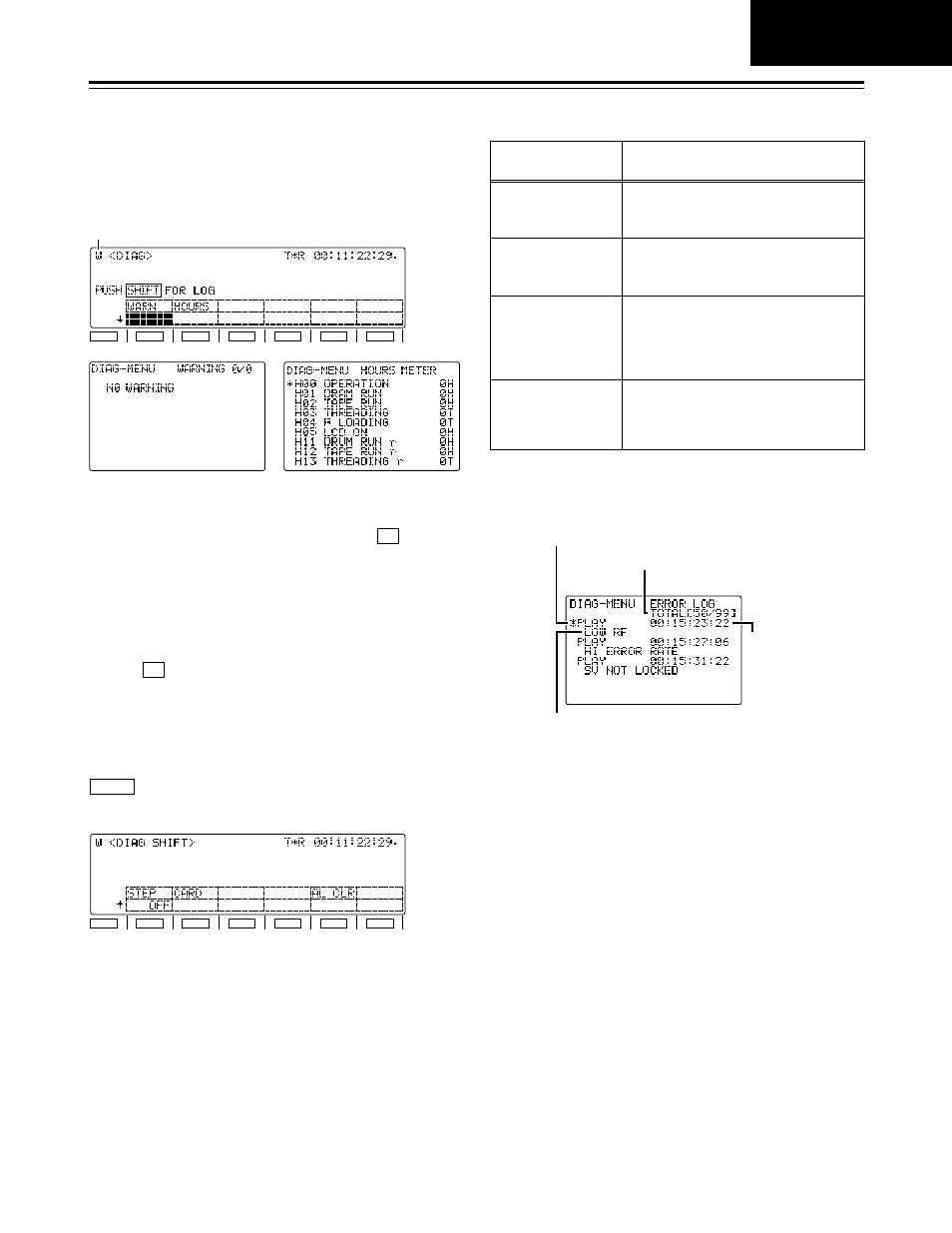

LCD monitor displays
Operation mode display
This indicates the operation mode at the point when
the warning was saved.
Warning display
This indicates the warning message which is saved.
Saved warning status display
This indicates the number of the currently displayed
warning which has been saved and the total number
of warnings which have been saved.
Time code display
This indicates the time code at the point when the
warning was saved.
Cueing up the tape to the warning point
The warning list displayed on the LCD monitor can be
scrolled by turning the ADJ dial. When the warning
occurrence point to be checked is selected and the
PREROLL button is pressed, the tape is cued up to
the position of the time code which has been saved.
Operation mode display
Warning display
Saved warning status display
Time code display
