Powerware 9315 Parallel Redundant System I & O
164202013, Rev. D 041599
FRONT
SIDE
FOAM
SUPPORT
SUPPORT
1
2
1
2
2
JACKING
BOLT
FLOOR
PROTECTOR
1
2
DOOR
CUSHION

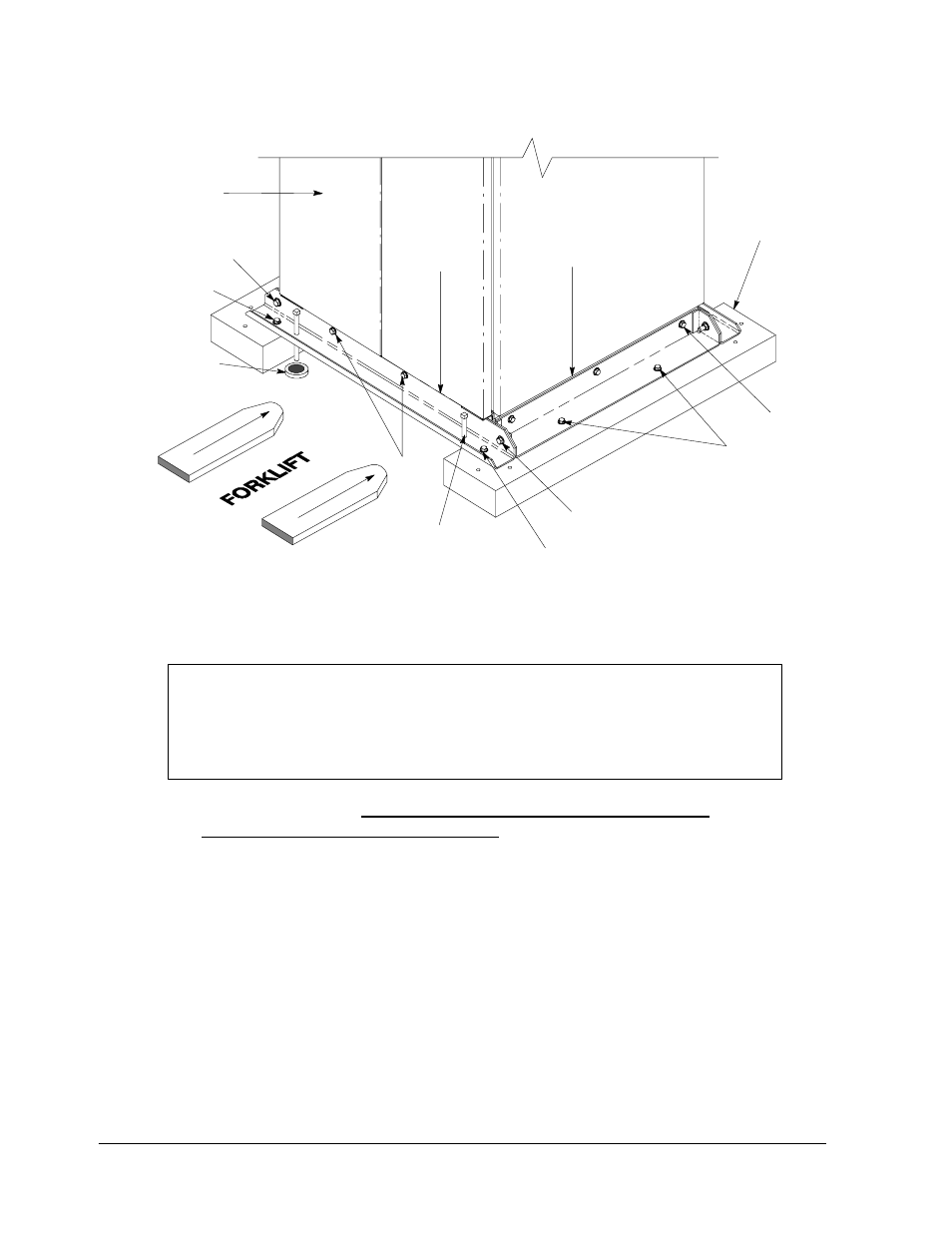

Figure 4. Removing Front and Rear Supports
WARNING:
Cabinet may fall. Do not loosen hardware attaching the side or front
supports to the cabinet base. Also, do not loosen supports from each
other. The cabinet must be lowered using jacking bolts before supports
can be removed.
6.
Carefully and evenly lower the cabinet by turning each jacking bolt
consecutively two full turns (maximum) until the supports contact the floor, and
the cabinet is no longer supported by the jacking bolts.
7.
After the cabinet is resting on the floor, remove the jacking bolts and discard or
recycle them in a responsible manner.
8.
Remove the hardware labeled “2” in Figure 4, holding the front, rear and side
supports to the cabinet base. Discard or recycle the hardware and support
brackets in a responsible manner.
9.
Install the doors removed in step 1. The parallel cabinet is now ready to be
rolled to its final location.
