EQ features
high-pass filter on-switch
Turn on High Pass filter circuitry.
continuously-variable high-pass filter control
Sweep control variable between 20Hz and 400Hz at a -18dB per octave
rate.
high-frequency Q-control with shelf-switch
Adjust the Q of the high frequency section between 3.0 (Full Counter
Clockwise) and 0.7 (Clockwise). When turned beyond the widest band-
width, the control has a switched position (Full Clockwise) that puts the
high frequency section into shelving mode.
high-frequency band amplitude and frequency controls
The inner-knob allows for up to ±15dB of boost/cut. The outer-knob
determines the center frequency of the band—adjustable from
1KHz–20KHz.
high-mid frequency Q-control
Adjust the Q of the high mid frequency section between 3.0 (Full Counter
Clockwise) and 0.7 (Full Clockwise).
high-mid frequency band amplitude and frequency controls
The inner-knob allows for up to ±15dB of boost/cut. The outer-knob
determines the center frequency of the band—adjustable from
400Hz–8KHz.
low-mid frequency Q-control
Adjust the Q of the low mid frequency section between 3.0 (Full Counter
Clockwise) and 0.7 (Full Clockwise).
low-mid frequency band amplitude and frequency controls
The inner-knob allows for up to ±15dB of boost/cut. The outer-knob
determines the center frequency of the band—adjustable from
100Hz–2KHz.
low-frequency Q-control with shelf-switch
Adjust the Q of the low frequency section between 3.0 (Full Counter
Clockwise) and 0.7 (Clockwise). When turned beyond the widest band-
width, the control has a switched position (Full Clockwise) that puts the
low frequency section into shelving mode.
low-frequency band amplitude and frequency controls
The inner-knob allows for up to ±15dB of boost/cut. The outer-knob
determines the center frequency of the band—adjustable from
40Hz–800Hz.
EQ on switch
Inserts EQ section into the input module’s signal path.This switch has no
affect on the High Pass filter system.

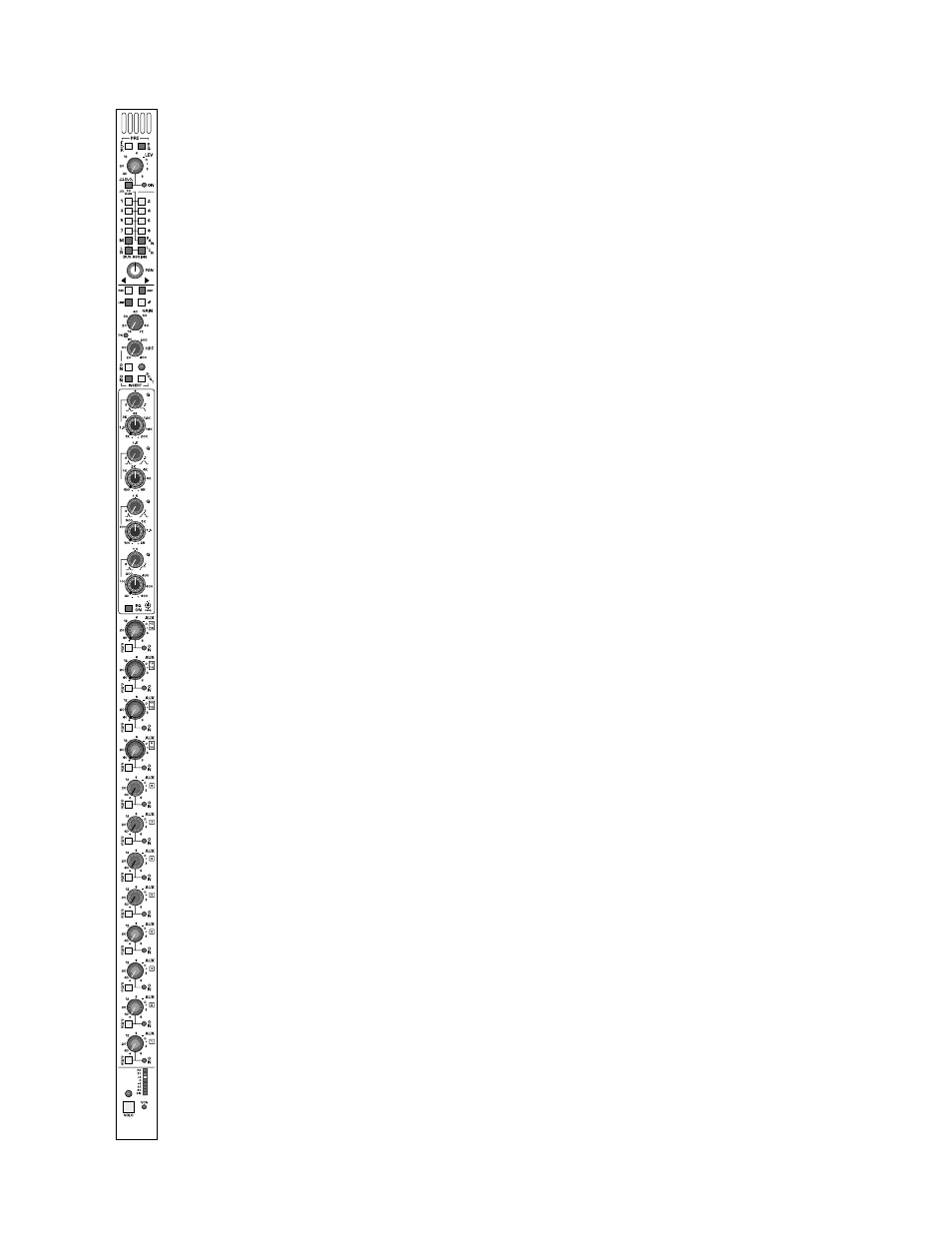

mono input module
