group output module —matrix, aux, group
LEFT/RIGHT/MONO

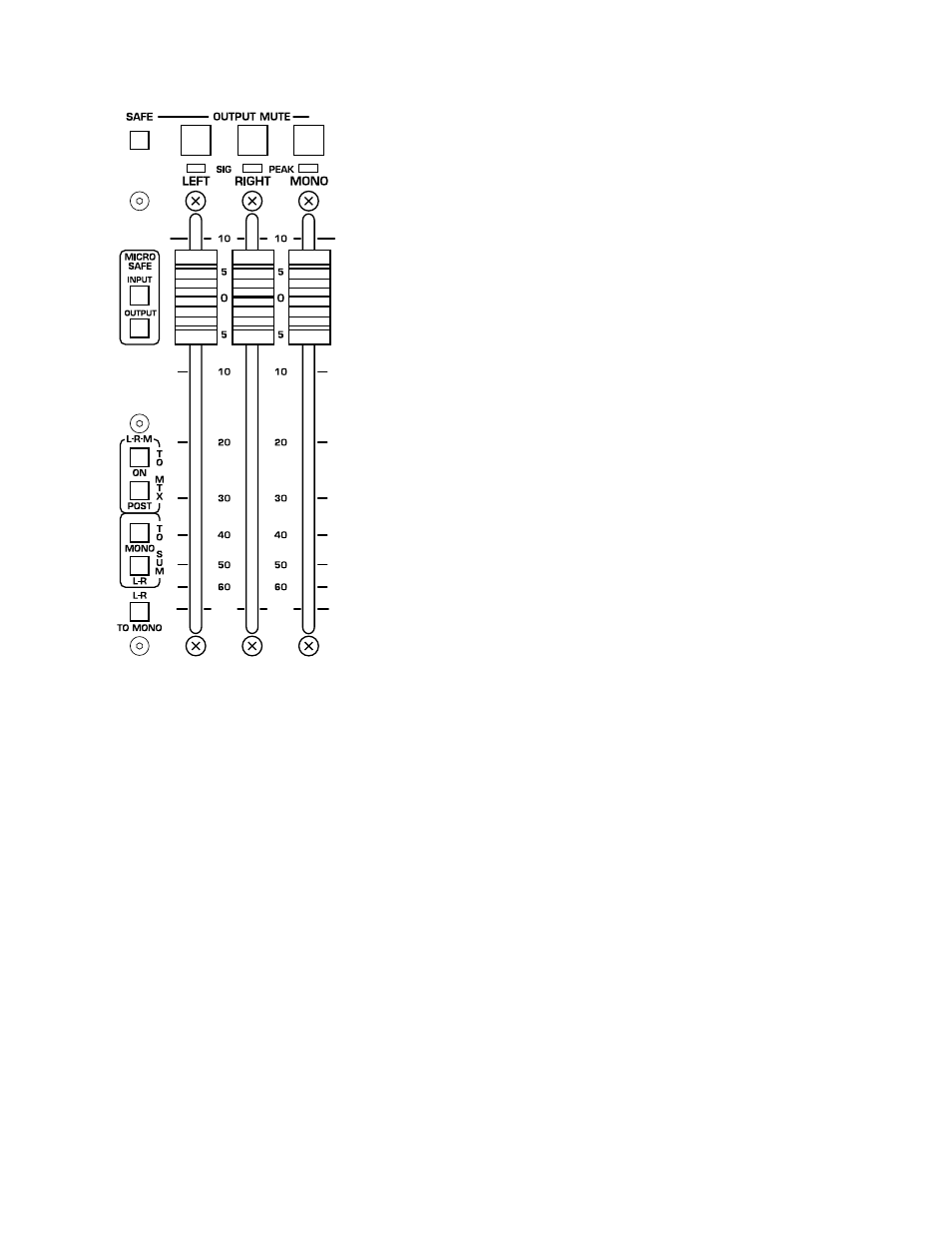

MASTER FADER BAY MODULE FUNCTIONS
illuminated mute-switches (3)
Controls mutes of main outputs.
output mute safe switch
Disables the Left, Right, and Mono Mute switches to prevent accidental
activation during a performance.
100mm faders
3 Individual Left, Right, and Mono (Center) high quality conductive plastic
faders are used.
left, right and mono peak and signal-present LEDS
Dual color LED monitors the pre fader signal levels. Signal present indi-
cation is dynamic and varies with pre fader signal level. If signal approached
3dB of causing distortion, the LED will turn RED.
left/right/mono to matrix on-switch
Activates the Left/Right/Mono send signal to the matrix section of the con-
sole. This switch will affect the Left/Right/Mono send to all 12 matrix mod-
ules.
matrix-post switch
Changes the individual left/right/mono to matrix source from the normal
pre level location to a post level send. This switch will affect the
left/right/mono send to all 12 matrix modules (8 mono, 4 stereo).
mono to sum-output switch
Will assign the post fader Mono (Center) signal to the SUM OUTPUT
XLR rear panel Connector.
L-R to sum-output switch
Will assign the post fader left and right signals to the SUM OUTPUT XLR
rear panel connector.
L-R to mono switch
Assigns the post (Internal Jumper for Pre) left and right signal to the Mono
Mix Bus.
