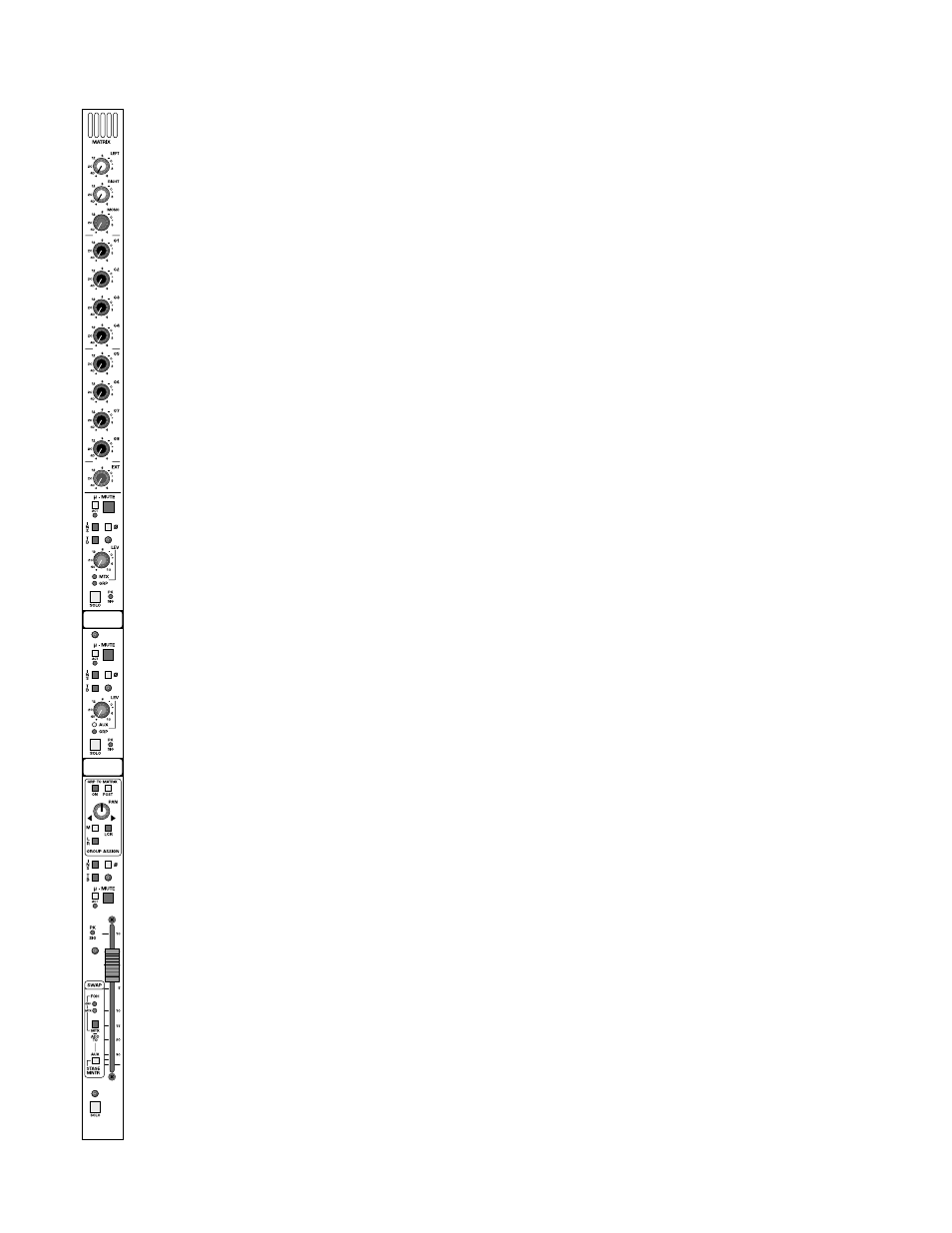

group output module —matrix, aux, group
group-assignment features
This section always receives its signal from any output block acting as the
Group Master Output. This may be the default Lower fader section or the
mid or upper control sections as indicated by LED status indicator locat-
ed within the individual output block sections. The swap controls near the
fader define the output block section. Only one section can be designated
as the Group Output section at one time.
matrix post-switch
Changes the group to matrix source from the normal pre group level loca-
tion to a post level send. This switch will affect the group send to all 12
matrix modules.
group-to-matrix on-switch
Activates the group send signal to the matrix section of the console. This
switch will affect the group send to all 12 matrix modules.
mono-assignment switch
Direct assignment of post group level control to mono mix bus.
left-/right-assignment switch
Assigns post pan pot signals to left and right mix buses.
LCR switch
Reconfigures pan pot to LCR operation,requires the M and LR assignment
switches to also be selected.
pan control
Adjust panoramic image between the Left and Right output buses When
LCR is selected, provides true LCR panning between Left and Center
and Center and Right buses.
