Protocol type-code
This section provides Protocol type-code function from Layer 3 Managed Switch; this function provides Protocol type-code
Configuration and view the ACL table information. The Protocol type-code screen in
Figure 4-42 appears and Table 4-13
descriptions the Protocol type-code Configuration Web page objects.

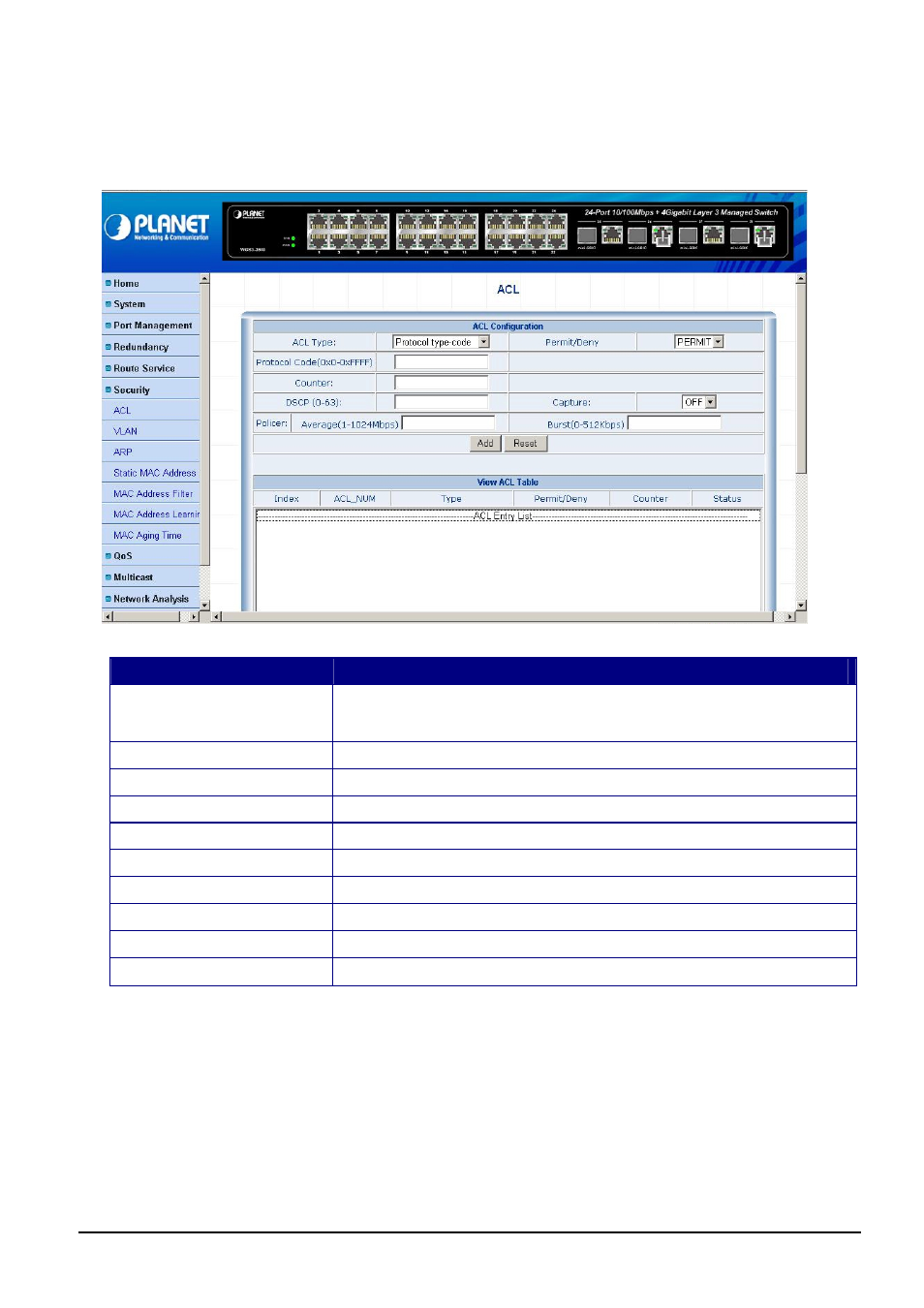

Figure 4-42 Protocol type-code Configuration Web Page screen
Table 4-13 Descriptions of Protocol type-code Web Page screen Objects
Object Description
ACL Type: Allow choose different ACL type that shown as below:
Standard IP ACL, Extended IP ACL, Protocol type-code, Standard MAC ACL
Extended MAC ACL
PERMIT/ DENY Allow choose permit or deny for different ACL type.
Protocol Code(0x0-0xFFFF) Allow input the protocol code.
Counter: Allow define the value for the counter function.
DSCP ( 0-63): Allow input the value of DSCP and the available range is 0-63.
Capture Allow to choose disable (OFF) or enable (ON) the capture function.
Policer: Average(1-1024Mbps) Allow to defined the value of Average and the available range is 1-1024Mbps.
Burst (0-512Kbps) Allow to defined the value of Burst and the available range is 0-512Kbps.
Add Click this button to add specific ACL setting to ACL table.
Reset Click this button to remove specific ACL setting from ACL table.
