- 45 -
Extended IP ACL
This section provides Extended IP ACL function from Layer 3 Managed Switch; this function provides Extended IP ACL
Configuration and view the ACL table information. The Extended IP ACL screen in
Figure 4-41 appears and Table 4-12
descriptions the Extended IP ACL Configuration Web page objects.

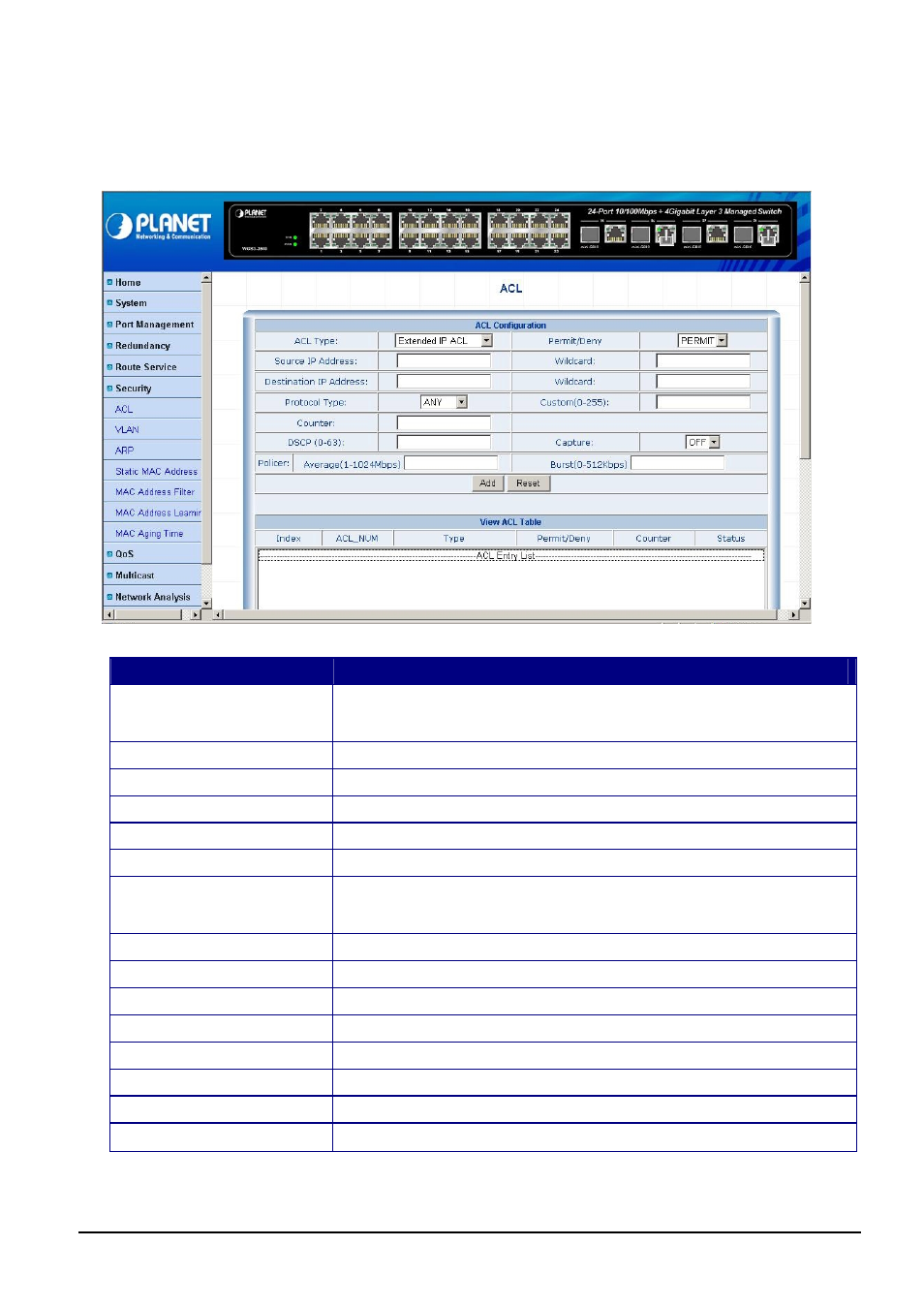

Figure 4-41 Extended IP ACL Configuration Web Page screen
Table 4-12 Descriptions of Extended IP ACL Web Page screen Objects
Object Description
ACL Type: Allow choose different ACL type that shown as below:
Standard IP ACL, Extended IP ACL, Protocol type-code, Standard MAC ACL
Extended MAC ACL
PERMIT/ DENY Allow choose permit or deny for different ACL type.
Source IP Address: Allow input the source IP address.
Wildcard: Allow input the value of wildcard for source IP address.
Destination IP Address Allow input the destination IP address.
Wildcard: Allow input the value of wildcard for destination IP address.
Protocol Type Allow choose different protocol type for management, the available options are
ANY, OTHER, AHP, EIGRP, ESP,GRE, ICMP, IGMP, IGRP, IP, IPINIP, NOS,
OSPF, PCP, PIM,TCP,UDP
Custom (0-255): Allow input the value of customer and the available range is 0-255.
Counter: Allow define the value for the counter function.
DSCP ( 0-63): Allow input the value of DSCP and the available range is 0-63.
Capture Allow to choose disable (OFF) or enable (ON) the capture function.
Policer: Average(1-1024Mbps) Allow to defined the value of Average and the available range is 1-1024Mbps.
Burst (0-512Kbps) Allow to defined the value of Burst and the available range is 0-512Kbps.
Add Click this button to add specific ACL setting to ACL table.
Reset Click this button to remove specific ACL setting from ACL table.
