Connecting up
02
9
En

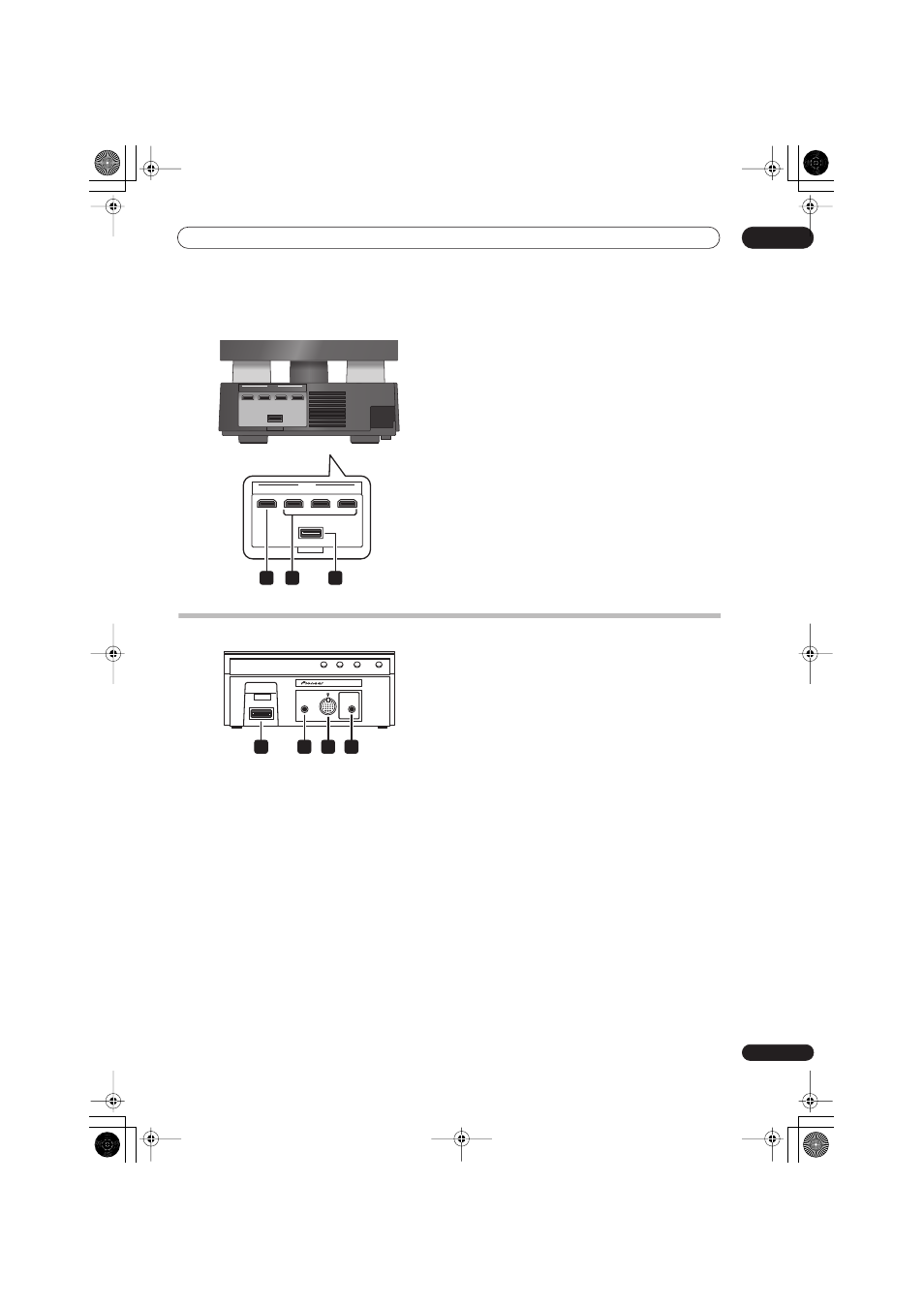

Rear panel
8
HDMI OUT connector
Connect to a television that has an HDMI terminal.
9
HDMI IN connectors (x3)
Use high-quality audio/video connection with compatible
HDMI devices.
To select this input, choose
HDMI 1
to
HDMI 3
.
10 SYSTEM connector
Connect to the display unit.
Back of display unit
1
SYSTEM connector
Connect to the receiver subwoofer.
2
F.AUDIO input
To listen to audio from an external component, connect
with a stereo mini-plug cable. Once connected, the input
automatically changes to
Front Audio In
.
3
iPod input terminal
Use to connect your Apple iPod as an audio source.
When you connect an iPod, the input automatically
changes to
iPod
.
4
MCACC SETUP MIC jack
Use to connect the supplied microphone for the Auto
MCACC setup (see page 23).
HDMI
OUT
IN 3
SYSTEM
IN 2
IN 1
HDMI
OUT
IN 3
SYSTEM
IN 2
IN 1
8
9
10
F.AUDIO
DISPLAY UNIT
iPod
MCACC
SETUP MIC
SYSTEM
1
2
3
4
