HDMI Control 09
37
En
Chapter 9
HDMI Control
By connecting this unit to an HDMI Control-compatible
Pioneer plasma television or the HDD/DVD recorder with
an HDMI cable, you can control this unit from the remote
control of a connected plasma television, as well as have
the connected plasma television automatically change
inputs in response to operations carried out on this unit.
Refer to the operating instructions for your plasma
television for more information about which operations
can be carried out by connecting via HDMI cable.
• You cannot use this function with components that
do not support HDMI Control.
• We cannot guarantee this unit will work with HDMI
Control-compatible components other than those
made by Pioneer.
Important
• Press to set the remote control to receiver
control mode in order to operate the receiver
subwoofer (make sure that the LCD displays the
RECEIVER screen, as shown below).

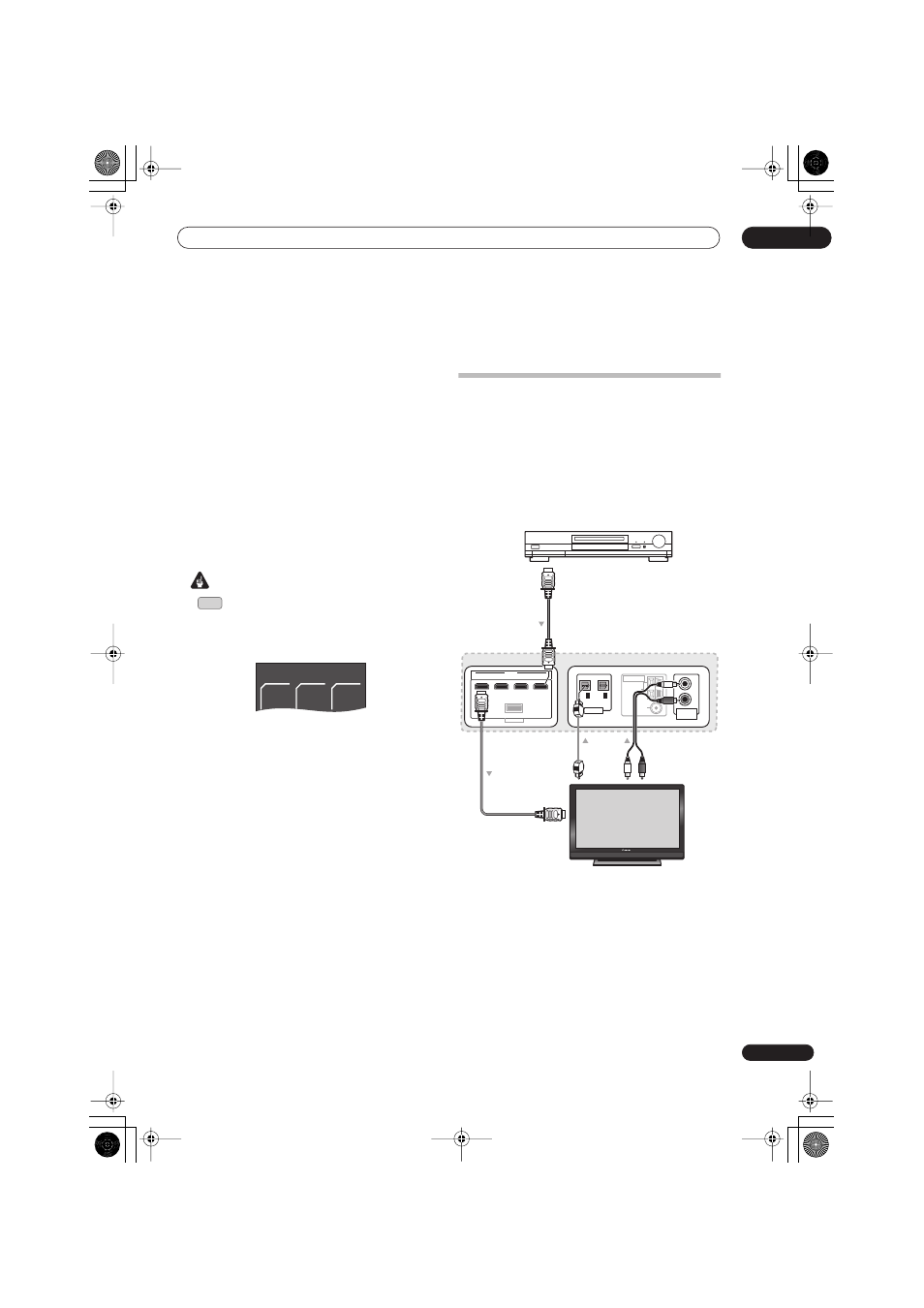

Making the HDMI Control connections
You can use synchronized operation for a connected
plasma television and up to three other components
(including a maximum of two recorders or players).
Be sure to connect the plasma television’s audio cable to
the audio input of this unit.
• If you use a commercially available HDMI cable,
check whether the cable supports the HDMI 1.3
standard. Otherwise, the HDMI Control function may
not operate properly.
RCV
RECEIVER
SURR
ADV
SURR
F.S.
SURR
HDMI
OUT IN 3
SYSTEM
IN 2 IN 1
R
L
AM LOOP
FM
UNBAL 75
Ω
OPTICAL
IN 1 IN 2
ANALOG
AUDIO IN
ANTENNA
DIGITAL
From Audio output
or
From digital audio
output (optical)
To HDMI input
From HDMI outut
Receiver subwoofer
Rear panel Side panel
HDMI Control-compatible
Pioneer HDD/DVD recorder,
Blu-ray disc player or DVD player
HDMI Control-compatible
Pioneer plasma television
