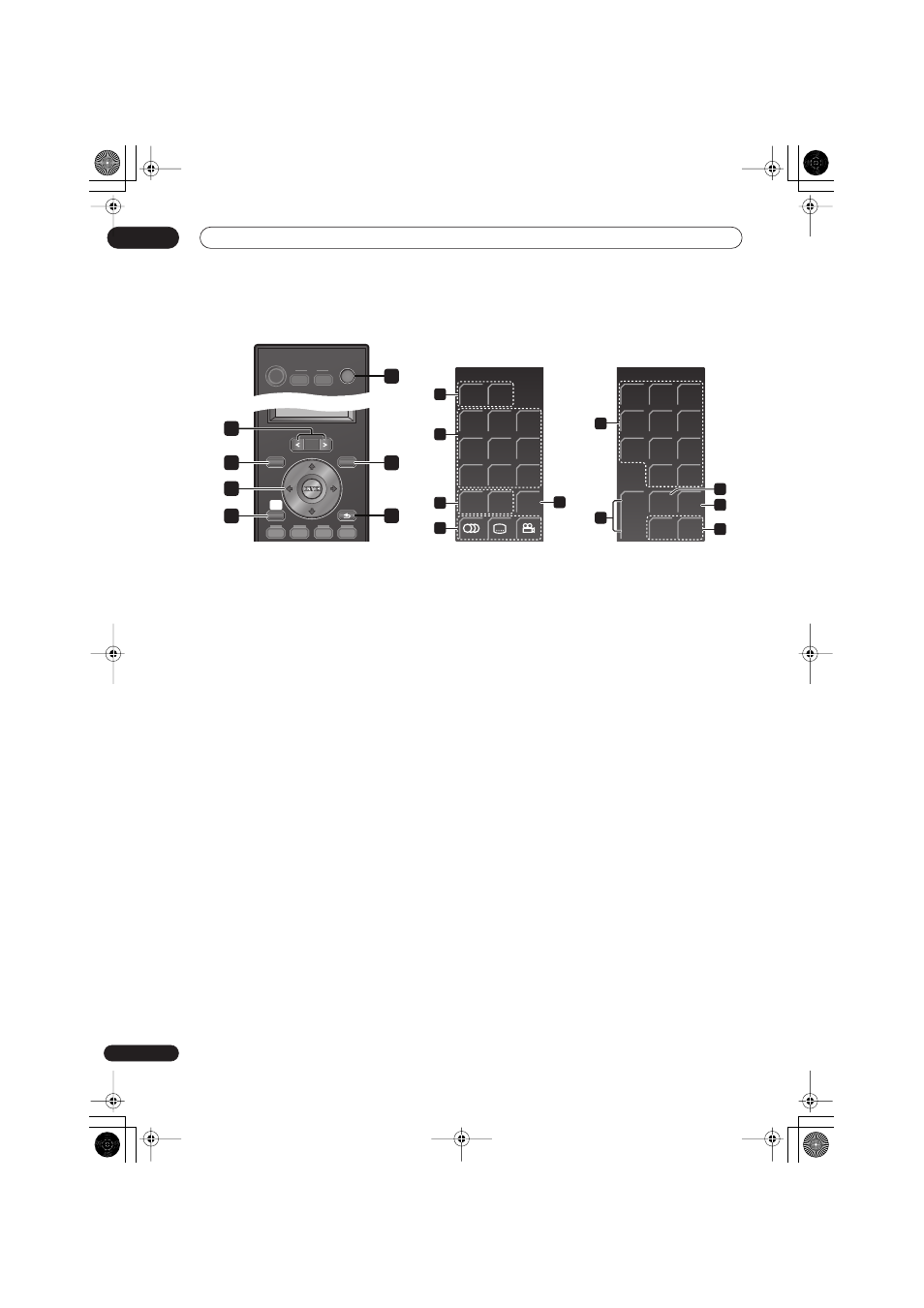

Operating a Pioneer HDD/DVD Recorder
1 SOURCE
Switches the power for a HDD/DVD recorder to
On/Standby.
2 PAGE
Switch between pages on the LCD touch screen when
multiple pages are present.
3 TOP MENU / DISC NAVIGATOR
Press to display the top menu if a DVD-Video or finalized
DVD-R/-RW (Video) disc is loaded, or the Disc Navigator
screen.
4 MENU
Press to display the disc menu if a DVD-Video, finalized
DVD-R/-RW or finalized DVD+R/+RW disc is loaded.
5 / / / (cursor buttons) and ENTER
Use to navigate all on-screen displays. Press ENTER to
select the currently highlighted option.
6 HOME MENU
Press to display the Home Menu, from which you can
navigate all the functions of the recorder.
7 RETURN
Press to go back one level in the on-screen menu or
display.
LCD touch screen
8 HDD
Press to select the hard disk (HDD) for recording and
playback.
DVD
Press to select the DVD for recording and playback.
9 Playback controls
Press to start playback.
Press to stop playback.
Press to pause playback or recording.
/
Press to start reverse or forward scanning. Press
again to change the speed.
/
Press to skip to the previous or next title/ chapter/
track/folder; or to display the previous or next menu
page.
/ , /
While paused, press and hold to start slow-motion
playback. Press repeatedly to change the playback
speed.
While paused, press to advance a single frame in
either direction.
10 CM BACK (commercial back)
Press repeatedly to skip progressively backward
through the video playing.
CM SKIP (commercial skip)
Press repeatedly to skip progressively forward
through the video playing.
