Connecting up 02
12
En
Caution
• These speaker terminals carry HAZARDOUS LIVE
voltage . To prevent the risk of electric shock when
connecting or disconnecting the speaker cables,
disconnect the power cord before touching any
uninsulated parts.
• Do not connect any speakers other than those
supplied to this system.
• Do not connect the supplied speakers to any
amplifier other than the one supplied with this
system. Connection to any other amplifier may result
in malfunction or fire.
• After connecting the plugs, pull lightly on the cables
to make sure that the ends of the cables are securely
connected to the terminals. Poor connections can
create noise and interruptions in the sound.
• If the cables’ wires happen to be pushed out of the
terminals, allowing the wires to come into contact
with each other, it places an excessive additional
load on the amp. This may cause the amp to stop
functioning, and may even damage the amp.
5 If you have a DVD player or other source 1
component you want to connect, connect it now before
connecting the power cord in the next step.
See page 33 for how to connect a digital source
component.

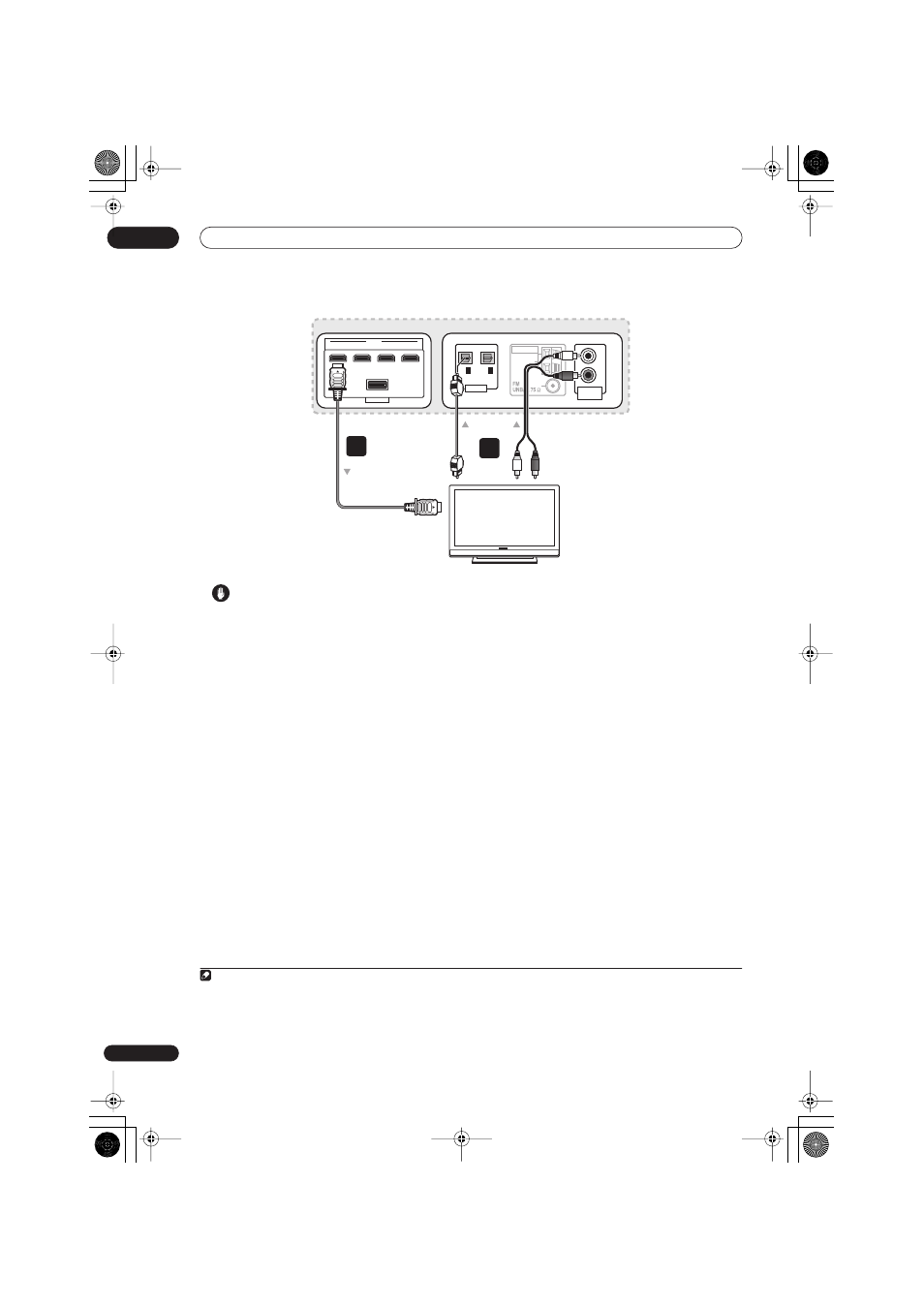

6 Connect the receiver subwoofer to your TV.
• Connect the HDMI OUT jack on receiver subwoofer
to an HDMI input on your TV.
7 Connect an audio cable from your TV to the
receiver subwoofer.
• To listen to TV audio on this unit, you must connect
the TV’s audio output to an audio input jack on this
unit. You can connect by either a digital (optical) or
analog audio cable. For digital audio, connect to
DIGITAL OPTICAL IN 1 on the receiver subwoofer.
To use the HDMI Control function when you are
connected to a supported Pioneer plasma television,
you must connect via HDMI.
• You must first set ‘ TV Input ’ to switch the audio from
a plasma television with the HDMI Control function
or to switch the input source of this unit to TV audio
and operate your TV with the supplied remote control.
For more information, see
Operating Pioneer plasma
televisions and TVs on page 17 and Audio input
settings from plasma televisions (TV Input) on
page 39.
8 Connect the power cord. 2
• Connect each power cord to the AC inlet on the
receiver subwoofer. Connect each power cord to a
wall socket in the following order.
1. Receiver subwoofer
2. TV
• Run the cords that are connected to the side panel of
the receiver subwoofer over the back side of the unit,
and replace the cover on the side panel.
HDMI
OUT IN 3
SYSTEM
IN 2 IN 1
R
L
AM LOOP
OPTICAL
IN 1 IN 2
ANALOG
AUDIO IN
ANTENNA
DIGITAL
TV
7 6
From Audio output
or
From digital audio
output (optical)
To HDMI input
Receiver subwoofer
Rear panel Side panel
Note
1 Make sure to connect a TV or monitor (for video sources) to take advantage of this system’s home theater potential. Please refer to the
instruction manual supplied with your TV or monitor for connection details.
2 • Do not use any power cord other than the one supplied with this system.
• Do not use the supplied power cord for any purpose other than connecting to this system.
• After connecting this unit to an AC outlet, a 15-second initialization process begins. You cannot carry out any operations during initialization.
The HDMI indicator on the display unit blinks during initialization, and you can turn this unit on once it has stopped blinking.
