Connecting up 02
8
En
Chapter 2
Connecting up

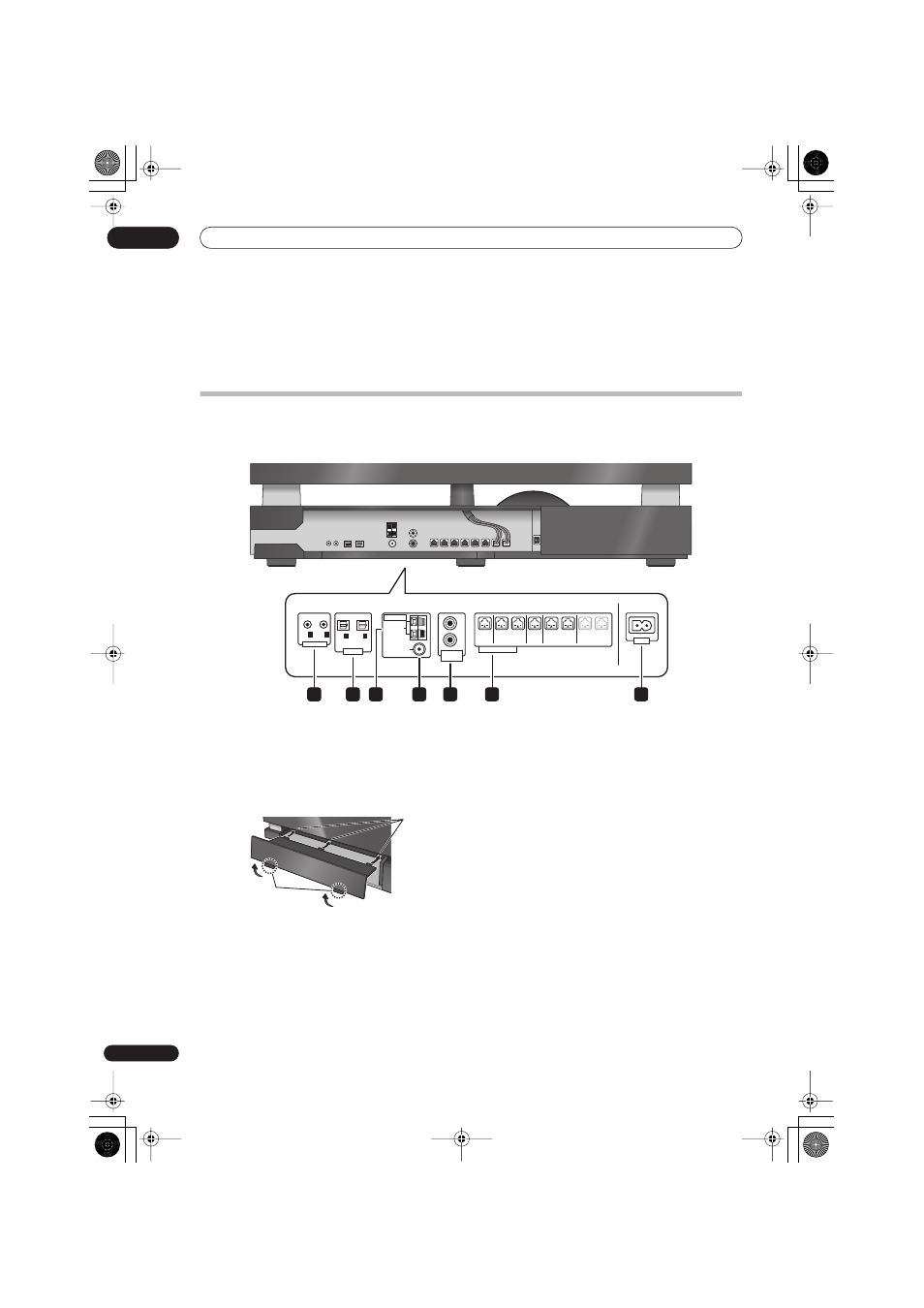

Receiver subwoofer
Side panel
• There is a cover over the connectors on the side
panel.
A. When making connections, lift the two hooks and
remove the cover.
B. Once connections are finished, line up the three
positions and place the cover back in its original
position.
1 CONTROL OUT jacks (x2)
Connect other Pioneer components with the supplied
control cable .
2 DIGITAL OPTICAL IN jacks (x2)
To listen to optical digital audio, change the input to
Digital 1 or Digital 2 .
When the digital output jacks of your TV are connected to
these jacks, set ‘
TV Input ’ (see page 39).
3 AM LOOP antenna terminal
4 FM antenna socket
5 ANALOG AUDIO IN jacks
Handle sound from an external component by using
stereo audio code. To listen to analog audio, change the
input to
Analog .
When the analog output jacks of your TV are connected
to these jacks, set ‘
TV Input ’ (see page 39).
6 SPEAKERS terminals
Match the colors of the speaker cords to their respective
connectors.
7 AC IN – Power inlet
FRONT
R
R
L
R L L R L
AM LOOP
FM
UNBAL 75
Ω
FRONT CENTER SURROUND SUBWOOFER OPTICAL
IN 1 IN 2 OUT 1 OUT 2
SPEAKERS (8 Ω )
ANALOG
AUDIO IN
ANTENNA
DIGITAL
CONTROL
1 2 5 6 7 4 3
AC IN
A
B
