Other connections 08
33
En
Chapter 8
Other connections
Important
• When making or changing connections on the side
panel of this unit, be sure to switch power off and
disconnect the power cord from the wall socket.
After completing all connections, connect the power
cord to the wall socket.

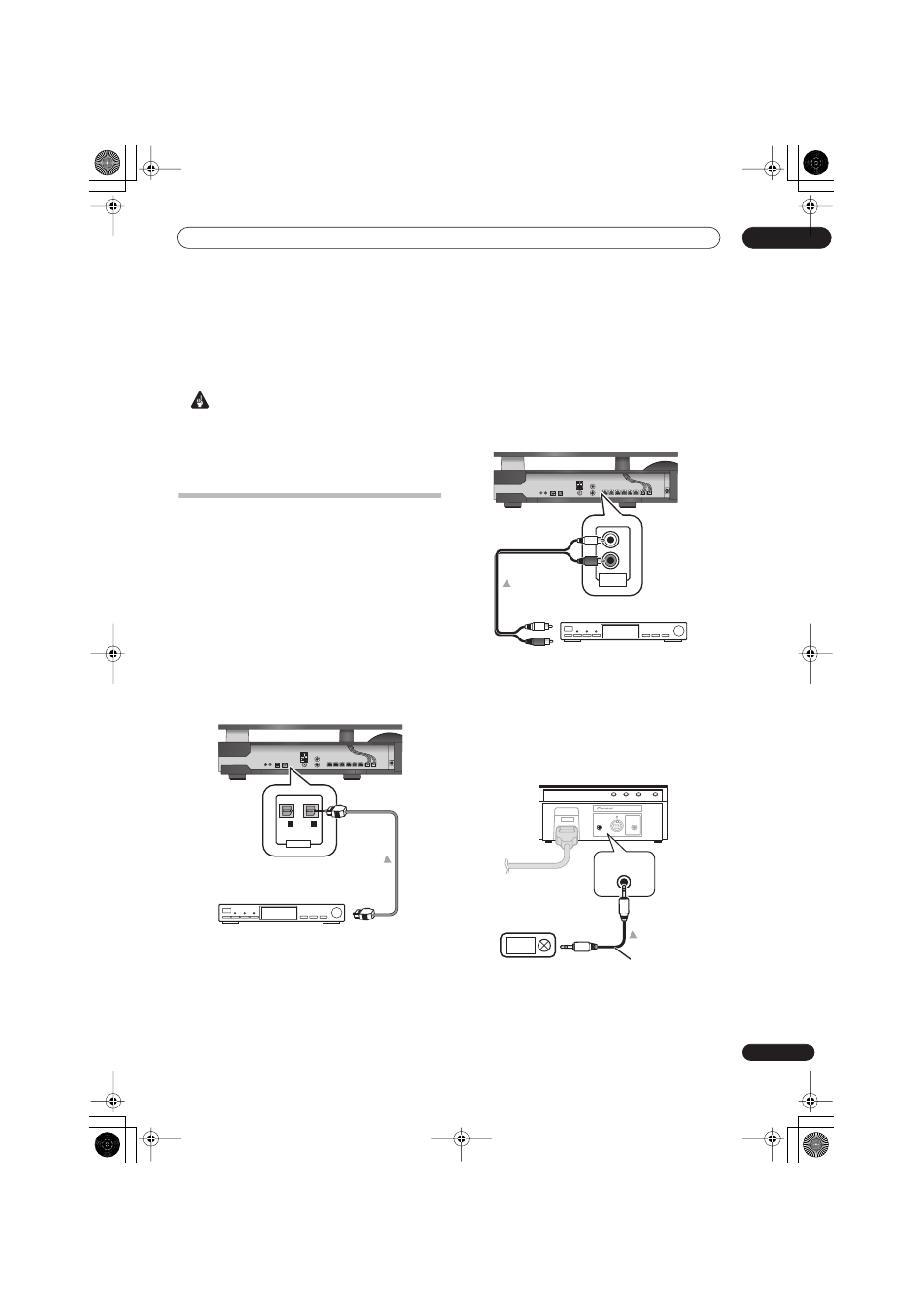

Connecting auxiliary components
You can connect both analog and digital external audio
sources to this system. Digital audio sources include
digital satellite receivers, CD recorders, etc.
We recommend using an HDMI cable to connect
sources that have HDMI terminals. For more information
see
Connecting using HDMI on page 35.
To listen to audio from a TV, connect the TV’s audio cable
to one of the inputs on this unit.
Connecting for digital audio
This system has optical-type digital inputs. Use these to
connect external components, such as your MD or CD
recorder.
• Connect the OPTICAL IN 2 jack on the side panel to
the optical output of an external playback component.
These include digital components such as an MD player,
digital satellite, or a game system.
You can also use the OPTICAL IN 1 jack to connect
external components when not using it for sound input
from a TV.
Connecting an analog audio component
You can use the ANALOG AUDIO IN jacks to connect an
analog audio component, such as a tape player.
You can use the F.AUDIO input jack on the display unit
to easily playback audio from a digital audio player or PC.
Use a stereo mini-plug cable to connect a source to the
display unit.
• When you connect a cable to the F.AUDIO jack, this
unit’s input automatically switches to Front Audio
In .
MD, CD Recorder, etc.
From digital audio
output (optical)
OPTICAL
IN 1 IN 2
DIGITAL
Side panel
Receiver subwoofer
From Audio output
R
L
ANALOG
AUDIO IN
Side panel
Receiver subwoofer
Tape player, MD, DAT, etc.
F.AUDIO
DISPLAY UNIT
iPod MCACC SETUP MIC SYSTEM
F.AUDIO
Digital audio player, etc.
Display unit
From analog
audio output
Stereo mini-plug cable
