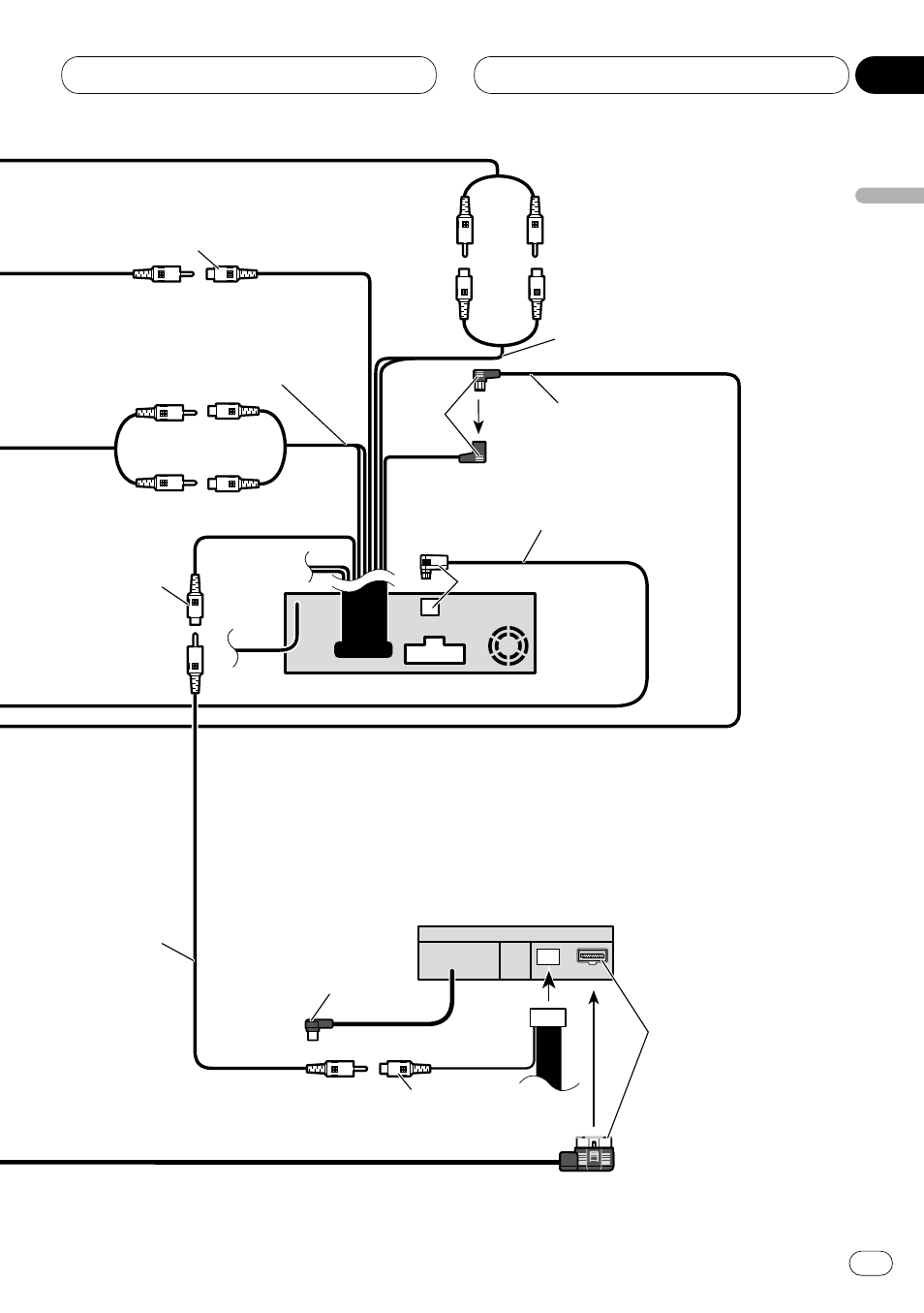

Connecting the units
En 95
English
Español
Deutsch
F
rançais
Italiano
Nederlands
13
Section
This product
Rear video output
(REAR VIDEO OUTPUT)
(Yellow)
15 cm
23 cm
Optical cable (supplied with the
multi-channel processor)
Right (Red)
Left (White)
Not used.
AV system display
(e.g. AVX-7300)
(sold separately)
1.5 m
15 cm
15 cm
Video input
(VIDEO INPUT)
(Yellow)
RCA cable
(supplied)
15 cm
Rear audio output
(DVD REAR MONITOR
OUTPUT)
Right (Red) Left
(White)
Front video
output (FRONT
VIDEO OUTPUT)
(Yellow)
Subwoofer output or non fading
output (SUBWOOFER OUTPUT
or NON-FADING OUTPUT)
Blue
Black
Red
IP-BUS cable (supplied with
the multi-channel processor)
