Philips DSR 300/00 User Manual
Page 13

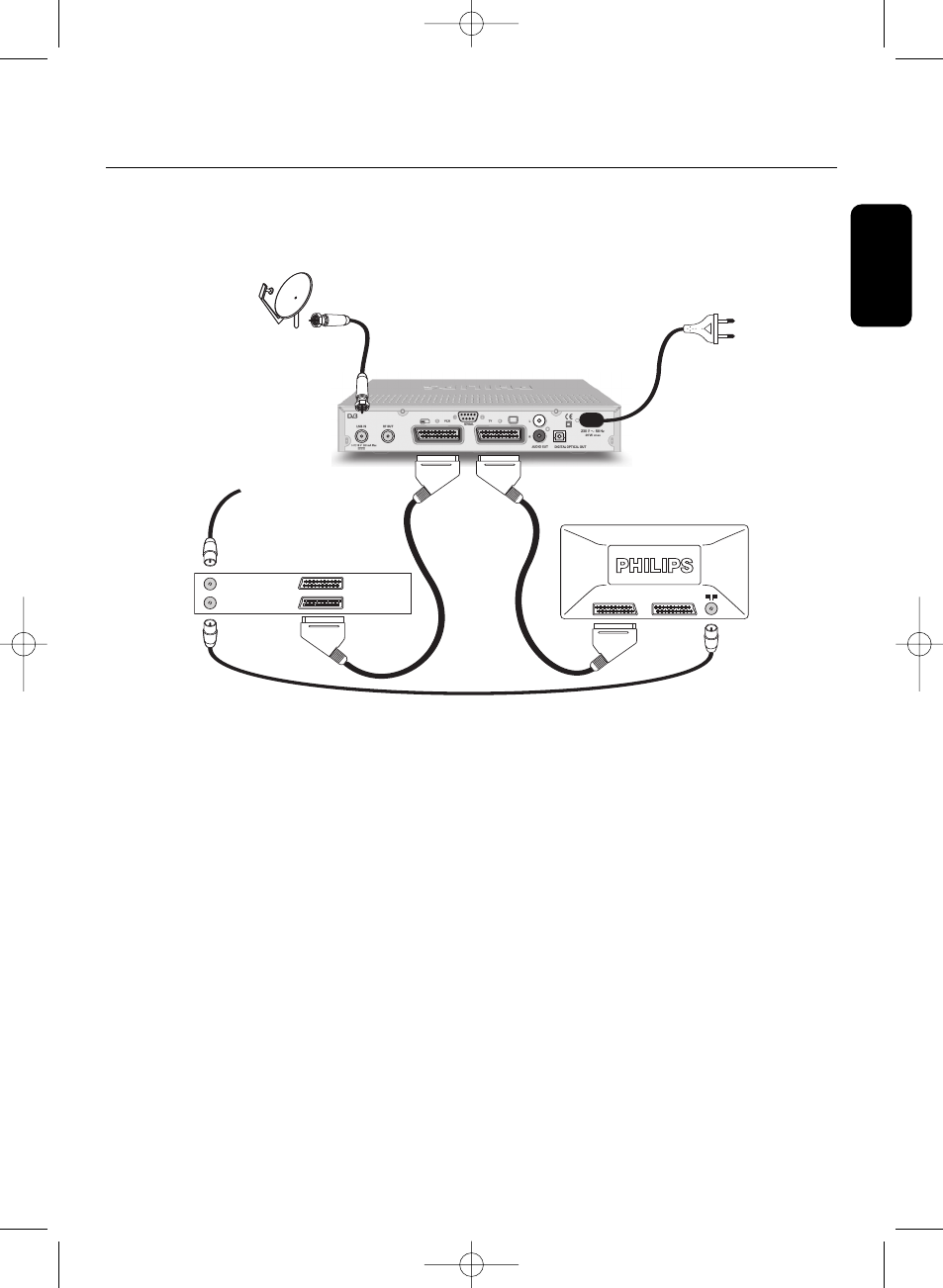

4.2
Connecting to a TV and a VCR/DVD player using
the SCART Support
Note: for best DVD/VCR viewing, connect the DVD/VCR SCART EXT 1 directly to the TV SCART.
English
CONNECTING YOUR RECEIVER 13
TV set
VCR/DVD
Satellite Receiver
Cable or Off-air Antenna
IN FROM ANT
to AC outlet
OUT TO ANT
EXT 1
EXT 2
SCART
Satellite
Dish Antenna
Doc_DSR300.qxd 29/11/04 13:19 Page 13
