10/100 Network In a Box
Getting to Know the EtherFast
10/100 Network In a Box
The EtherFast 10/100 LAN Card
You will install one EtherFast 10/100 LAN Card into each computer you wish
to network.
The Card’s LEDs
Link/Act The Link LED will illuminate when the card has been suc-
cessfully connected to a network and flicker when data is
being transmitted or received over the network.
100 The 100 LED will illuminate when
the card is operating at 100Mbps.
If the 100 LED is not illuminated
and the PC is powered on, the card
is operating at 10Mbps.
The Card’s RJ-45 Port
The RJ-45 Port is where you will connect your network cabling. See page 66 for
detailed information on cabling.
3
Linksys EtherFast ® Series
Contents for the 10/100 Network in a Box

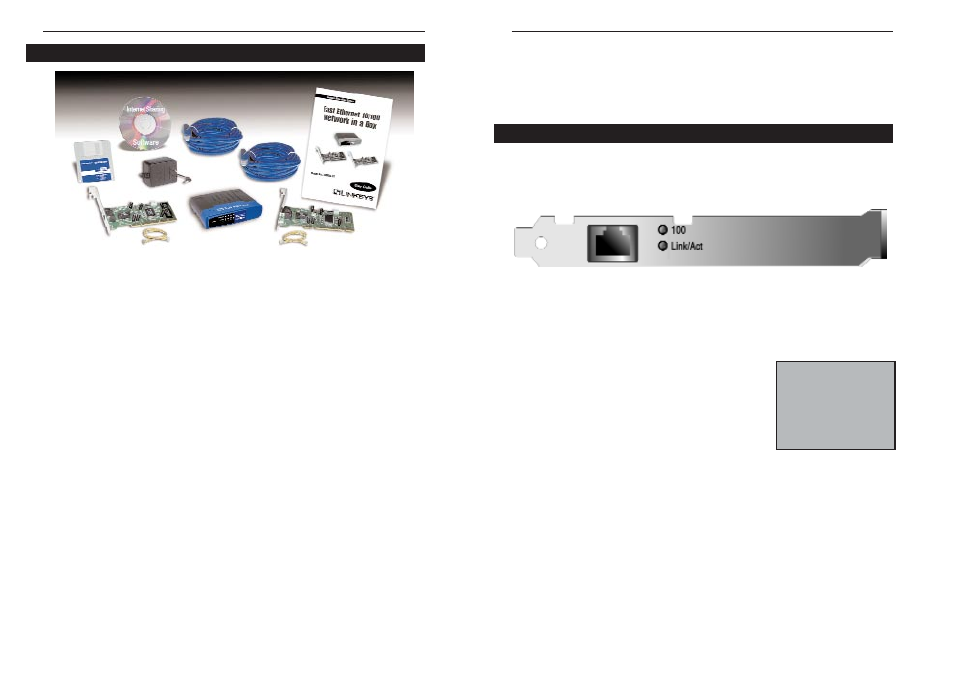

• Two EtherFast 10/100 LAN Cards (version 4)
• Two Wake-on-LAN wires
• One EtherFast 10/100 5-Port Workgroup Hub (version 2)
• Two Category 5 Network Cables
• One 3.5” Driver Disk
• Internet-Sharing Software
• One AC Adapter
• One User Guide
2
N No otte e:: Some 10/100 LAN
Cards may have the 100
LED labeled Speed. The
LEDs all operate as
shown above, however,
regardless of how they’re
labeled.
