B-39
OPERATION
B-39

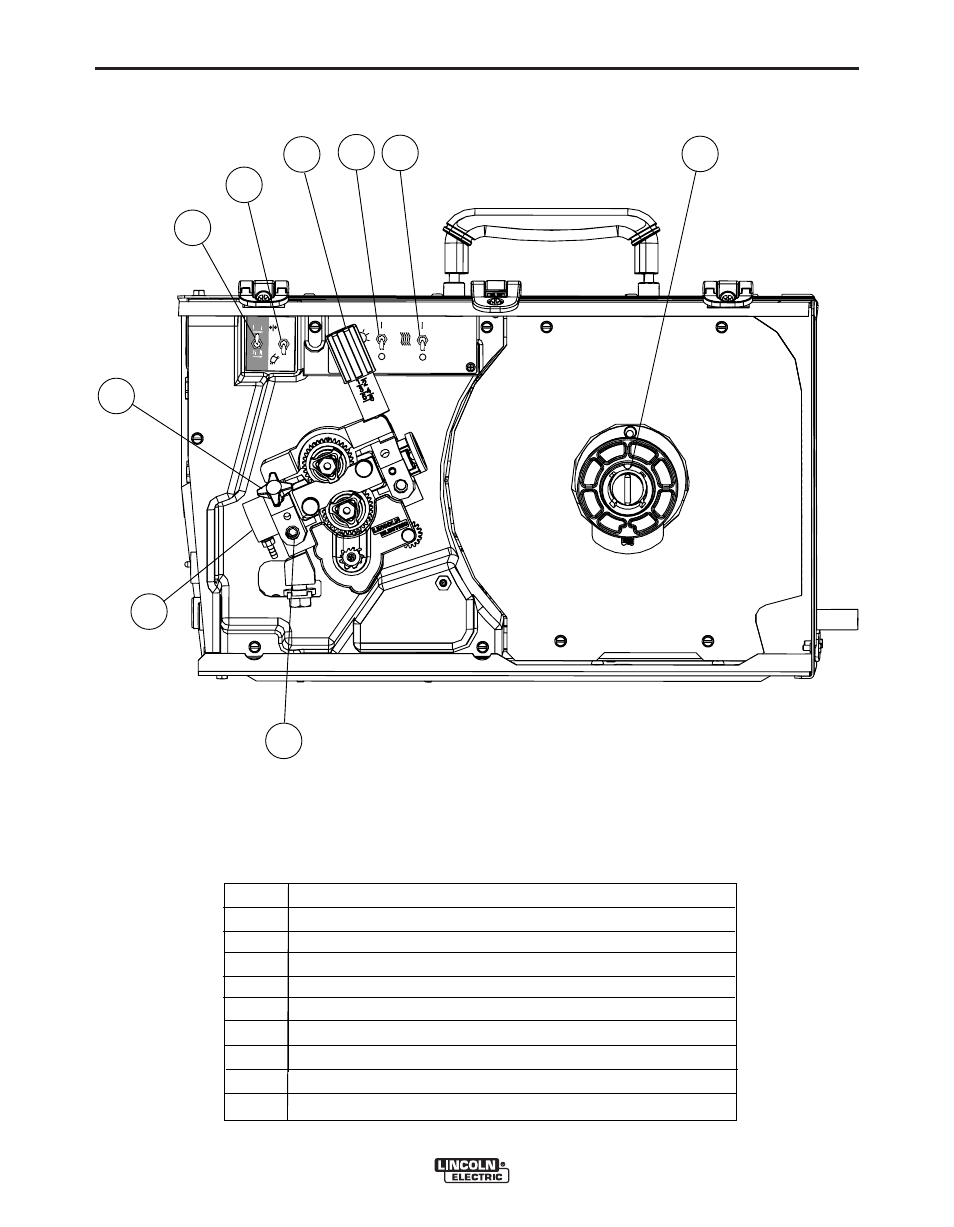

INTERNAL CONTROLS
(FOR CODE 11312)
POWER FEED™ 25M
2-STEP
4 STEP
1
2 Step / 4 Step Trigger Switch
2
Cold Feed / Purge Switch
3
Wire Drive Pressure Arm
4
Internal Light Switch
5
Internal Heater Switch
6
Spindle Brake
7
Gun Bushing
ITEM
DESCRIPTION
1
9
8
7
6
3
2
8
Thumb Screw for securing the welding Gun
9
Socket Head Cap Screw for securing the Gun Bushing
HEATER
ON
OFF
ON
COLD
FEED
GAS
PRUGE
OFF
4
5
