POWER FEED™ 25M
START OPTIONS
END OPTIONS
SET
SETUP
IR PORT
CC Stick Soft
WAVEFORM CONTROL TECHNOLOGY
Stick
WELD MODE
ARC CONTROL
I
I
ARC FORCE
(Soft)-10.0 to
(Crisp)+10.0
DESCRIPTION
START TIME:
0 to 10 seconds
FUNCTION
If no remote control is installed,
this control sets the time for
the weld output to ramp up or
down from a preset Start cur-
rent to the preset Weld current.
Use the WFS/AMP knob to
adjust Start current while the
Start Options LED is displayed.
No arc ending options are active for
SMAW (Stick) welding modes.
PROCESS
Stick Soft(7018)
Stick Crisp(6010)
MODE
1
2
CC STICK MODES
START OPTIONS
END OPTIONS
ARC CONTROL
Lower values will provide less short
circuit current and a softer arc.
Higher settings will provide a higher
short circuit current, a more forceful
arc and possibly more spatter.
194 0
WFS AMPS VOLTS TRIM
LESS
AMPS
MORE
AMPS
OUTPUT
OFF
OUTPUT
ON
n

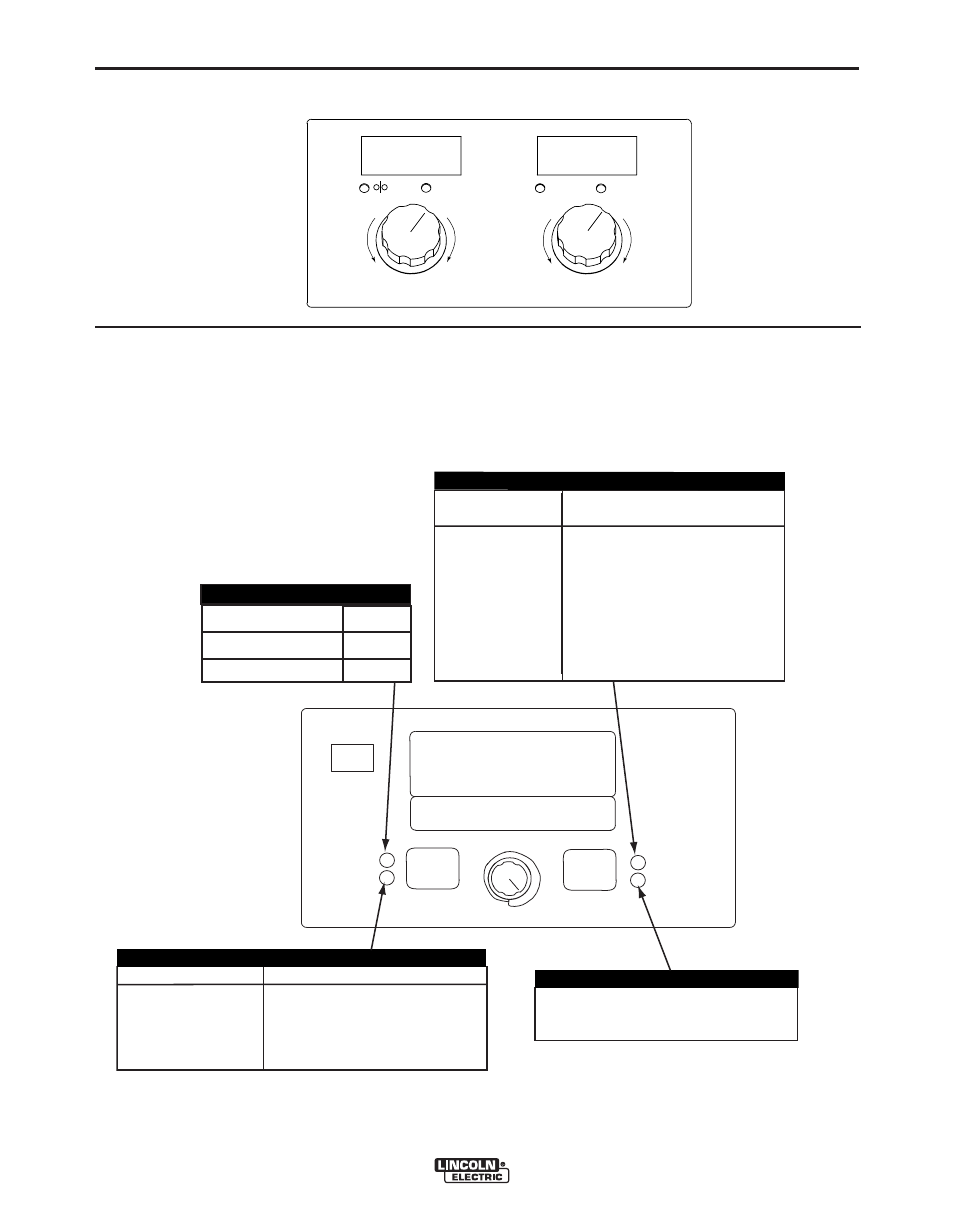

FIGURE B.3
MSP4 OPERATION
SMAW (Stick) Welding Display
OPERATION
