B-9 OPERATION B-9
N O N - S Y N E R G I C G M AW A N D F C AW
WELDING
(See Figure B.4)
Non-synergic GMAW and FCAW welding mimics the
welding controls of traditional welding power sources.
Voltage and WFS are set as independent variables.
Three non-synergic welding modes are available.
Description Mode Used for:
GMAW, Standard CV 5 Best for traditional
MIG welding.
GMAW, Power 40 Specialized GMAW
mode.
FCAW 6 Best for self shield-
ed electrodes like
Innershield™.
POWER FEED™ 25M
K2368-1 Power Wave ® 355M
1 K2202-1 Power Wave ® 455M
K2203-1 Power Wave ® 455M/STT
K2230-1 POWER FEED™ 10M, Bench Model
K2234-1 POWER FEED™ 10M Dual, Bench Model
K2536-1,-2,-3 POWER FEED™ 25M
2 KP1696-xx, Drive Roll Kit, 2 Roll Feeder
KP1697-xx
KP1505-xx, Drive Roll Kit, 4 Roll Feeder
KP1507-xx
3 K1543-xx Digital Control Cable
K2683-xx
4 K1842-xx Weld Power Cable, Lug to Lug
K910-xx Ground Clamp
5 See Magnum MIG gun
Literature
Deluxe Regulator for Mixed
6 K586-1 Shielding Gases
Shielding Gas Hose
6
4 3
2
5
1

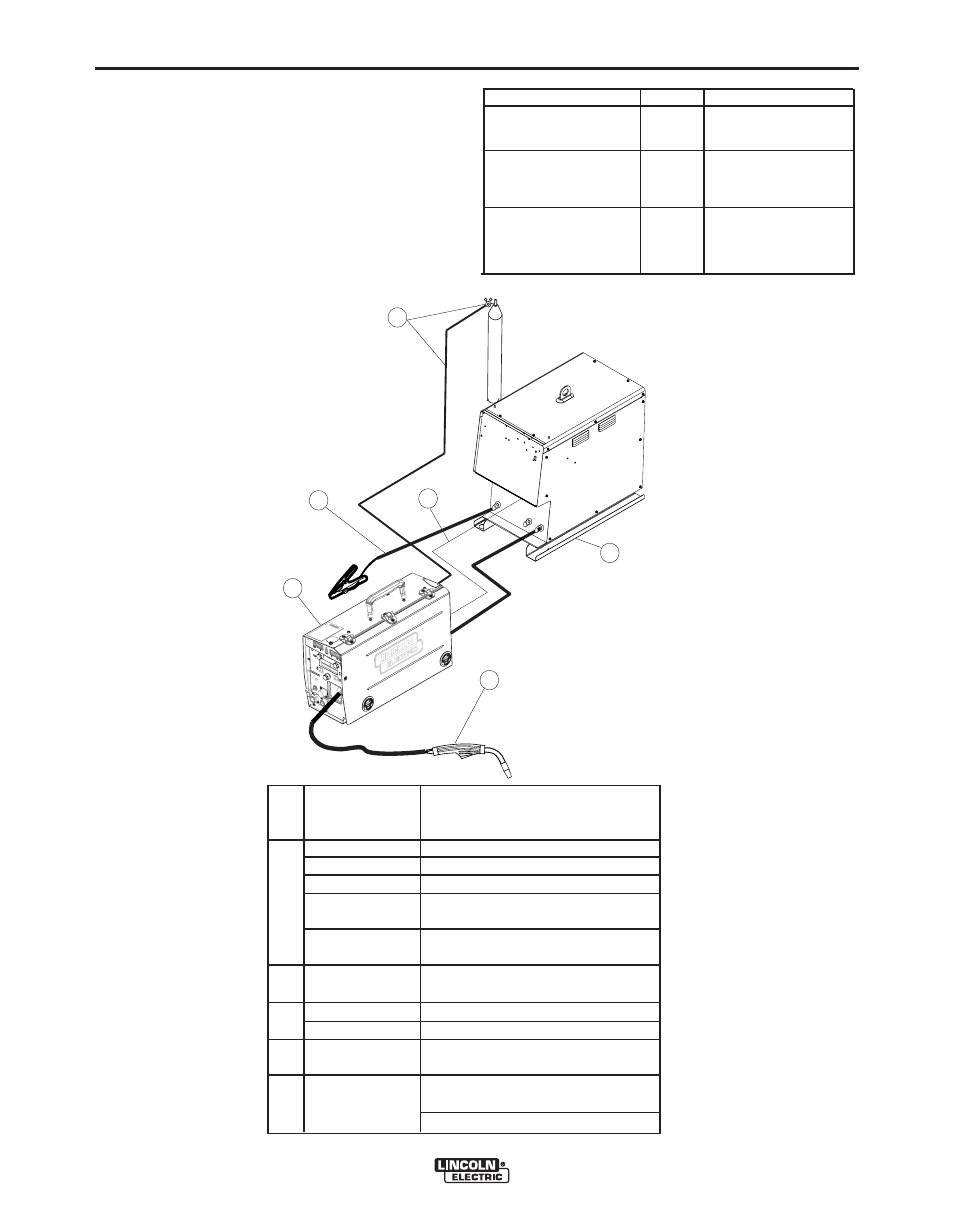

FIGURE B.4
