Rear
connectors

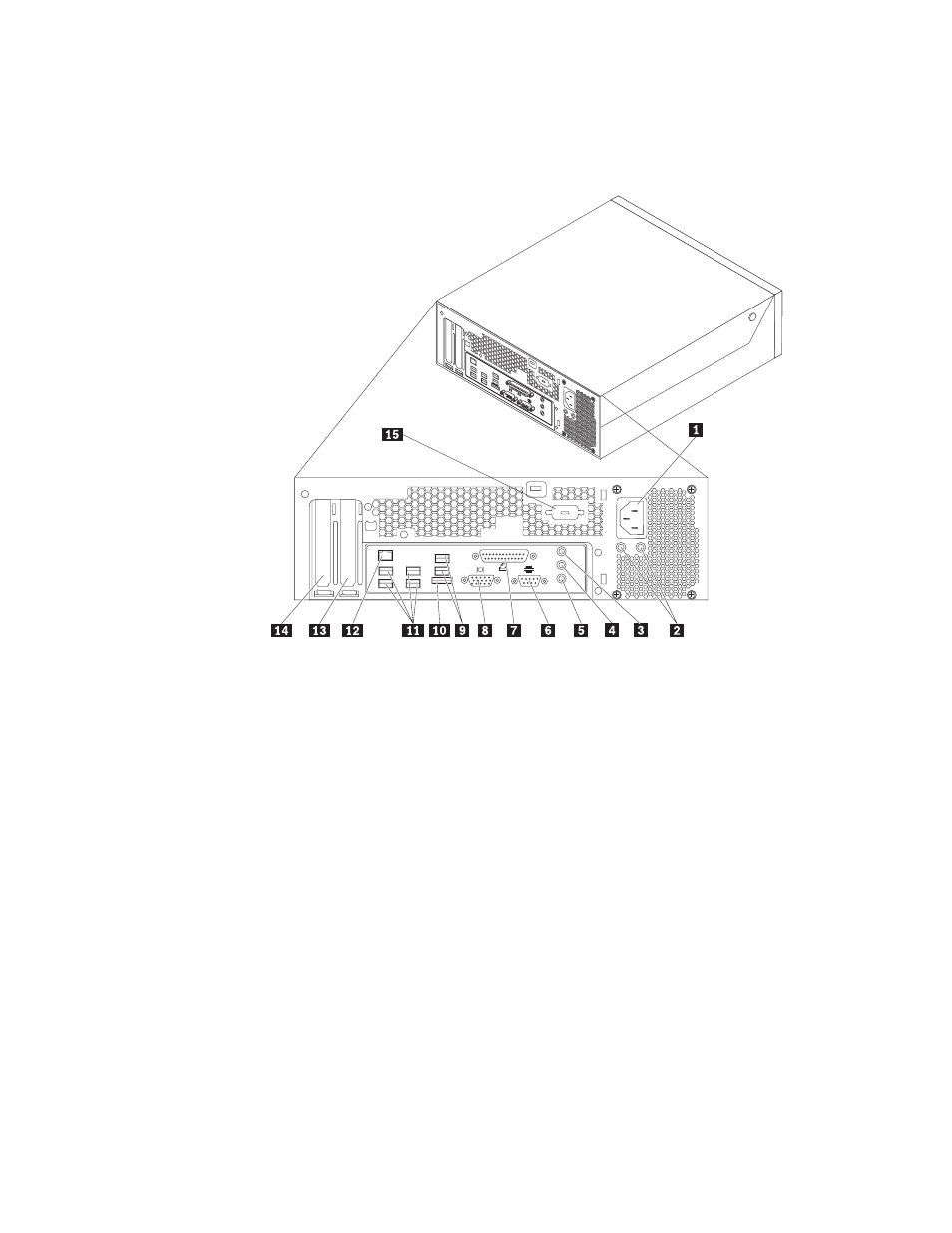

This
illustration
shows
the
location
of
connectors
on
the
rear
of
your
computer.
Some
connectors
on
the
rear
of
your
computer
are
color-coded
to
help
you
determine
where
to
connect
the
cables
on
your
computer.
1
Power
cord
connector
9
USB
connectors
(2)
2
Power-supply-diagnostic
LEDs
(some
models)
10
External
SATA
connector
3
Audio-line-in
connector
11
USB
connectors
(4)
4
Audio-line-out
connector
12
Ethernet
connector
5
Microphone
13
PCI
Express
x16
graphics
adapter
connector
6
Serial
connector
14
PCI
adapter
connector
7
Parallel
connector
15
Serial
connector
(some
models)
8
VGA-monitor
connector
