70
LA-140
LT-82
Design GuideDesign Guide
LA-140
6
8
$WWDFK5DGLDWRUWR:DOO%R[3ODWHXVLQJ7LOW$UP´$µDQG7LOW$UP´%µ8VHWKH7LOW%ROWWRIDVWHQWKHWLOWDUPVWRJHWKHU
ATTENTION: Note the angle measurements on Tilt Arm “B” and verify that the correct angle is selected
before fully tightening Tilt Bolt.

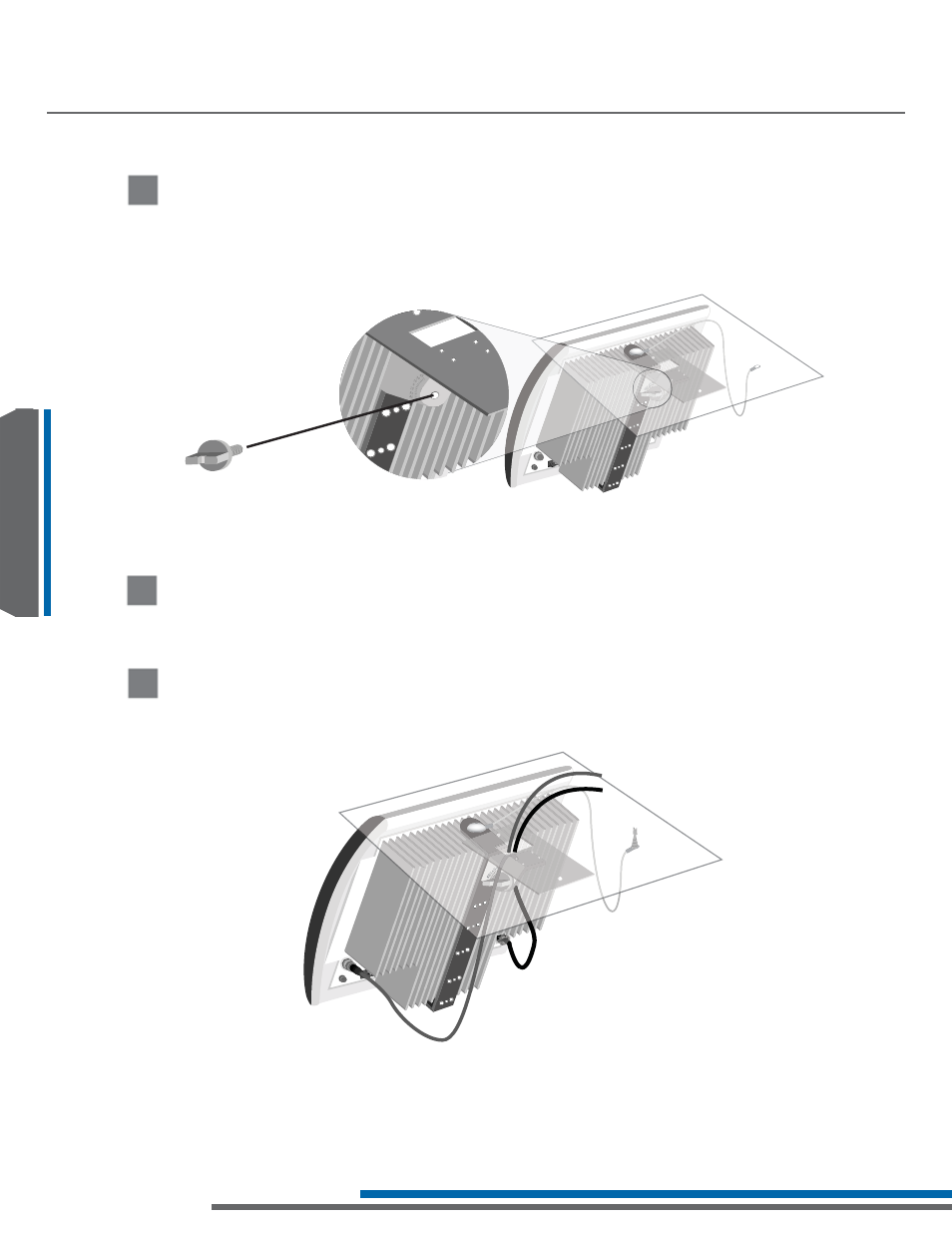

Attach Radiator to Wall Box Plate using Tilt Arm “A” and Tilt Arm “B”
Connect CAT-5 and Coaxial cables to appropriate locations on radiator.
Connect CAT-5 and Coaxial cables
LA-140 – Mounting your Radiator
7
The radiator has a safety cable attached to the top of the swing arm. This cable must be attached to a secure base
to prevent the radiator from falling in the event of a mounting hardware component failing. Possible injury to persons
and damage to the radiator is prevented by securely attaching this cable to a base.
Attach Safety Mounting Cable
