60
LA-140
LT-82
Design GuideDesign Guide
LA-140
4
3XOO&$7DQG&RD[LDOFDEOHVWKURXJKKROHLQ:DOO%R[3ODWH

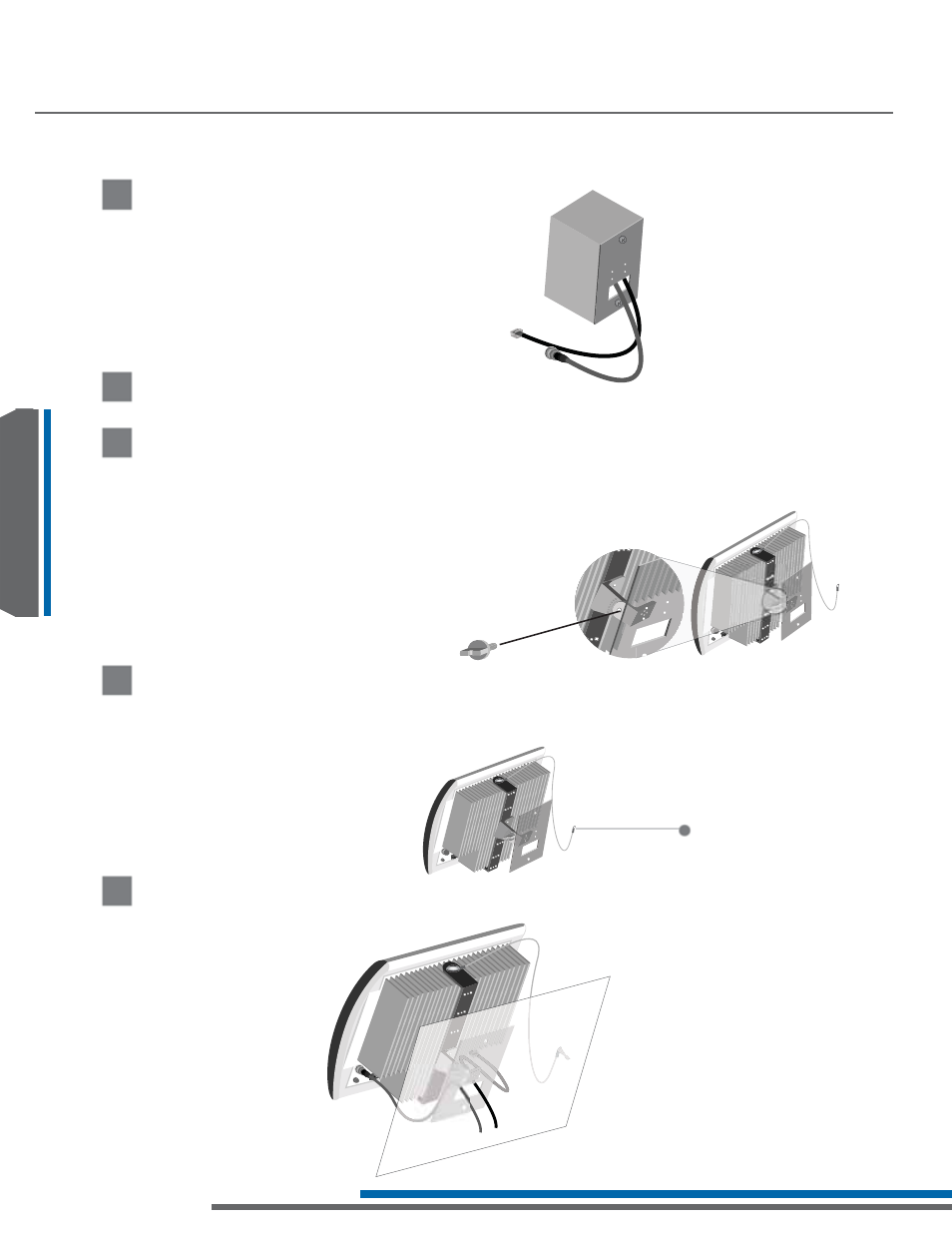

Pull CAT-5 and Coaxial cables through (if necessary)
5
Determine correct angle setting to use for the radiator using the design guide, see page 13 of design guide.
Determine correct angle
6
$WWDFK5DGLDWRUWR:DOO%R[3ODWHXVLQJ7LOW$UP´$µDQG7LOW$UP´%µ8VHWKH7LOW%ROWWRIDVWHQWKHWLOWDUPVWRJHWKHU
Attach Radiator to Wall Box Plate
8
Connect CAT-5 and Coaxial cables to appropriate locations on radiator.
Connect CAT-5 and Coaxial cables
LA-140 – Mounting your Radiator
ATTENTION: Note the angle measurements on Tilt Arm “B” and verify that the correct angle is selected
before fully tightening Tilt Bolt.
7
The radiator has a safety cable attached to the top of the swing arm. This cable must be attached to a secure base to
prevent the radiator from falling in the event of a mounting hardware component failing. Possible injury to persons and
damage to the radiator is prevented by securely attaching this cable to a base.
Attach Safety Mounting Cable
attach to a secure base
