Page 100
86
Service Manual
4039-1XX
Paper Feed Magnet Assembly Removal
1. Remove the print cartridge.
2. Remove the right cover.
3. Remove the system board.
4. Remove the inner EMC shield.

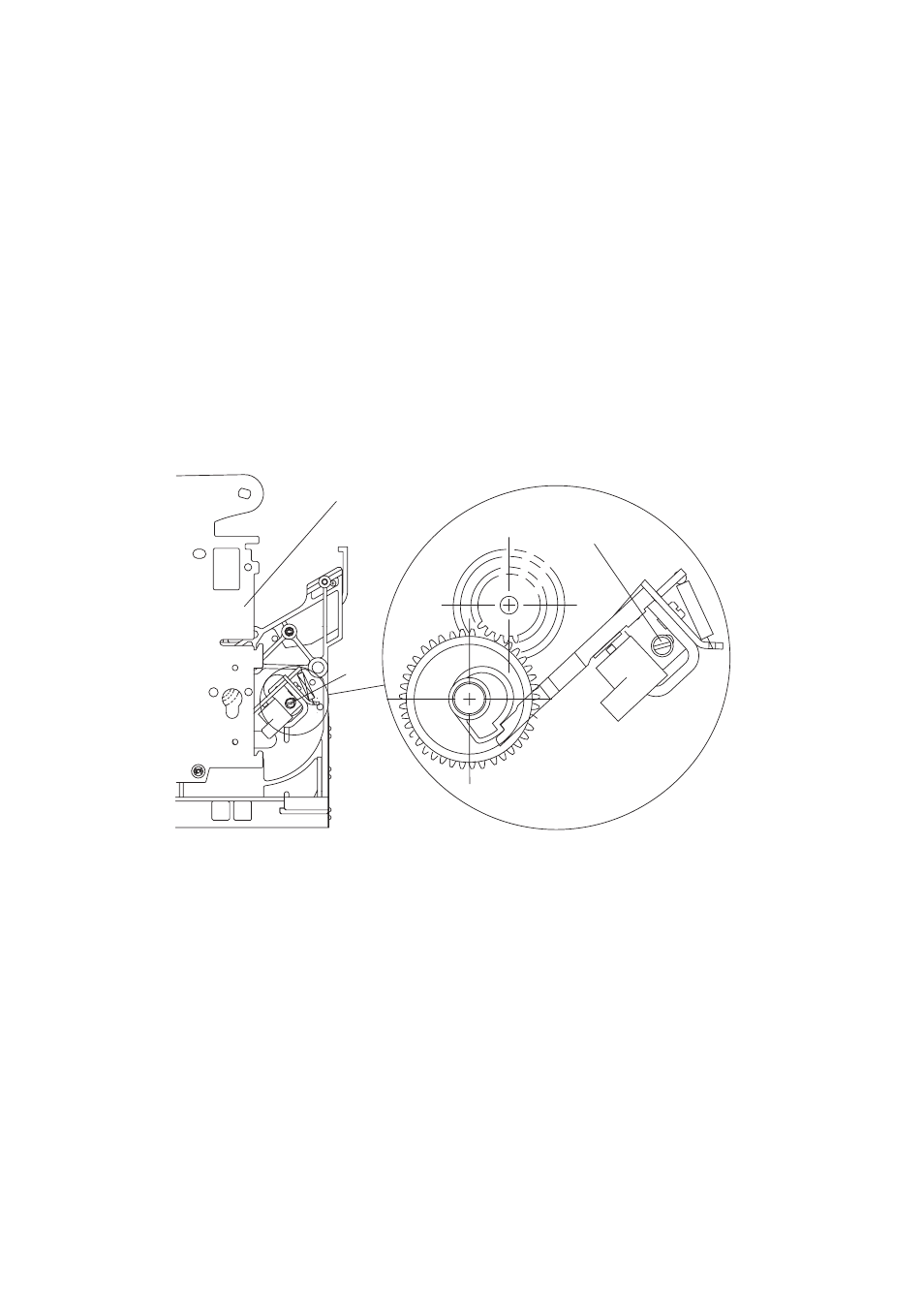

5. Locate the paper feed magnet mounting screw [B] (visible
through the right side frame [A]).
6. Remove the mounting screw [B].
7. Remove the paper feed magnet assembly from the rear (slip the
connector under the right frame).
B
B
A
