2 termination and mounting - large enclosure, Input power connections, 24 vac output power connections – Liebert Universal Monitor User Manual

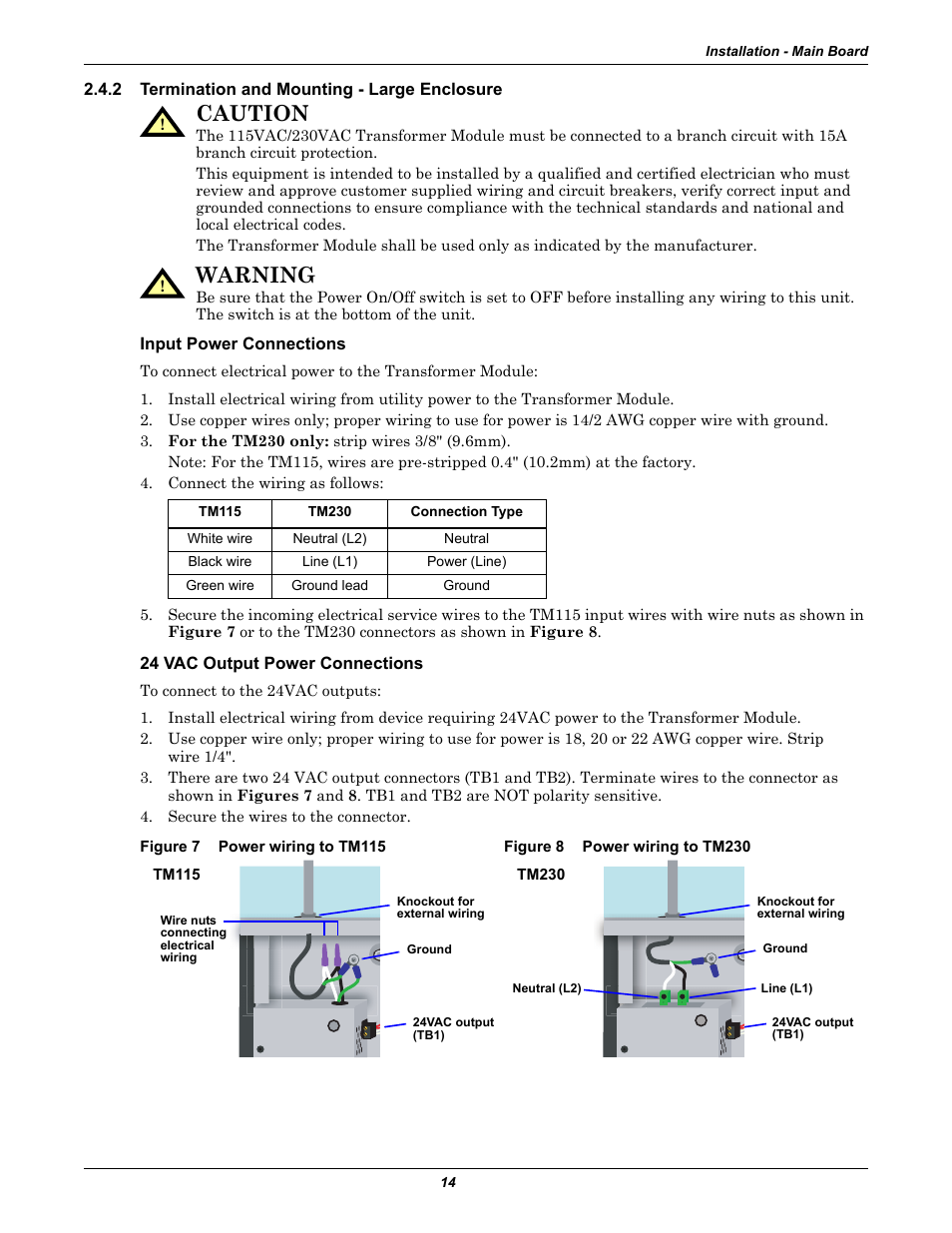

Page 22: Figure 7 power wiring to tm115, Figure 8 power wiring to tm230, Termination and mounting - large enclosure, Figure 7, Power wiring to tm115, Figure 8, Power wiring to tm230

2 termination and mounting - large enclosure, Input power connections, 24 vac output power connections | Figure 7 power wiring to tm115, Figure 8 power wiring to tm230, Termination and mounting - large enclosure, Figure 7, Power wiring to tm115, Figure 8, Power wiring to tm230 | Liebert Universal Monitor User Manual | Page 22 / 144 2 termination and mounting - large enclosure, Input power connections, 24 vac output power connections | Figure 7 power wiring to tm115, Figure 8 power wiring to tm230, Termination and mounting - large enclosure, Figure 7, Power wiring to tm115, Figure 8, Power wiring to tm230 | Liebert Universal Monitor User Manual | Page 22 / 144
