12: Connections and Pinouts
UDS1100 User Guide
72

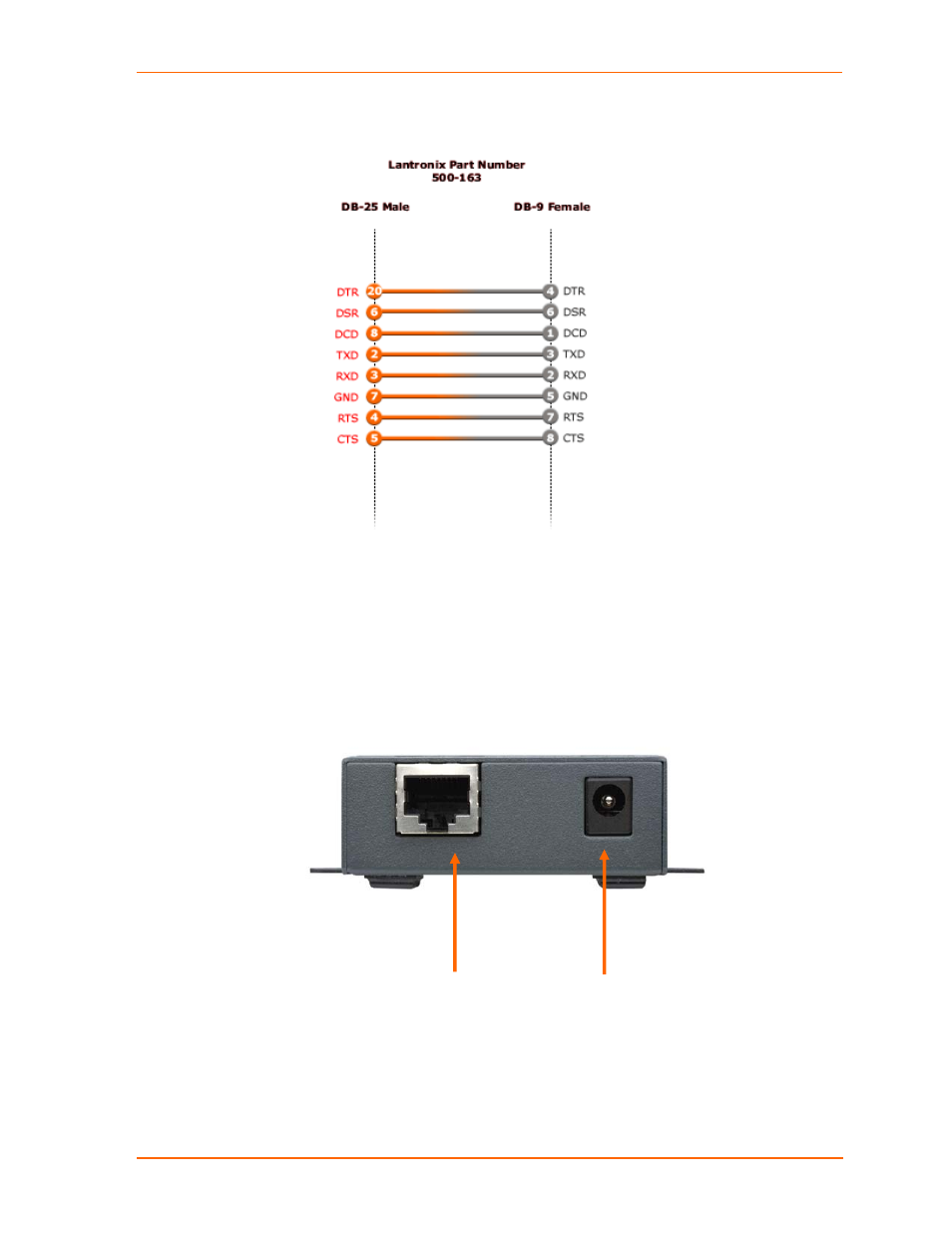

Figure 12-5. Wiring diagram for Lantronix Modem Cable, Part No. 500-163
Network Port
The standard UDS1100 non-POE version unit's back panel contains a power plug
and an RJ45 (10/100) Ethernet port.
The UDS1100-POE version does not have a power plug; it is powered through the
Ethernet interface using 802.3af Power over Ethernet.
Figure 12-6. Network Interface
RJ45 Ethernet Port
Power Plug
