4: Configuration Using Web-Manager
UDS1100 User Guide
31
from the network to the device. The default setting is No.
At Time of Disconnect
Select Yes to clear the output buffer when the network
connection to or from the device is disconnected. The default
setting is No.
3. When you are finished, click the OK button.
4. On the main menu, click Apply Settings.
Connection Settings - TCP
To configure a channel’s TCP settings
:
1. On the main menu, click Connection. The Connection Settings window for the
channel displays.

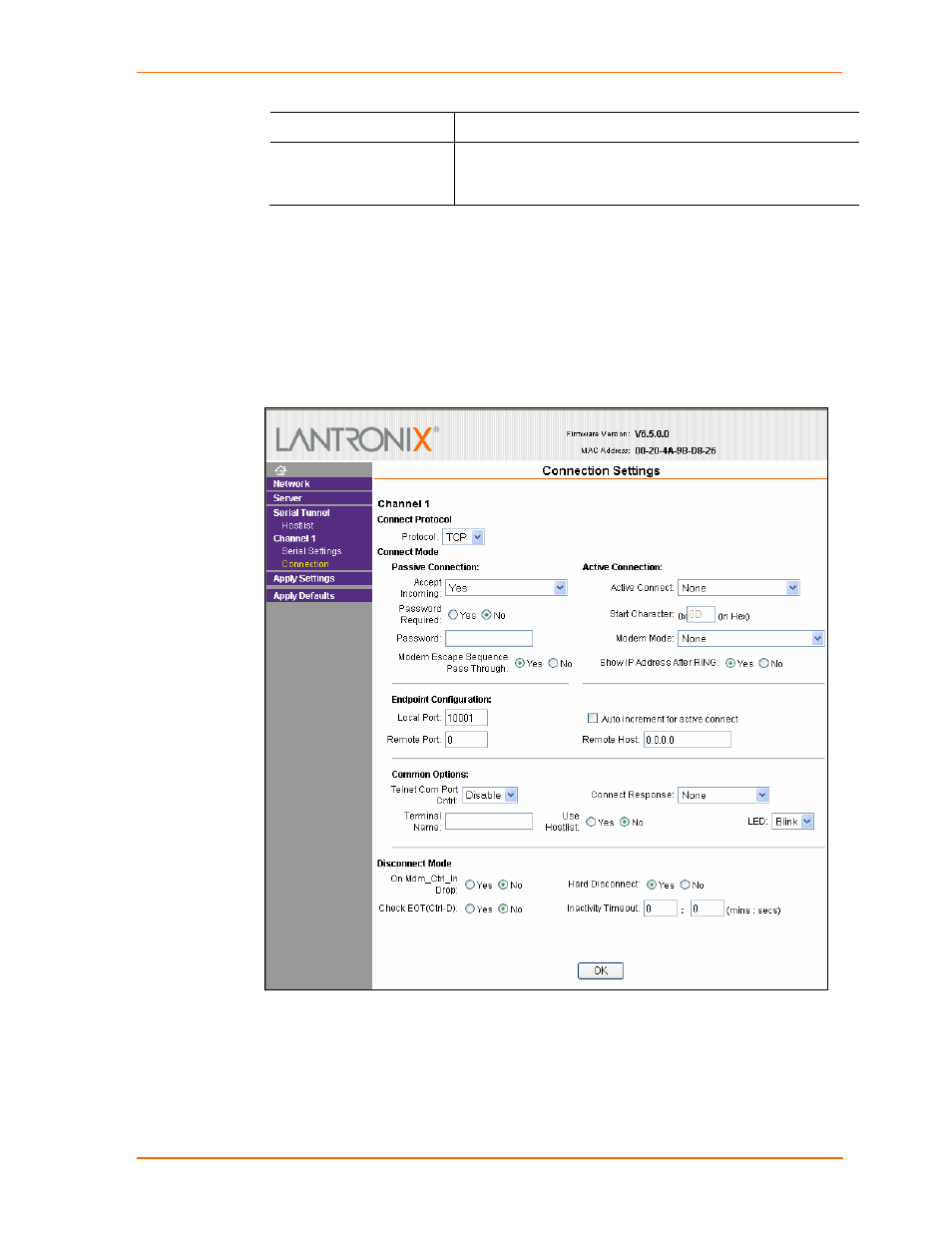

Figure 4-7. TCP Connection Settings
2. In the available fields, enter or modify the following information:
